GMAD::Material Struct Reference

Material class. More...

#include <material.h>

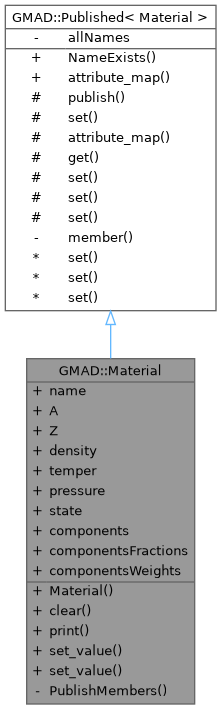

Inheritance diagram for GMAD::Material:

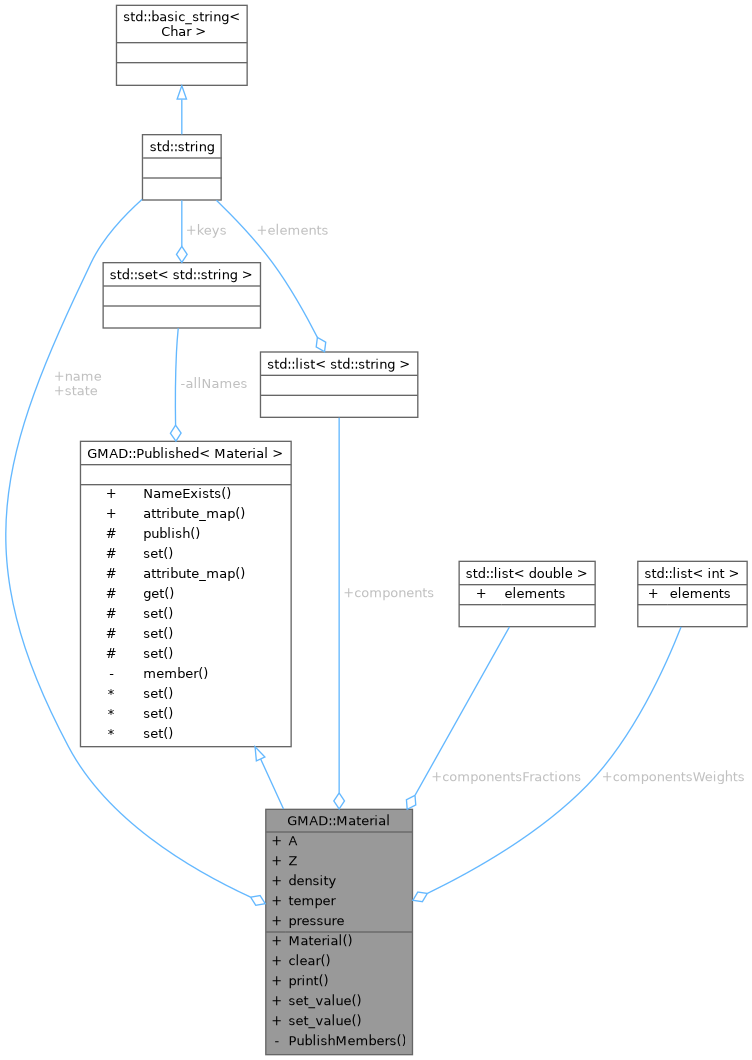

Collaboration diagram for GMAD::Material:

Public Member Functions
	Material ()
	constructor
void	clear ()
	reset
void	print () const
	printout
template<typename T >
void	set_value (const std::string &property, T value, bool bExit=true)
	set methods by property name and value
void	set_value (const std::string &property, Array *value, bool bExit=true)
	Set method for lists.
Public Member Functions inherited from GMAD::Published< Material >
bool	NameExists (const std::string &name) const
Published< Material >::template AttributeMap< T > &	attribute_map () const

Data Fields
std::string	name
	name
double	A
	g*mol^-1
double	Z
double	density
	g*cm-3
double	temper
	Kelvin.
double	pressure
	atm
std::string	state
	"solid", "liquid", or "gas"
std::list< std::string >	components
std::list< double >	componentsFractions
std::list< int >	componentsWeights

Private Member Functions
void	PublishMembers ()
	publish members so these can be looked up from parser

Additional Inherited Members
Protected Types inherited from GMAD::Published< Material >
using	AttributeMap = typename std::unordered_map< std::string, T C::* >
	Define AttributeMap of string and class member pointer.
Protected Member Functions inherited from GMAD::Published< Material >
void	publish (const std::string &name, T C::*mp)
	Make pointer to member from class C and type T with accessible with a name.
void	set (Material *instance, const Material *instance2, const std::string &name)
	Set member with name of class instance to value of second instance.
AttributeMap< T > &	attribute_map () const
	Access method to static map for type T and class C.
T	get (const Material *instance, const std::string &name) const
	Get method for class C.
void	set (Material *instance, const std::string &name, double value)
void	set (Material *instance, const std::string &name, GMAD::Array *const &value)
void	set (Material *instance, const std::string &name, const T &value)

Detailed Description

Material class.

Author

Jochem Snuverink

Definition at line 39 of file material.h.

Constructor & Destructor Documentation

Material()

Material::Material

(

)

constructor

Definition at line 25 of file material.cc.

References clear(), and PublishMembers().

Here is the call graph for this function:

Member Function Documentation

clear()

void Material::clear

(

)

reset

Definition at line 31 of file material.cc.

References A, density, pressure, state, and temper.

Referenced by Material().

Here is the caller graph for this function:

print()

void Material::print

(

)

const

printout

Definition at line 59 of file material.cc.

References A, density, name, pressure, state, and temper.

PublishMembers()

void Material::PublishMembers ( )

private

publish members so these can be looked up from parser

Definition at line 45 of file material.cc.

References A, density, name, pressure, GMAD::Published< Material >::publish(), state, and temper.

Referenced by Material().

Here is the call graph for this function:

Here is the caller graph for this function:

set_value() [1/2]

void Material::set_value	(	const std::string &	property,
		Array *	value,
		bool	bExit = true
	)

Set method for lists.

Definition at line 77 of file material.cc.

References GMAD::Array::set_vector().

Here is the call graph for this function:

set_value() [2/2]

template<typename T >

void GMAD::Material::set_value	(	const std::string &	property,
		T	value,
		bool	bExit = true
	)

set methods by property name and value

Definition at line 72 of file material.h.

References GMAD::Published< Material >::set().

Here is the call graph for this function:

Field Documentation

A

double GMAD::Material::A

g*mol^-1

Definition at line 43 of file material.h.

Referenced by clear(), print(), and PublishMembers().

components

std::list<std::string> GMAD::Material::components

Definition at line 49 of file material.h.

componentsFractions

std::list<double> GMAD::Material::componentsFractions

Definition at line 50 of file material.h.

componentsWeights

std::list<int> GMAD::Material::componentsWeights

Definition at line 51 of file material.h.

density

double GMAD::Material::density

g*cm-3

Definition at line 45 of file material.h.

Referenced by clear(), print(), and PublishMembers().

name

std::string GMAD::Material::name

name

Definition at line 41 of file material.h.

Referenced by print(), and PublishMembers().

pressure

double GMAD::Material::pressure

atm

Definition at line 47 of file material.h.

Referenced by clear(), print(), and PublishMembers().

state

std::string GMAD::Material::state

"solid", "liquid", or "gas"

Definition at line 48 of file material.h.

Referenced by clear(), print(), and PublishMembers().

temper

double GMAD::Material::temper

Kelvin.

Definition at line 46 of file material.h.

Referenced by clear(), print(), and PublishMembers().

Z

double GMAD::Material::Z

Definition at line 44 of file material.h.

---

The documentation for this struct was generated from the following files:

• /__w/bdsim/bdsim/parser/material.h
• /__w/bdsim/bdsim/parser/material.cc
