Representation of arrays used in tokens. More...

#include <array.h>

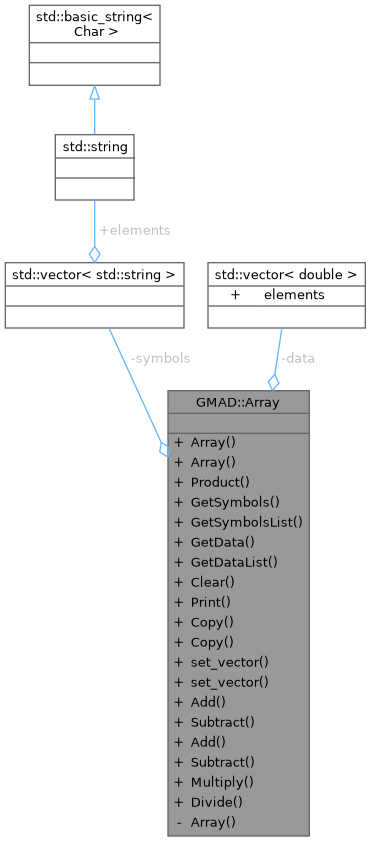

Collaboration diagram for GMAD::Array:

Public Member Functions
	Array ()
	Default Constructor.

	Array (Symtab *)
	Constructor from symbol.

double	Product (Array *a)
	Scalar vector product.

const std::vector< std::string > &	GetSymbols () const
	Access.

std::list< std::string >	GetSymbolsList () const

const std::vector< double > &	GetData () const

std::list< double >	GetDataList () const

void	Clear ()
	Clear data.

void	Print ()
	Print data.

template<template< typename, typename > class Container>
void	Copy (Container< std::string, std::allocator< std::string > > &cpy)
	Copy STL string containers into symbols.

template<typename T , template< typename, typename > class Container>
void	Copy (Container< T, std::allocator< T > > &cpy)
	Copy STL numerical containers into data.

template<template< typename, typename > class Container>
void	set_vector (Container< std::string, std::allocator< std::string > > &dst) const
	Copy symbols into STL string containers.

template<typename T , template< typename, typename > class Container>
void	set_vector (Container< T, std::allocator< T > > &dst) const
	Copy data into STL numerical containers.

Static Public Member Functions
static Array *	Add (Array a1, Array a2)
	Constructor from adding 2 double arrays.

static Array *	Subtract (Array a1, Array a2)
	Constructor from subtracting 2 double arrays.

static Array *	Add (Array *a, double d)
	Constructor from adding an array.

static Array *	Subtract (Array *a, double d)
	Constructor from subtracting an array.

static Array *	Multiply (Array *a, double d)
	Constructor from multiplying an array.

static Array *	Divide (Array *a, double d)
	Constructor from dividing an array.

Private Member Functions
	Array (unsigned int n)
	Helper constructor method, creates data array with size n.

Private Attributes
std::vector< std::string >	symbols
	Representation of string array.

std::vector< double >	data
	Representation of double array.

Friends
class	Symtab
	Symtabs and arrays are kind of interchangeable.

Detailed Description

Representation of arrays used in tokens.

Used for both std::string and double

Definition at line 40 of file array.h.

Constructor & Destructor Documentation

◆ Array() [1/3]

Array::Array ( unsigned int n )

explicitprivate

Helper constructor method, creates data array with size n.

Definition at line 39 of file array.cc.

References data.

◆ Array() [2/3]

Array::Array ( )

Default Constructor.

Definition at line 27 of file array.cc.

Referenced by Add(), Add(), Divide(), Multiply(), Subtract(), and Subtract().

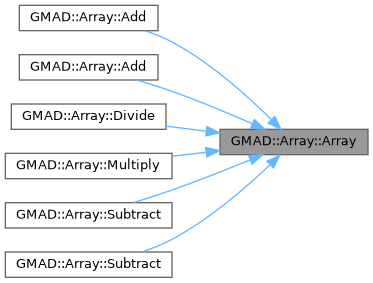

Here is the caller graph for this function:

◆ Array() [3/3]

Array::Array ( Symtab * array )

explicit

Constructor from symbol.

Definition at line 31 of file array.cc.

References GMAD::Symtab::array, and data.

Member Function Documentation

◆ Add() [1/2]

Array * Array::Add	(	Array *	a,
		double	d
	)

static

Constructor from adding an array.

Definition at line 66 of file array.cc.

References Array(), and data.

Here is the call graph for this function:

◆ Add() [2/2]

Array * Array::Add	(	Array *	a1,
		Array *	a2
	)

static

Constructor from adding 2 double arrays.

Definition at line 44 of file array.cc.

References Array(), and data.

Here is the call graph for this function:

◆ Clear()

void Array::Clear ( )

Clear data.

Definition at line 124 of file array.cc.

References data, and symbols.

◆ Copy() [1/2]

template<template< typename, typename > class Container>

void GMAD::Array::Copy ( Container< std::string, std::allocator< std::string > > & cpy )

inline

Copy STL string containers into symbols.

Definition at line 86 of file array.h.

References symbols.

Referenced by GMAD::Parser::FillArray(), and GMAD::Parser::FillString().

Here is the caller graph for this function:

◆ Copy() [2/2]

template<typename T , template< typename, typename > class Container>

void GMAD::Array::Copy ( Container< T, std::allocator< T > > & cpy )

inline

Copy STL numerical containers into data.

Definition at line 94 of file array.h.

References data.

◆ Divide()

Array * Array::Divide	(	Array *	a,
		double	d
	)

static

Constructor from dividing an array.

Definition at line 99 of file array.cc.

References Array(), and data.

Here is the call graph for this function:

◆ GetData()

const std::vector< double > & GMAD::Array::GetData ( ) const

inline

Definition at line 76 of file array.h.

◆ GetDataList()

std::list< double > Array::GetDataList ( ) const

Definition at line 152 of file array.cc.

◆ GetSymbols()

const std::vector< std::string > & GMAD::Array::GetSymbols ( ) const

inline

Access.

Definition at line 74 of file array.h.

References symbols.

◆ GetSymbolsList()

std::list< std::string > Array::GetSymbolsList ( ) const

Definition at line 144 of file array.cc.

◆ Multiply()

Array * Array::Multiply	(	Array *	a,
		double	d
	)

static

Constructor from multiplying an array.

Definition at line 88 of file array.cc.

References Array(), and data.

Here is the call graph for this function:

◆ Print()

void Array::Print ( )

Print data.

Definition at line 130 of file array.cc.

References data, and symbols.

◆ Product()

double Array::Product ( Array * a )

Scalar vector product.

Definition at line 110 of file array.cc.

References data.

◆ set_vector() [1/2]

template<template< typename, typename > class Container>

void GMAD::Array::set_vector ( Container< std::string, std::allocator< std::string > > & dst ) const

inline

Copy symbols into STL string containers.

Definition at line 102 of file array.h.

References symbols.

Referenced by GMAD::CoolingChannel::set_value(), GMAD::PhysicsBiasing::set_value(), and GMAD::Material::set_value().

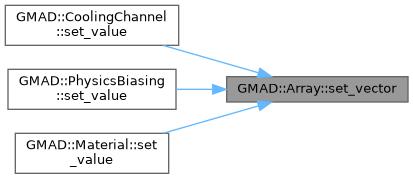

Here is the caller graph for this function:

◆ set_vector() [2/2]

template<typename T , template< typename, typename > class Container>

void GMAD::Array::set_vector ( Container< T, std::allocator< T > > & dst ) const

inline

Copy data into STL numerical containers.

Definition at line 118 of file array.h.

References data.

◆ Subtract() [1/2]

Array * Array::Subtract	(	Array *	a,
		double	d
	)

static

Constructor from subtracting an array.

Definition at line 77 of file array.cc.

References Array(), and data.

Here is the call graph for this function:

◆ Subtract() [2/2]

Array * Array::Subtract	(	Array *	a1,
		Array *	a2
	)

static

Constructor from subtracting 2 double arrays.

Definition at line 55 of file array.cc.

References Array(), and data.

Here is the call graph for this function:

Friends And Related Symbol Documentation

◆ Symtab

friend class Symtab

friend

Symtabs and arrays are kind of interchangeable.

Definition at line 53 of file array.h.

Field Documentation

◆ data

std::vector<double> GMAD::Array::data

private

Representation of double array.

Definition at line 46 of file array.h.

Referenced by Add(), Add(), Array(), Array(), Clear(), Copy(), Divide(), Multiply(), Print(), Product(), GMAD::Symtab::Set(), set_vector(), Subtract(), and Subtract().

◆ symbols

std::vector<std::string> GMAD::Array::symbols

private

Representation of string array.

Definition at line 44 of file array.h.

Referenced by Clear(), Copy(), GetSymbols(), Print(), and set_vector().

The documentation for this class was generated from the following files:

/__w/bdsim/bdsim/parser/array.h
/__w/bdsim/bdsim/parser/array.cc
