GMAD::Published< C > Class Template Reference

Class that provides introspection to its members. More...

#include <published.h>

Collaboration diagram for GMAD::Published< C >:

Public Member Functions
bool	NameExists (const std::string &name) const
template<typename T >
Published< C >::template AttributeMap< T > &	attribute_map () const

Protected Types
template<typename T >
using	AttributeMap = typename std::unordered_map< std::string, T C::* >
	Define AttributeMap of string and class member pointer.

Protected Member Functions
template<typename T >
void	publish (const std::string &name, T C::*mp)
	Make pointer to member from class C and type T with accessible with a name.
void	set (C *instance, const C *instance2, const std::string &name)
	Set member with name of class instance to value of second instance.
template<typename T >
AttributeMap< T > &	attribute_map () const
	Access method to static map for type T and class C.
template<typename T >
T	get (const C *instance, const std::string &name) const
	Get method for class C.
void	set (C *instance, const std::string &name, double value)
void	set (C *instance, const std::string &name, GMAD::Array *const &value)
template<typename T >
void	set (C *instance, const std::string &name, const T &value)

Private Member Functions
template<typename T >
T C::*	member (const std::string &name) const
	Access to member pointer.

Private Attributes
std::set< std::string >	allNames
	A cache of all names defined through publish().

Detailed Description

template<typename C>
class GMAD::Published< C >

Class that provides introspection to its members.

In the parser the keywords in the ASCII files need to be matched to the correct member variable. However, C++ has no introspection ability. This class provides this artificially.

All members need to be added explicitly to a hash table (unordered_map) with the method publish. Note that the name can be different from the actual member name

adapted into a class from http://stackoverflow.com/questions/19557881/convert-string-character-to-class-member-method-in-c

Author

Jochem Snuverink

Definition at line 48 of file published.h.

Member Typedef Documentation

AttributeMap

template<typename C >

template<typename T >

using GMAD::Published< C >::AttributeMap = typename std::unordered_map<std::string, T C::*>

protected

Define AttributeMap of string and class member pointer.

Definition at line 71 of file published.h.

Member Function Documentation

attribute_map()

template<typename C >

template<typename T >

Published< C >::template AttributeMap< T > & GMAD::Published< C >::attribute_map

(

)

const

Definition at line 283 of file published.h.

get()

template<typename C >

template<typename T >

T GMAD::Published< C >::get ( const C *  instance, const std::string &  name  ) const

protected

Get method for class C.

Definition at line 257 of file published.h.

member()

template<typename C >

template<typename T >

T C::* GMAD::Published< C >::member ( const std::string &  name ) const

private

Access to member pointer.

Definition at line 266 of file published.h.

NameExists()

template<typename C >

bool GMAD::Published< C >::NameExists ( const std::string &  name ) const

inline

Definition at line 51 of file published.h.

publish()

template<typename C >

template<typename T >

void GMAD::Published< C >::publish ( const std::string &  name, T C::*  mp  )

protected

Make pointer to member from class C and type T with accessible with a name.

Definition at line 94 of file published.h.

References GMAD::Published< C >::allNames.

set() [1/4]

template<typename C >

void GMAD::Published< C >::set ( C *  instance, const C *  instance2, const std::string &  name  )

protected

Set member with name of class instance to value of second instance.

Definition at line 182 of file published.h.

set() [2/4]

template<typename C >

template<typename T >

void GMAD::Published< C >::set ( C *  instance, const std::string &  name, const T &  value  )

protected

Set member with name of class instance to value. Throws std::runtime_error if not found

Definition at line 145 of file published.h.

set() [3/4]

template<typename C >

void GMAD::Published< C >::set ( C *  instance, const std::string &  name, double  value  )

protected

Set member with name of class instance to value. Throws std::runtime_error if not found

Definition at line 101 of file published.h.

Referenced by GMAD::Parameters::inherit_properties(), GMAD::Element::set(), GMAD::Parameters::set_value(), and GMAD::Element::set_value().

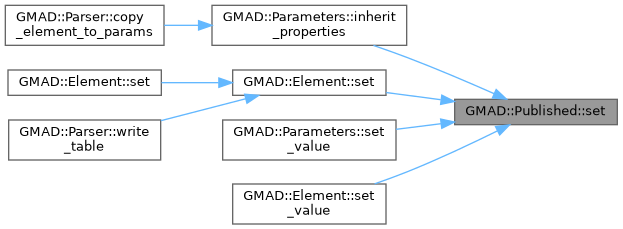

Here is the caller graph for this function:

set() [4/4]

template<typename C >

void GMAD::Published< C >::set ( C *  instance, const std::string &  name, GMAD::Array *const &  value  )

protected

Set member with name of class instance to value. Throws std::runtime_error if not found

Definition at line 157 of file published.h.

Field Documentation

allNames

template<typename C >

std::set<std::string> GMAD::Published< C >::allNames

private

A cache of all names defined through publish().

Definition at line 87 of file published.h.

Referenced by GMAD::Published< C >::publish().

---

The documentation for this class was generated from the following file:

• /__w/bdsim/bdsim/parser/published.h
