GMAD::Scorer Class Reference

Scorer class for parser. More...

#include <scorer.h>

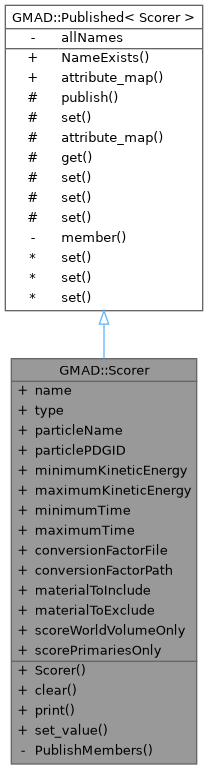

Inheritance diagram for GMAD::Scorer:

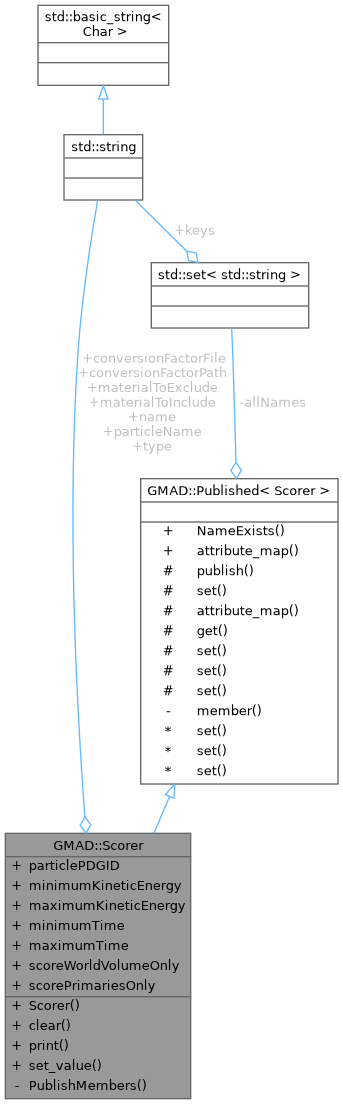

Collaboration diagram for GMAD::Scorer:

Public Member Functions
	Scorer ()
	Constructor.
void	clear ()
	Reset.
void	print () const
	Print some properties.
template<typename T >
void	set_value (std::string property, T value, bool bExit=true)
	Set methods by property name and value.
Public Member Functions inherited from GMAD::Published< Scorer >
bool	NameExists (const std::string &name) const
Published< Scorer >::template AttributeMap< T > &	attribute_map () const

Data Fields
std::string	name
	Name.
std::string	type
	Type of the scorer, ie forumula.
std::string	particleName
	Particle name as a string.
int	particlePDGID
	PDG ID code for particle.
double	minimumKineticEnergy
double	maximumKineticEnergy
double	minimumTime
double	maximumTime
std::string	conversionFactorFile
std::string	conversionFactorPath
std::string	materialToInclude
std::string	materialToExclude
bool	scoreWorldVolumeOnly
bool	scorePrimariesOnly

Private Member Functions
void	PublishMembers ()
	publish members

Additional Inherited Members
Protected Types inherited from GMAD::Published< Scorer >
using	AttributeMap = typename std::unordered_map< std::string, T C::* >
	Define AttributeMap of string and class member pointer.
Protected Member Functions inherited from GMAD::Published< Scorer >
void	publish (const std::string &name, T C::*mp)
	Make pointer to member from class C and type T with accessible with a name.
void	set (Scorer *instance, const Scorer *instance2, const std::string &name)
	Set member with name of class instance to value of second instance.
AttributeMap< T > &	attribute_map () const
	Access method to static map for type T and class C.
T	get (const Scorer *instance, const std::string &name) const
	Get method for class C.
void	set (Scorer *instance, const std::string &name, double value)
void	set (Scorer *instance, const std::string &name, GMAD::Array *const &value)
void	set (Scorer *instance, const std::string &name, const T &value)

Detailed Description

Scorer class for parser.

Author

Laurie Nevay

Definition at line 36 of file scorer.h.

Constructor & Destructor Documentation

Scorer()

Scorer::Scorer

(

)

Constructor.

Definition at line 23 of file scorer.cc.

References clear(), and PublishMembers().

Here is the call graph for this function:

Member Function Documentation

clear()

void Scorer::clear

(

)

Reset.

Definition at line 29 of file scorer.cc.

References name, particleName, particlePDGID, and type.

Referenced by Scorer().

Here is the caller graph for this function:

print()

void Scorer::print

(

)

const

Print some properties.

Definition at line 64 of file scorer.cc.

References name, particleName, particlePDGID, and type.

PublishMembers()

void Scorer::PublishMembers ( )

private

publish members

Definition at line 46 of file scorer.cc.

References name, particleName, particlePDGID, GMAD::Published< Scorer >::publish(), and type.

Referenced by Scorer().

Here is the call graph for this function:

Here is the caller graph for this function:

set_value()

template<typename T >

void GMAD::Scorer::set_value	(	std::string	property,
		T	value,
		bool	bExit = true
	)

Set methods by property name and value.

Definition at line 70 of file scorer.h.

References GMAD::Published< Scorer >::set().

Here is the call graph for this function:

Field Documentation

conversionFactorFile

std::string GMAD::Scorer::conversionFactorFile

Definition at line 47 of file scorer.h.

conversionFactorPath

std::string GMAD::Scorer::conversionFactorPath

Definition at line 48 of file scorer.h.

materialToExclude

std::string GMAD::Scorer::materialToExclude

Definition at line 50 of file scorer.h.

materialToInclude

std::string GMAD::Scorer::materialToInclude

Definition at line 49 of file scorer.h.

maximumKineticEnergy

double GMAD::Scorer::maximumKineticEnergy

Definition at line 44 of file scorer.h.

maximumTime

double GMAD::Scorer::maximumTime

Definition at line 46 of file scorer.h.

minimumKineticEnergy

double GMAD::Scorer::minimumKineticEnergy

Definition at line 43 of file scorer.h.

minimumTime

double GMAD::Scorer::minimumTime

Definition at line 45 of file scorer.h.

name

std::string GMAD::Scorer::name

Name.

Definition at line 39 of file scorer.h.

Referenced by BDSScorerInfo::BDSScorerInfo(), clear(), print(), and PublishMembers().

particleName

std::string GMAD::Scorer::particleName

Particle name as a string.

Definition at line 41 of file scorer.h.

Referenced by BDSScorerInfo::BDSScorerInfo(), clear(), print(), and PublishMembers().

particlePDGID

int GMAD::Scorer::particlePDGID

PDG ID code for particle.

Definition at line 42 of file scorer.h.

Referenced by BDSScorerInfo::BDSScorerInfo(), clear(), print(), and PublishMembers().

scorePrimariesOnly

bool GMAD::Scorer::scorePrimariesOnly

Definition at line 52 of file scorer.h.

scoreWorldVolumeOnly

bool GMAD::Scorer::scoreWorldVolumeOnly

Definition at line 51 of file scorer.h.

type

std::string GMAD::Scorer::type

Type of the scorer, ie forumula.

Definition at line 40 of file scorer.h.

Referenced by BDSScorerInfo::BDSScorerInfo(), clear(), print(), and PublishMembers().

---

The documentation for this class was generated from the following files:

• /__w/bdsim/bdsim/parser/scorer.h
• /__w/bdsim/bdsim/parser/scorer.cc
