GMAD::NewColour Class Reference

Colour definition for parser. More...

#include <newcolour.h>

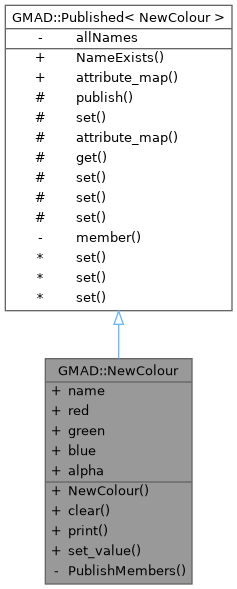

Inheritance diagram for GMAD::NewColour:

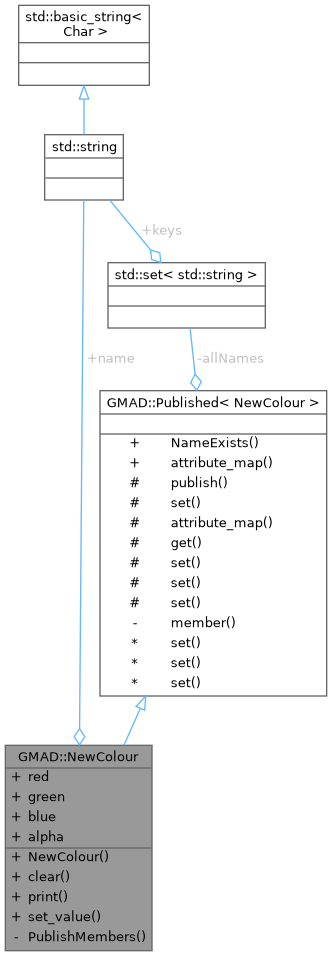

Collaboration diagram for GMAD::NewColour:

Public Member Functions
	NewColour ()
	Constructor.
void	clear ()
	Reset.
void	print () const
	Print some properties.
template<typename T >
void	set_value (std::string property, T value, bool bExit=true)
	Set methods by property name and value.
Public Member Functions inherited from GMAD::Published< NewColour >
bool	NameExists (const std::string &name) const
Published< NewColour >::template AttributeMap< T > &	attribute_map () const

Data Fields
std::string	name
double	red
double	green
double	blue
double	alpha

Private Member Functions
void	PublishMembers ()
	publish members

Additional Inherited Members
Protected Types inherited from GMAD::Published< NewColour >
using	AttributeMap = typename std::unordered_map< std::string, T C::* >
	Define AttributeMap of string and class member pointer.
Protected Member Functions inherited from GMAD::Published< NewColour >
void	publish (const std::string &name, T C::*mp)
	Make pointer to member from class C and type T with accessible with a name.
void	set (NewColour *instance, const NewColour *instance2, const std::string &name)
	Set member with name of class instance to value of second instance.
AttributeMap< T > &	attribute_map () const
	Access method to static map for type T and class C.
T	get (const NewColour *instance, const std::string &name) const
	Get method for class C.
void	set (NewColour *instance, const std::string &name, double value)
void	set (NewColour *instance, const std::string &name, GMAD::Array *const &value)
void	set (NewColour *instance, const std::string &name, const T &value)

Detailed Description

Colour definition for parser.

This is called "newcolour" instead of colour to avoid the conflict with Element::colour for the parser.

Author

Laurie Nevay

Definition at line 39 of file newcolour.h.

Constructor & Destructor Documentation

NewColour()

NewColour::NewColour

(

)

Constructor.

Definition at line 23 of file newcolour.cc.

References clear(), and PublishMembers().

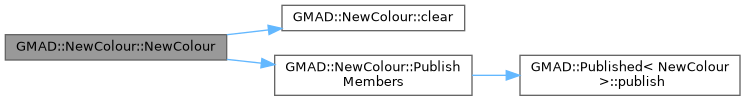

Here is the call graph for this function:

Member Function Documentation

clear()

void NewColour::clear

(

)

Reset.

Definition at line 29 of file newcolour.cc.

Referenced by NewColour().

Here is the caller graph for this function:

print()

void NewColour::print

(

)

const

Print some properties.

Definition at line 47 of file newcolour.cc.

PublishMembers()

void NewColour::PublishMembers ( )

private

publish members

Definition at line 38 of file newcolour.cc.

References GMAD::Published< NewColour >::publish().

Referenced by NewColour().

Here is the call graph for this function:

Here is the caller graph for this function:

set_value()

template<typename T >

void GMAD::NewColour::set_value	(	std::string	property,
		T	value,
		bool	bExit = true
	)

Set methods by property name and value.

Definition at line 64 of file newcolour.h.

References GMAD::Published< NewColour >::set().

Here is the call graph for this function:

Field Documentation

alpha

double GMAD::NewColour::alpha

Definition at line 46 of file newcolour.h.

blue

double GMAD::NewColour::blue

Definition at line 45 of file newcolour.h.

green

double GMAD::NewColour::green

Definition at line 44 of file newcolour.h.

name

std::string GMAD::NewColour::name

Definition at line 42 of file newcolour.h.

red

double GMAD::NewColour::red

Definition at line 43 of file newcolour.h.

---

The documentation for this class was generated from the following files:

• /__w/bdsim/bdsim/parser/newcolour.h
• /__w/bdsim/bdsim/parser/newcolour.cc
