Interface for BDSIM electro-magnetic fields that may or may not be local. More...

#include <BDSFieldEM.hh>

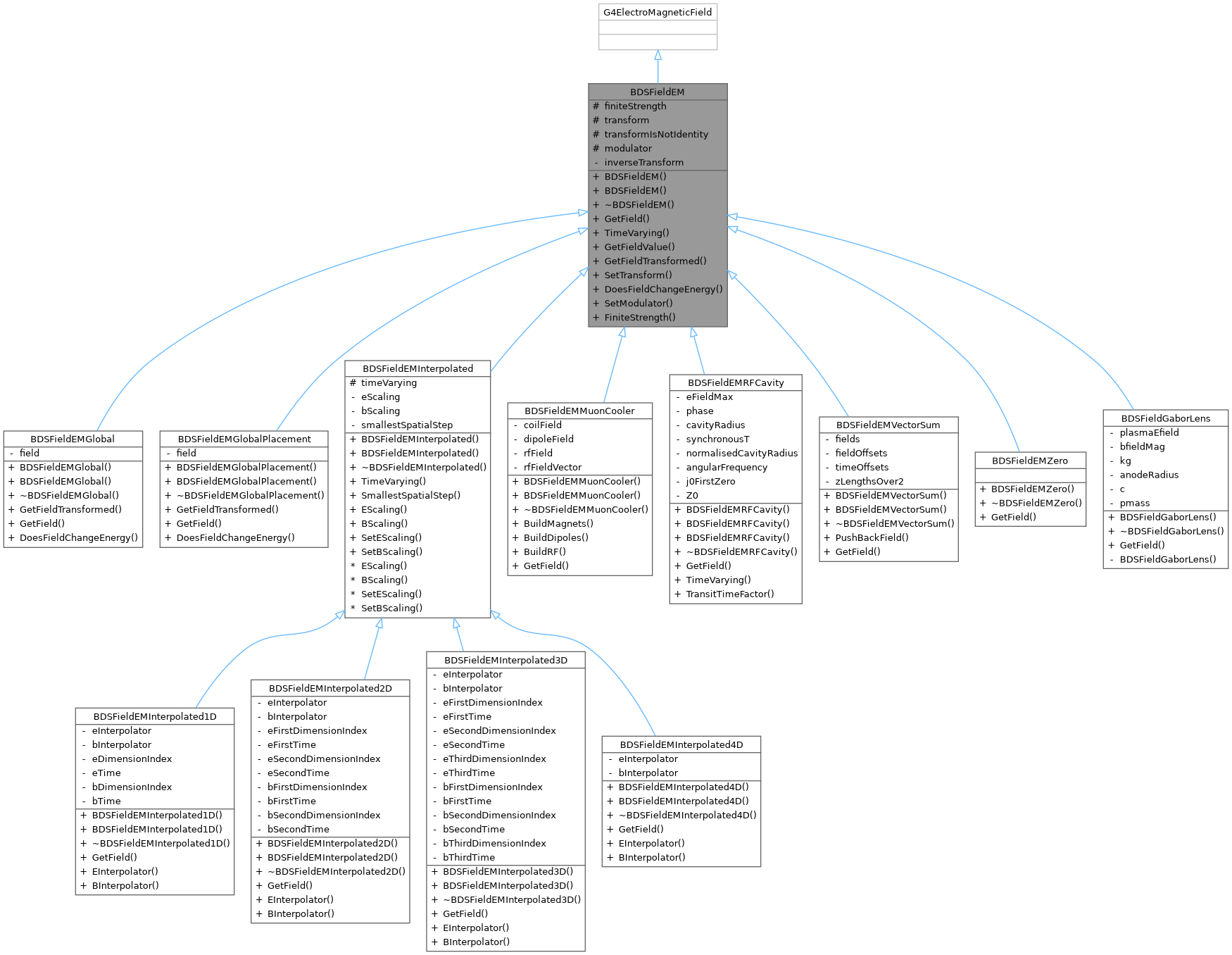

Inheritance diagram for BDSFieldEM:

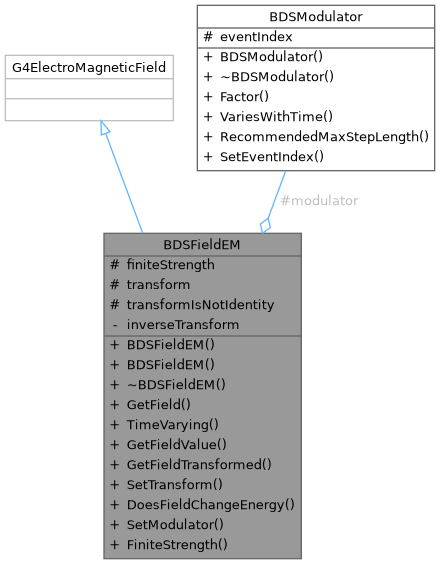

Collaboration diagram for BDSFieldEM:

Public Member Functions
	BDSFieldEM ()

	BDSFieldEM (G4Transform3D transformIn)

virtual std::pair< G4ThreeVector, G4ThreeVector >	GetField (const G4ThreeVector &position, const G4double t=0) const =0

virtual G4bool	TimeVarying () const

virtual void	GetFieldValue (const G4double point[4], G4double *field) const

virtual std::pair< G4ThreeVector, G4ThreeVector >	GetFieldTransformed (const G4ThreeVector &position, const G4double t) const
	Get the field value after applying transform for local offset.

virtual void	SetTransform (const G4Transform3D &transformIn)

virtual G4bool	DoesFieldChangeEnergy () const
	Required overload by Geant4.

void	SetModulator (BDSModulator *modulatorIn)
	Set the optional modulator.

G4bool	FiniteStrength () const
	Accessor.

Protected Attributes
G4bool	finiteStrength
	Flag to cache whether finite nor not.

G4Transform3D	transform
	Transform to apply for the field relative to the local coordinates of the geometry.

G4bool	transformIsNotIdentity
	Cache of whether to use transform at all.

BDSModulator *	modulator
	Optional modulator;.

Private Attributes
G4Transform3D	inverseTransform
	The complimentary transform used to initially rotate the point of query.

Detailed Description

Interface for BDSIM electro-magnetic fields that may or may not be local.

Defines abstract interface for all derived electro-magnetic fields. More common to use G4ThreeVectors than arrays so provides common functionality.

Author: Laurie Nevay

Definition at line 39 of file BDSFieldEM.hh.

Constructor & Destructor Documentation

◆ BDSFieldEM() [1/2]

BDSFieldEM::BDSFieldEM ( )

Constructor takes transform in, which is inverted and applied to positions before querying the 'pure' derived field object. This allows local offset, translations, reflections and scalings to be applied if required - ie for misalignment from the local coordinates.

Definition at line 27 of file BDSFieldEM.cc.

◆ BDSFieldEM() [2/2]

BDSFieldEM::BDSFieldEM ( G4Transform3D transformIn )

explicit

Definition at line 35 of file BDSFieldEM.cc.

◆ ~BDSFieldEM()

virtual BDSFieldEM::~BDSFieldEM ( )

inlinevirtual

Definition at line 48 of file BDSFieldEM.hh.

Member Function Documentation

◆ DoesFieldChangeEnergy()

virtual G4bool BDSFieldEM::DoesFieldChangeEnergy ( ) const

inlinevirtual

Required overload by Geant4.

Reimplemented in BDSFieldEMGlobal, and BDSFieldEMGlobalPlacement.

Definition at line 78 of file BDSFieldEM.hh.

◆ FiniteStrength()

G4bool BDSFieldEM::FiniteStrength ( ) const

inline

Accessor.

Definition at line 84 of file BDSFieldEM.hh.

References finiteStrength.

◆ GetField()

virtual std::pair< G4ThreeVector, G4ThreeVector > BDSFieldEM::GetField	(	const G4ThreeVector &	position,
		const G4double	t = `0`
	)		const

pure virtual

Get the field - local coordinates. First G4ThreeVector is B field, second is E Field x,y,z respectively.

Implemented in BDSFieldEMZero, BDSFieldEMGlobal, BDSFieldEMGlobalPlacement, BDSFieldEMMuonCooler, BDSFieldEMRFCavity, BDSFieldGaborLens, BDSFieldEMInterpolated1D, BDSFieldEMInterpolated2D, BDSFieldEMInterpolated3D, BDSFieldEMInterpolated4D, and BDSFieldEMVectorSum.

Referenced by BDSFieldEMMuonCooler::GetField(), and GetFieldTransformed().

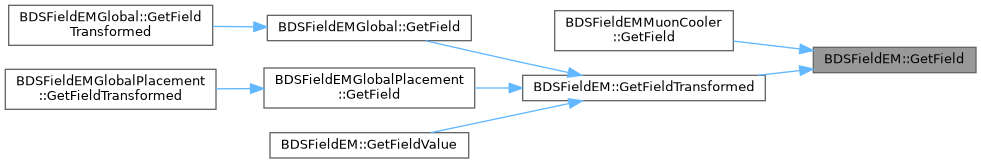

Here is the caller graph for this function:

◆ GetFieldTransformed()

std::pair< G4ThreeVector, G4ThreeVector > BDSFieldEM::GetFieldTransformed	(	const G4ThreeVector &	position,
		const G4double	t
	)		const

virtual

Get the field value after applying transform for local offset.

Reimplemented in BDSFieldEMGlobal, and BDSFieldEMGlobalPlacement.

Definition at line 43 of file BDSFieldEM.cc.

References BDSModulator::Factor(), finiteStrength, GetField(), modulator, transform, and transformIsNotIdentity.

Referenced by BDSFieldEMGlobal::GetField(), BDSFieldEMGlobalPlacement::GetField(), and GetFieldValue().

Here is the call graph for this function:

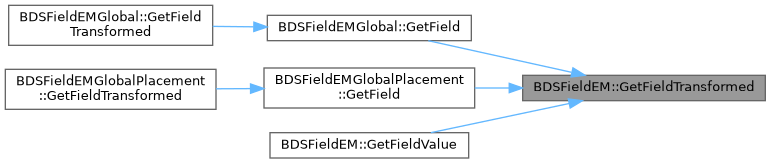

Here is the caller graph for this function:

◆ GetFieldValue()

void BDSFieldEM::GetFieldValue	(	const G4double	point[4],
		G4double *	field
	)		const

virtual

Implement interface to this class's GetField to fulfill G4ElectroMagneticField inheritance and allow a BDSFieldEM instance to be passed around in the field factory even if it's not wrapped in a BDSFieldGlobal instance and is in fact in local coordinates.

Definition at line 75 of file BDSFieldEM.cc.

References GetFieldTransformed().

Here is the call graph for this function:

◆ SetModulator()

void BDSFieldEM::SetModulator ( BDSModulator * modulatorIn )

inline

Set the optional modulator.

Definition at line 81 of file BDSFieldEM.hh.

References modulator.

Referenced by BDSFieldFactory::CreateFieldEM().

Here is the caller graph for this function:

◆ SetTransform()

void BDSFieldEM::SetTransform ( const G4Transform3D & transformIn )

virtual

Set the transform applied before evaluating the field. This can be used to account for any difference between the field coordinate system and the coordinate system of the geometry. Ie an offset aperture. This is a public interface to allow the transform to be set after construction so that derived classes don't need modified constructors.

Definition at line 87 of file BDSFieldEM.cc.

References inverseTransform, transform, and transformIsNotIdentity.

Referenced by BDSFieldFactory::CreateFieldEM().

Here is the caller graph for this function:

◆ TimeVarying()

virtual G4bool BDSFieldEM::TimeVarying ( ) const

inlinevirtual

Each derived class should override this if needs be. Used to warn about time modulation with a time-varying field.

Reimplemented in BDSFieldEMInterpolated, and BDSFieldEMRFCavity.

Definition at line 57 of file BDSFieldEM.hh.

Referenced by BDSFieldFactory::CreateFieldEM().

Here is the caller graph for this function:

Field Documentation

◆ finiteStrength

G4bool BDSFieldEM::finiteStrength

protected

Flag to cache whether finite nor not.

Definition at line 87 of file BDSFieldEM.hh.

Referenced by FiniteStrength(), GetFieldTransformed(), BDSFieldEMGlobal::GetFieldTransformed(), and BDSFieldEMGlobalPlacement::GetFieldTransformed().

◆ inverseTransform

G4Transform3D BDSFieldEM::inverseTransform

private

The complimentary transform used to initially rotate the point of query.

Definition at line 97 of file BDSFieldEM.hh.

Referenced by SetTransform().

◆ modulator

BDSModulator* BDSFieldEM::modulator

protected

Optional modulator;.

Definition at line 93 of file BDSFieldEM.hh.

Referenced by GetFieldTransformed(), and SetModulator().

◆ transform

G4Transform3D BDSFieldEM::transform

protected

Transform to apply for the field relative to the local coordinates of the geometry.

Definition at line 90 of file BDSFieldEM.hh.

Referenced by GetFieldTransformed(), and SetTransform().

◆ transformIsNotIdentity

G4bool BDSFieldEM::transformIsNotIdentity

protected

Cache of whether to use transform at all.

Definition at line 92 of file BDSFieldEM.hh.

Referenced by GetFieldTransformed(), and SetTransform().

The documentation for this class was generated from the following files:

/__w/bdsim/bdsim/include/BDSFieldEM.hh
/__w/bdsim/bdsim/src/BDSFieldEM.cc
