BDSFieldEMInterpolated Class Reference

Class to provide scaling and a base class pointer for interpolator fields. More...

#include <BDSFieldEMInterpolated.hh>

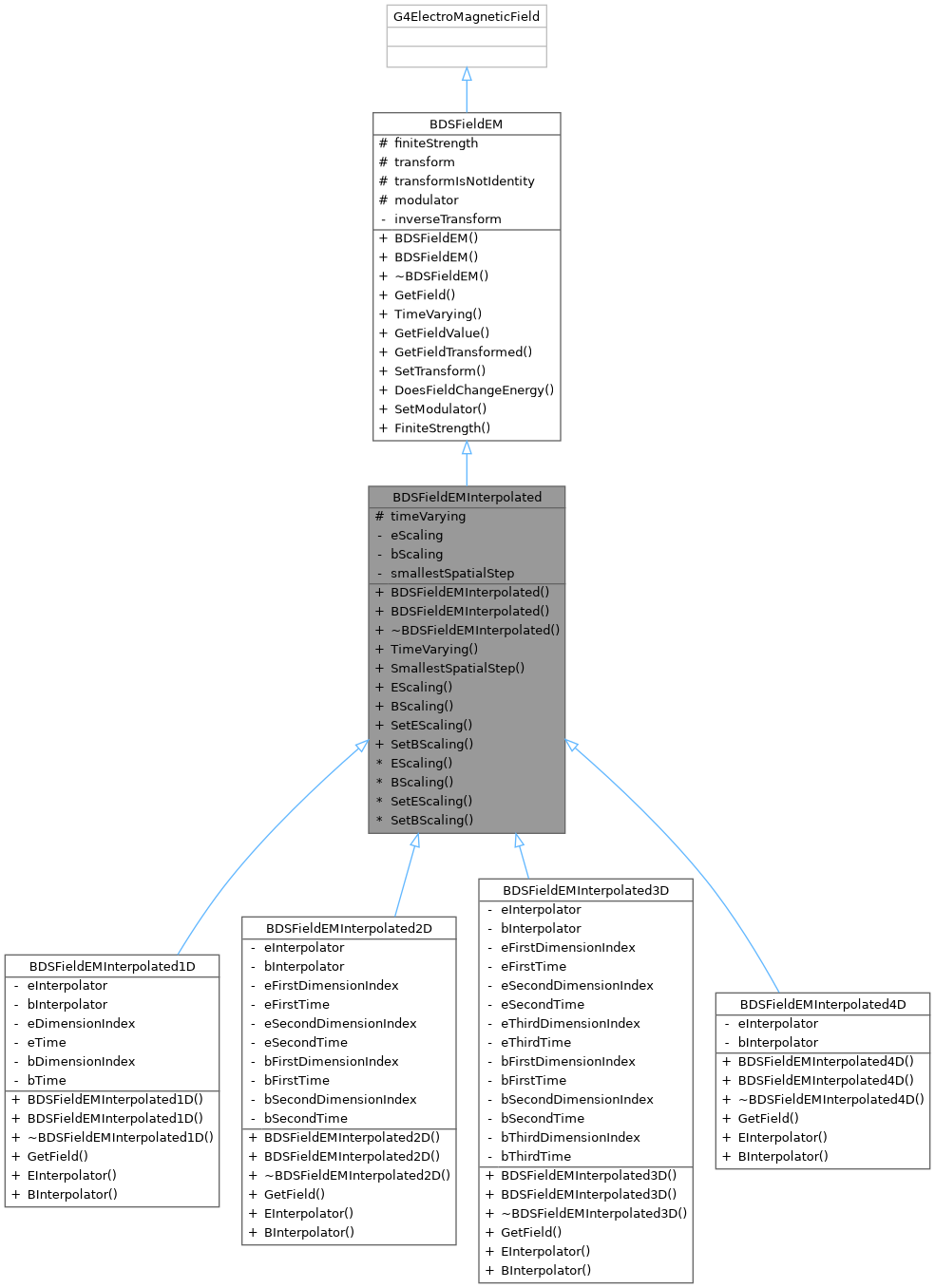

Inheritance diagram for BDSFieldEMInterpolated:

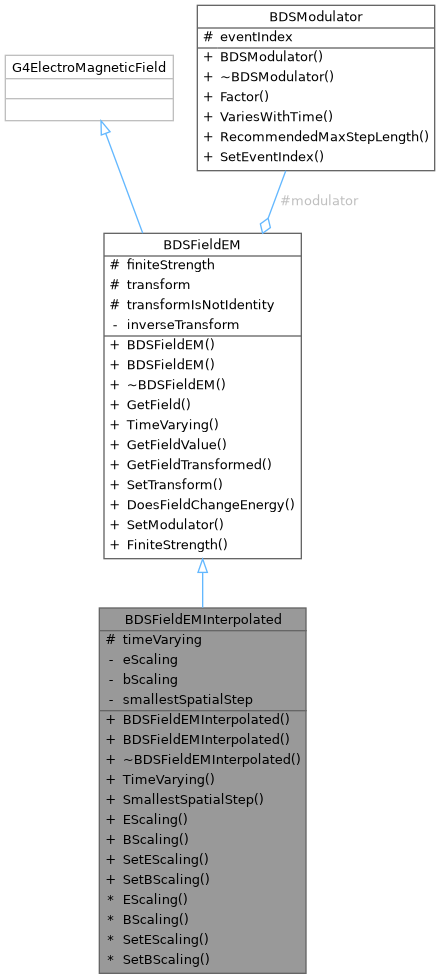

Collaboration diagram for BDSFieldEMInterpolated:

Public Member Functions
	BDSFieldEMInterpolated (const BDSInterpolator *eInterpolator, const BDSInterpolator *bInterpolator, const G4Transform3D &offset, G4double eScalingIn=1.0, G4double bScalingIn=1.0)
virtual G4bool	TimeVarying () const
G4double	SmallestSpatialStep () const
G4double	EScaling () const
	Accessor.
G4double	BScaling () const
	Accessor.
void	SetEScaling (G4double eScalingIn)
	Setter.
void	SetBScaling (G4double bScalingIn)
	Setter.
Public Member Functions inherited from BDSFieldEM
	BDSFieldEM ()
	BDSFieldEM (G4Transform3D transformIn)
virtual std::pair< G4ThreeVector, G4ThreeVector >	GetField (const G4ThreeVector &position, const G4double t=0) const =0
virtual void	GetFieldValue (const G4double point[4], G4double *field) const
virtual std::pair< G4ThreeVector, G4ThreeVector >	GetFieldTransformed (const G4ThreeVector &position, const G4double t) const
	Get the field value after applying transform for local offset.
virtual void	SetTransform (const G4Transform3D &transformIn)
virtual G4bool	DoesFieldChangeEnergy () const
	Required overload by Geant4.
void	SetModulator (BDSModulator *modulatorIn)
	Set the optional modulator.
G4bool	FiniteStrength () const
	Accessor.

Protected Attributes
G4bool	timeVarying
Protected Attributes inherited from BDSFieldEM
G4bool	finiteStrength
	Flag to cache whether finite nor not.
G4Transform3D	transform
	Transform to apply for the field relative to the local coordinates of the geometry.
G4bool	transformIsNotIdentity
	Cache of whether to use transform at all.
BDSModulator *	modulator
	Optional modulator;.

Private Attributes
G4double	eScaling
	E field scaling value.
G4double	bScaling
	B field scaling value.
G4double	smallestSpatialStep

Detailed Description

Class to provide scaling and a base class pointer for interpolator fields.

Author

Laurie Nevay

Definition at line 34 of file BDSFieldEMInterpolated.hh.

Constructor & Destructor Documentation

BDSFieldEMInterpolated()

BDSFieldEMInterpolated::BDSFieldEMInterpolated	(	const BDSInterpolator *	eInterpolator,
		const BDSInterpolator *	bInterpolator,
		const G4Transform3D &	offset,
		G4double	eScalingIn = 1.0,
		G4double	bScalingIn = 1.0
	)

Definition at line 25 of file BDSFieldEMInterpolated.cc.

~BDSFieldEMInterpolated()

virtual BDSFieldEMInterpolated::~BDSFieldEMInterpolated ( )

inlinevirtual

Definition at line 43 of file BDSFieldEMInterpolated.hh.

Member Function Documentation

BScaling()

G4double BDSFieldEMInterpolated::BScaling ( ) const

inline

Accessor.

Definition at line 49 of file BDSFieldEMInterpolated.hh.

References bScaling.

Referenced by BDSFieldEMInterpolated1D::GetField(), BDSFieldEMInterpolated2D::GetField(), BDSFieldEMInterpolated3D::GetField(), and BDSFieldEMInterpolated4D::GetField().

Here is the caller graph for this function:

EScaling()

G4double BDSFieldEMInterpolated::EScaling ( ) const

inline

Accessor.

Definition at line 48 of file BDSFieldEMInterpolated.hh.

References eScaling.

Referenced by BDSFieldEMInterpolated1D::GetField(), BDSFieldEMInterpolated2D::GetField(), BDSFieldEMInterpolated3D::GetField(), and BDSFieldEMInterpolated4D::GetField().

Here is the caller graph for this function:

SetBScaling()

void BDSFieldEMInterpolated::SetBScaling ( G4double  bScalingIn )

inline

Setter.

Definition at line 54 of file BDSFieldEMInterpolated.hh.

References bScaling.

SetEScaling()

void BDSFieldEMInterpolated::SetEScaling ( G4double  eScalingIn )

inline

Setter.

Definition at line 53 of file BDSFieldEMInterpolated.hh.

References eScaling.

SmallestSpatialStep()

G4double BDSFieldEMInterpolated::SmallestSpatialStep ( ) const

inline

Definition at line 57 of file BDSFieldEMInterpolated.hh.

TimeVarying()

virtual G4bool BDSFieldEMInterpolated::TimeVarying ( ) const

inlinevirtual

Each derived class should override this if needs be. Used to warn about time modulation with a time-varying field.

Reimplemented from BDSFieldEM.

Definition at line 45 of file BDSFieldEMInterpolated.hh.

Field Documentation

bScaling

G4double BDSFieldEMInterpolated::bScaling

private

B field scaling value.

Definition at line 64 of file BDSFieldEMInterpolated.hh.

Referenced by BScaling(), and SetBScaling().

eScaling

G4double BDSFieldEMInterpolated::eScaling

private

E field scaling value.

Definition at line 63 of file BDSFieldEMInterpolated.hh.

Referenced by EScaling(), and SetEScaling().

smallestSpatialStep

G4double BDSFieldEMInterpolated::smallestSpatialStep

private

Definition at line 65 of file BDSFieldEMInterpolated.hh.

timeVarying

G4bool BDSFieldEMInterpolated::timeVarying

protected

Definition at line 60 of file BDSFieldEMInterpolated.hh.

---

The documentation for this class was generated from the following files:

• /__w/bdsim/bdsim/include/BDSFieldEMInterpolated.hh
• /__w/bdsim/bdsim/src/BDSFieldEMInterpolated.cc
