BDSFieldEMRFCavity Class Reference

Pill box cavity electromagnetic field. More...

#include <BDSFieldEMRFCavity.hh>

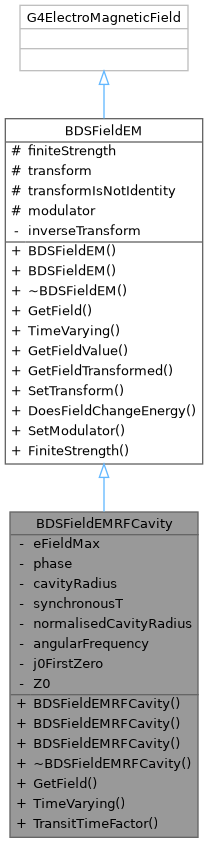

Inheritance diagram for BDSFieldEMRFCavity:

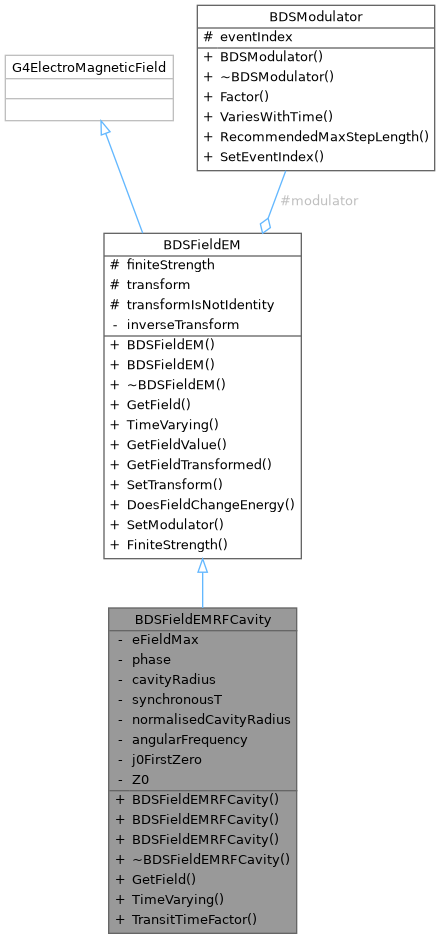

Collaboration diagram for BDSFieldEMRFCavity:

Public Member Functions
	BDSFieldEMRFCavity (BDSMagnetStrength const *strength)
	BDSFieldEMRFCavity (G4double eFieldAmplitude, G4double frequency, G4double phaseOffset, G4double cavityRadius, G4double synchronousTIn)
virtual std::pair< G4ThreeVector, G4ThreeVector >	GetField (const G4ThreeVector &position, const G4double t) const
	Accessor to get B and E field.
virtual G4bool	TimeVarying () const
Public Member Functions inherited from BDSFieldEM
	BDSFieldEM ()
	BDSFieldEM (G4Transform3D transformIn)
virtual void	GetFieldValue (const G4double point[4], G4double *field) const
virtual std::pair< G4ThreeVector, G4ThreeVector >	GetFieldTransformed (const G4ThreeVector &position, const G4double t) const
	Get the field value after applying transform for local offset.
virtual void	SetTransform (const G4Transform3D &transformIn)
virtual G4bool	DoesFieldChangeEnergy () const
	Required overload by Geant4.
void	SetModulator (BDSModulator *modulatorIn)
	Set the optional modulator.
G4bool	FiniteStrength () const
	Accessor.

Static Public Member Functions
static G4double	TransitTimeFactor (G4double frequency, G4double phase, G4double zLength, G4double beta)
	General function put here as it represents the equations in this class.

Private Attributes
G4double	eFieldMax
	Maximum field in V/m.
G4double	phase
	Phase offset of the oscillator.
G4double	cavityRadius
	Radius at maximum extent of cavity.
G4double	synchronousT
const G4double	normalisedCavityRadius
	Pre-calculated normalised calculated radius w.r.t. bessel first 0.
const G4double	angularFrequency
	Angular frequency calculated from frequency - cached to avoid repeated calculation.

Static Private Attributes
static const G4double	j0FirstZero = 2.404825557695772768622
	X coordinate of first 0 point for bessel J0.
static const G4double	Z0 = CLHEP::mu0 * CLHEP::c_light
	Impedance of free space.

Additional Inherited Members
Protected Attributes inherited from BDSFieldEM
G4bool	finiteStrength
	Flag to cache whether finite nor not.
G4Transform3D	transform
	Transform to apply for the field relative to the local coordinates of the geometry.
G4bool	transformIsNotIdentity
	Cache of whether to use transform at all.
BDSModulator *	modulator
	Optional modulator;.

Detailed Description

Pill box cavity electromagnetic field.

Author

Stuart Walker

Definition at line 38 of file BDSFieldEMRFCavity.hh.

Constructor & Destructor Documentation

BDSFieldEMRFCavity() [1/2]

BDSFieldEMRFCavity::BDSFieldEMRFCavity ( BDSMagnetStrength const *  strength )

explicit

Definition at line 39 of file BDSFieldEMRFCavity.cc.

BDSFieldEMRFCavity() [2/2]

BDSFieldEMRFCavity::BDSFieldEMRFCavity	(	G4double	eFieldAmplitude,
		G4double	frequency,
		G4double	phaseOffset,
		G4double	cavityRadius,
		G4double	synchronousTIn
	)

Definition at line 47 of file BDSFieldEMRFCavity.cc.

~BDSFieldEMRFCavity()

virtual BDSFieldEMRFCavity::~BDSFieldEMRFCavity ( )

inlinevirtual

Definition at line 50 of file BDSFieldEMRFCavity.hh.

Member Function Documentation

GetField()

std::pair< G4ThreeVector, G4ThreeVector > BDSFieldEMRFCavity::GetField ( const G4ThreeVector &  position, const G4double  t  ) const

virtual

Accessor to get B and E field.

Implements BDSFieldEM.

Definition at line 64 of file BDSFieldEMRFCavity.cc.

References angularFrequency, eFieldMax, j0FirstZero, normalisedCavityRadius, phase, and Z0.

TimeVarying()

virtual G4bool BDSFieldEMRFCavity::TimeVarying ( ) const

inlinevirtual

Each derived class should override this if needs be. Used to warn about time modulation with a time-varying field.

Reimplemented from BDSFieldEM.

Definition at line 56 of file BDSFieldEMRFCavity.hh.

TransitTimeFactor()

G4double BDSFieldEMRFCavity::TransitTimeFactor ( G4double  frequency, G4double  phase, G4double  zLength, G4double  beta  )

static

General function put here as it represents the equations in this class.

Definition at line 103 of file BDSFieldEMRFCavity.cc.

References phase.

Referenced by BDSComponentFactory::EFieldFromElement(), and BDSBeamlineIntegral::Integrate().

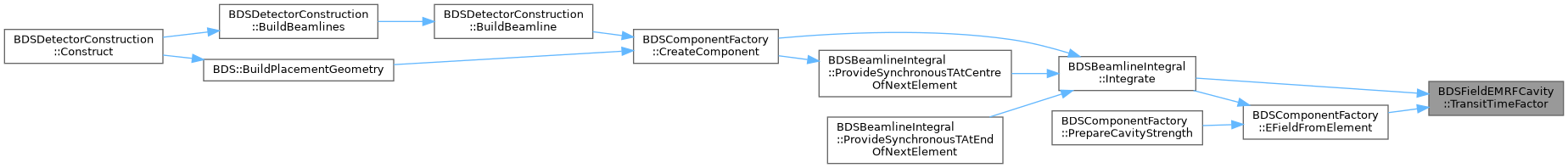

Here is the caller graph for this function:

Field Documentation

angularFrequency

const G4double BDSFieldEMRFCavity::angularFrequency

private

Angular frequency calculated from frequency - cached to avoid repeated calculation.

Definition at line 73 of file BDSFieldEMRFCavity.hh.

Referenced by GetField().

cavityRadius

G4double BDSFieldEMRFCavity::cavityRadius

private

Radius at maximum extent of cavity.

Definition at line 67 of file BDSFieldEMRFCavity.hh.

eFieldMax

G4double BDSFieldEMRFCavity::eFieldMax

private

Maximum field in V/m.

Definition at line 65 of file BDSFieldEMRFCavity.hh.

Referenced by GetField().

j0FirstZero

const G4double BDSFieldEMRFCavity::j0FirstZero = 2.404825557695772768622

staticprivate

X coordinate of first 0 point for bessel J0.

Definition at line 70 of file BDSFieldEMRFCavity.hh.

Referenced by GetField().

normalisedCavityRadius

const G4double BDSFieldEMRFCavity::normalisedCavityRadius

private

Pre-calculated normalised calculated radius w.r.t. bessel first 0.

Definition at line 72 of file BDSFieldEMRFCavity.hh.

Referenced by GetField().

phase

G4double BDSFieldEMRFCavity::phase

private

Phase offset of the oscillator.

Definition at line 66 of file BDSFieldEMRFCavity.hh.

Referenced by GetField(), and TransitTimeFactor().

synchronousT

G4double BDSFieldEMRFCavity::synchronousT

private

Definition at line 68 of file BDSFieldEMRFCavity.hh.

Z0

const G4double BDSFieldEMRFCavity::Z0 = CLHEP::mu0 * CLHEP::c_light

staticprivate

Impedance of free space.

Definition at line 71 of file BDSFieldEMRFCavity.hh.

Referenced by GetField().

---

The documentation for this class was generated from the following files:

• /__w/bdsim/bdsim/include/BDSFieldEMRFCavity.hh
• /__w/bdsim/bdsim/src/BDSFieldEMRFCavity.cc
