Model Class Reference

Model loader. More...

#include <Model.hh>

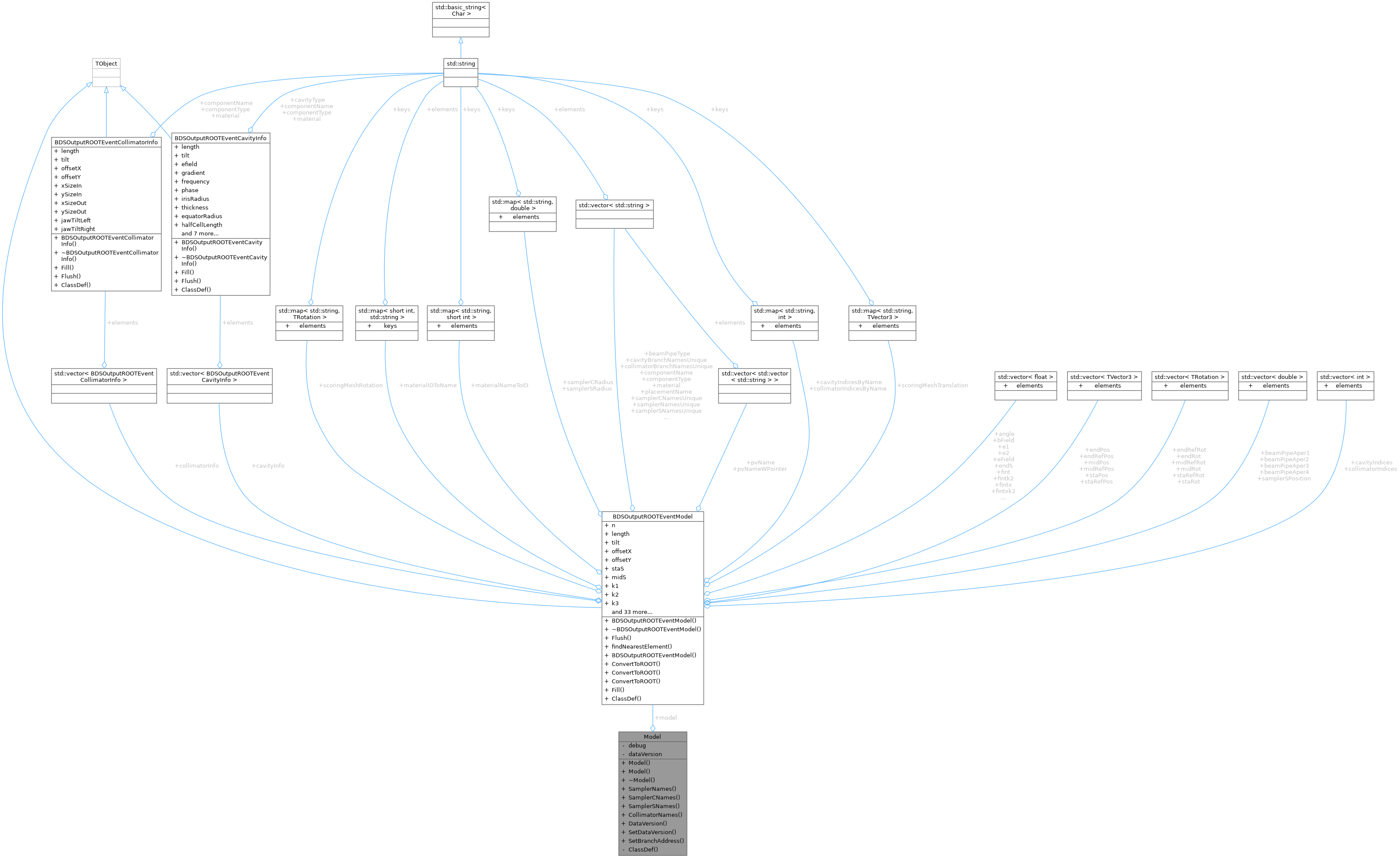

Collaboration diagram for Model:

Public Member Functions
	Model (bool debugIn, int dataVersionIn=0)
std::vector< std::string >	SamplerNames () const
	Access all the unique sampler names from the model.
std::vector< std::string >	SamplerCNames () const
std::vector< std::string >	SamplerSNames () const
std::vector< std::string >	CollimatorNames () const
	Access all the sampler branch names from the model.
int	DataVersion () const
	Accessor.
void	SetDataVersion (int dataVersionIn)
void	SetBranchAddress (TTree *t, bool allBranchesOn=true, const RBDS::VectorString *branchesToTurnOn=nullptr)
	Set the branch addresses to address the contents of the file.

Data Fields
BDSOutputROOTEventModel *	model
	Member that ROOT can map file data to locally.

Private Member Functions
	ClassDef (Model, 2)

Private Attributes
bool	debug
int	dataVersion

Detailed Description

Model loader.

Author

Stuart Walker.

Definition at line 34 of file Model.hh.

Constructor & Destructor Documentation

Model()

Model::Model	(	bool	debugIn,
		int	dataVersionIn = 0
	)

Definition at line 35 of file Model.cc.

~Model()

Model::~Model ( )

virtual

Definition at line 44 of file Model.cc.

Member Function Documentation

CollimatorNames()

std::vector< std::string > Model::CollimatorNames

(

)

const

Access all the sampler branch names from the model.

Definition at line 90 of file Model.cc.

References BDSOutputROOTEventModel::collimatorBranchNamesUnique, and model.

Referenced by DataLoader::BuildEventBranchNameList().

Here is the caller graph for this function:

DataVersion()

int Model::DataVersion ( ) const

inline

Accessor.

Definition at line 51 of file Model.hh.

SamplerCNames()

std::vector< std::string > Model::SamplerCNames

(

)

const

Definition at line 80 of file Model.cc.

SamplerNames()

std::vector< std::string > Model::SamplerNames

(

)

const

Access all the unique sampler names from the model.

Definition at line 72 of file Model.cc.

References model.

Referenced by DataLoader::BuildEventBranchNameList(), and Compare::Trees().

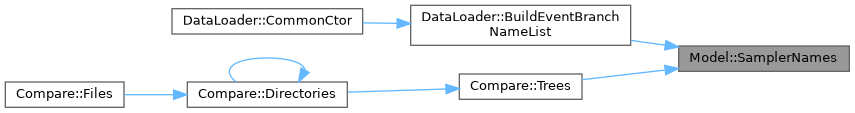

Here is the caller graph for this function:

SamplerSNames()

std::vector< std::string > Model::SamplerSNames

(

)

const

Definition at line 85 of file Model.cc.

SetBranchAddress()

void Model::SetBranchAddress	(	TTree *	t,
		bool	allBranchesOn = true,
		const RBDS::VectorString *	branchesToTurnOn = nullptr
	)

Set the branch addresses to address the contents of the file.

Definition at line 49 of file Model.cc.

References model.

Referenced by DataLoader::BuildEventBranchNameList(), DataLoader::SetBranchAddress(), and Compare::Trees().

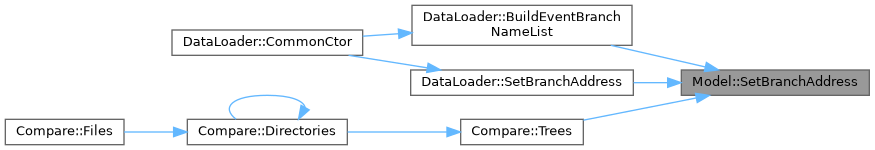

Here is the caller graph for this function:

SetDataVersion()

void Model::SetDataVersion ( int  dataVersionIn )

inline

Allow setting of data version if default constructor is used. If the default constructor was used, this function should be used before SetBranchAddress().

Definition at line 55 of file Model.hh.

Field Documentation

dataVersion

int Model::dataVersion

private

Definition at line 68 of file Model.hh.

debug

bool Model::debug

private

Definition at line 67 of file Model.hh.

model

BDSOutputROOTEventModel* Model::model

Member that ROOT can map file data to locally.

Definition at line 63 of file Model.hh.

Referenced by CollimatorNames(), EventDisplay::DrawModel(), EventDisplay::DrawSamplers(), SamplerNames(), and SetBranchAddress().

---

The documentation for this class was generated from the following files:

• /__w/bdsim/bdsim/analysis/Model.hh
• /__w/bdsim/bdsim/analysis/Model.cc
