BDSTrackingAction Class Reference

Action to decide whether or not to store trajectory information. More...

#include <BDSTrackingAction.hh>

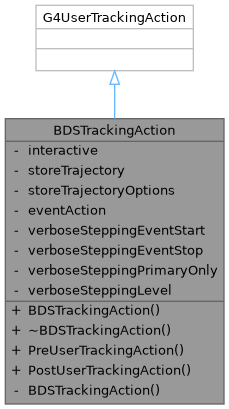

Inheritance diagram for BDSTrackingAction:

Collaboration diagram for BDSTrackingAction:

Public Member Functions
	BDSTrackingAction (G4bool batchMode, G4bool storeTrajectoryIn, const BDS::TrajectoryOptions &storeTrajectoryOptionsIn, BDSEventAction *eventActionIn, G4int verboseSteppingEventStartIn, G4int verboseSteppingEventStopIn, G4bool verboseSteppingPrimaryOnlyIn, G4int verboseSteppingLevelIn, BDSPolarizationState *defaultPolarisationIn=nullptr)
virtual void	PreUserTrackingAction (const G4Track *track)
	Used to decide whether or not to store trajectories.
virtual void	PostUserTrackingAction (const G4Track *track)
	Detect whether track is a primary and if so whether it ended in a collimator.

Private Member Functions
	BDSTrackingAction ()=delete
	No default constructor required.

Private Attributes
const G4bool	interactive
const G4bool	storeTrajectory
const BDS::TrajectoryOptions	storeTrajectoryOptions
	Cache of flag from global constants to control storing all trajectories.
BDSEventAction *	eventAction
	Cache of trajectory options.
G4int	verboseSteppingEventStart
G4int	verboseSteppingEventStop
G4bool	verboseSteppingPrimaryOnly
G4int	verboseSteppingLevel
BDSPolarizationState *	defaultPolarisation

Detailed Description

Action to decide whether or not to store trajectory information.

Definition at line 35 of file BDSTrackingAction.hh.

Constructor & Destructor Documentation

BDSTrackingAction()

BDSTrackingAction::BDSTrackingAction	(	G4bool	batchMode,
		G4bool	storeTrajectoryIn,
		const BDS::TrajectoryOptions &	storeTrajectoryOptionsIn,
		BDSEventAction *	eventActionIn,
		G4int	verboseSteppingEventStartIn,
		G4int	verboseSteppingEventStopIn,
		G4bool	verboseSteppingPrimaryOnlyIn,
		G4int	verboseSteppingLevelIn,
		BDSPolarizationState *	defaultPolarisationIn = nullptr
	)

Definition at line 41 of file BDSTrackingAction.cc.

~BDSTrackingAction()

BDSTrackingAction::~BDSTrackingAction ( )

virtual

Definition at line 61 of file BDSTrackingAction.cc.

Member Function Documentation

PostUserTrackingAction()

void BDSTrackingAction::PostUserTrackingAction ( const G4Track *  track )

virtual

Detect whether track is a primary and if so whether it ended in a collimator.

Definition at line 125 of file BDSTrackingAction.cc.

References eventAction, BDSEventAction::SetPrimaryAbsorbedInCollimator(), and BDSAcceleratorModel::VolumeSet().

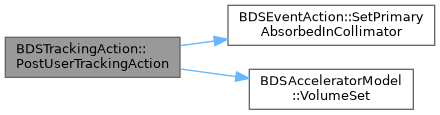

Here is the call graph for this function:

PreUserTrackingAction()

void BDSTrackingAction::PreUserTrackingAction ( const G4Track *  track )

virtual

Used to decide whether or not to store trajectories.

Definition at line 66 of file BDSTrackingAction.cc.

References BDSIntegratorMag::currentTrackIsPrimary, eventAction, BDSEventAction::IncrementNTracks(), interactive, BDS::IsIon(), BDSEventAction::RegisterPrimaryTrajectory(), storeTrajectoryOptions, and BDS::VerboseThisEvent().

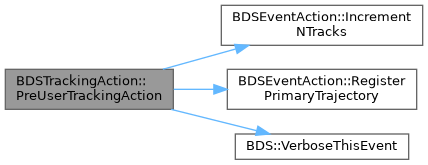

Here is the call graph for this function:

Field Documentation

defaultPolarisation

BDSPolarizationState* BDSTrackingAction::defaultPolarisation

private

Definition at line 74 of file BDSTrackingAction.hh.

eventAction

BDSEventAction* BDSTrackingAction::eventAction

private

Cache of trajectory options.

Cache of event action to communicate whether a primary stopped in a collimator or not.

Definition at line 68 of file BDSTrackingAction.hh.

Referenced by PostUserTrackingAction(), and PreUserTrackingAction().

interactive

const G4bool BDSTrackingAction::interactive

private

Whether we're using the visualiser - in which case always store trajectories for visualisation.

Definition at line 62 of file BDSTrackingAction.hh.

Referenced by PreUserTrackingAction().

storeTrajectory

const G4bool BDSTrackingAction::storeTrajectory

private

Definition at line 64 of file BDSTrackingAction.hh.

storeTrajectoryOptions

const BDS::TrajectoryOptions BDSTrackingAction::storeTrajectoryOptions

private

Cache of flag from global constants to control storing all trajectories.

Definition at line 65 of file BDSTrackingAction.hh.

Referenced by PreUserTrackingAction().

verboseSteppingEventStart

G4int BDSTrackingAction::verboseSteppingEventStart

private

Definition at line 70 of file BDSTrackingAction.hh.

verboseSteppingEventStop

G4int BDSTrackingAction::verboseSteppingEventStop

private

Definition at line 71 of file BDSTrackingAction.hh.

verboseSteppingLevel

G4int BDSTrackingAction::verboseSteppingLevel

private

Definition at line 73 of file BDSTrackingAction.hh.

verboseSteppingPrimaryOnly

G4bool BDSTrackingAction::verboseSteppingPrimaryOnly

private

Definition at line 72 of file BDSTrackingAction.hh.

---

The documentation for this class was generated from the following files:

• /__w/bdsim/bdsim/include/BDSTrackingAction.hh
• /__w/bdsim/bdsim/src/BDSTrackingAction.cc
