ROOT Event output class. More...

#include <BDSOutputROOT.hh>

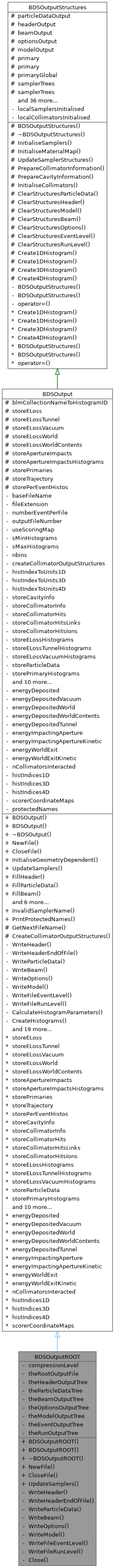

Inheritance diagram for BDSOutputROOT:

Collaboration diagram for BDSOutputROOT:

Public Member Functions
	BDSOutputROOT ()=delete
	No default constructor.

	BDSOutputROOT (const G4String &fileName, G4int fileNumberOffset, G4int compressionLevelIn=-1)

virtual void	NewFile ()
	Open a new file.

virtual void	CloseFile ()
	Write contents and close file.

virtual void	UpdateSamplers ()
	Implementation for ROOT output. Only for link - not for regular use.

Public Member Functions inherited from BDSOutput
	BDSOutput ()=delete
	No default constructor.

	BDSOutput (const G4String &baseFileNameIn, const G4String &fileExtentionIn, G4int fileNumberOffset)
	Constructor with base file name (without extension or number suffix).

virtual void	InitialiseGeometryDependent ()

void	FillHeader ()
	Fill the local structure header with information - updates time stamp.

void	FillParticleData (G4bool writeIons)
	Fill the local structure particle data with information. Also calls WriteParticleData().

void	FillBeam (const GMAD::BeamBase *beam)

void	FillOptions (const GMAD::OptionsBase *options)

void	FillModel ()

void	FillEventPrimaryOnly (const BDSParticleCoordsFullGlobal &coords, const BDSParticleDefinition *particle)

void	FillEvent (const BDSEventInfo info, const G4PrimaryVertex vertex, const std::vector< BDSHitsCollectionSampler * > &samplerHitsPlane, const std::vector< BDSHitsCollectionSamplerCylinder * > &samplerHitsCylinder, const std::vector< BDSHitsCollectionSamplerSphere * > &samplerHitsSphere, const BDSHitsCollectionSamplerLink samplerHitsLink, const BDSHitsCollectionEnergyDeposition energyLoss, const BDSHitsCollectionEnergyDeposition energyLossFull, const BDSHitsCollectionEnergyDeposition energyLossVacuum, const BDSHitsCollectionEnergyDeposition energyLossTunnel, const BDSHitsCollectionEnergyDepositionGlobal energyLossWorld, const BDSHitsCollectionEnergyDepositionGlobal energyLossWorldContents, const BDSHitsCollectionEnergyDepositionGlobal worldExitHits, const std::vector< const BDSTrajectoryPointHit * > &primaryHits, const std::vector< const BDSTrajectoryPointHit * > &primaryLosses, const BDSTrajectoriesToStore trajectories, const BDSHitsCollectionCollimator collimatorHits, const BDSHitsCollectionApertureImpacts apertureImpactHits, const std::map< G4String, G4THitsMap< G4double > > &scorerHitsMap, const G4int turnsTaken)
	Copy event information from Geant4 simulation structures to output structures.

void	CloseAndOpenNewFile ()
	Close a file and open a new one.

void	FillRun (const BDSEventInfo *info, unsigned long long int nOriginalEventsIn, unsigned long long int nEventsRequestedIn, unsigned long long int nEventsInOriginalDistrFileIn, unsigned long long int nEventsDistrFileSkippedIn, unsigned int distrFileLoopNTimesIn)
	Copy run information to output structure.

Private Member Functions
virtual void	WriteHeader ()
	Copy header and write to file.

virtual void	WriteHeaderEndOfFile ()
	Overwrite contents of header in the file.

virtual void	WriteParticleData ()
	Copy geant4 data to file.

virtual void	WriteBeam ()
	Copy beam and write to file.

virtual void	WriteOptions ()
	Copy options and write to file.

virtual void	WriteModel ()
	Copy model and write to file.

virtual void	WriteFileEventLevel ()

virtual void	WriteFileRunLevel ()

void	Close ()

Private Attributes
G4int	compressionLevel
	ROOT compression level for files.

TFile *	theRootOutputFile
	Output file.

TTree *	theHeaderOutputTree
	Header Tree.

TTree *	theParticleDataTree
	Geant4 Data Tree.

TTree *	theBeamOutputTree
	Beam Tree.

TTree *	theOptionsOutputTree
	Options tree.

TTree *	theModelOutputTree
	Model tree.

TTree *	theEventOutputTree
	Event tree.

TTree *	theRunOutputTree
	Output histogram tree.

Additional Inherited Members
Static Public Member Functions inherited from BDSOutput
static G4bool	InvalidSamplerName (const G4String &samplerName)
	Test whether a sampler name is invalid or not.

static void	PrintProtectedNames (std::ostream &out)
	Feedback for protected names.

Protected Member Functions inherited from BDSOutput
G4String	GetNextFileName ()
	Get the next file name based on the base file name and the accrued number of files.

G4bool	CreateCollimatorOutputStructures () const
	Whether to create the collimator structures in the output or not.

Protected Member Functions inherited from BDSOutputStructures
	BDSOutputStructures (const BDSGlobalConstants *globals)

void	InitialiseSamplers ()
	Construct samplers.

void	InitialiseMaterialMap ()
	Construct a map of material pointer to integer ID and name.

G4int	UpdateSamplerStructures ()
	Interface to allow setting up samplers later for dynamic geometry construction a la SixTrack. Not for regular use.

void	PrepareCollimatorInformation ()

void	PrepareCavityInformation ()
	Extract number of collimators and their names from beam line.

void	InitialiseCollimators ()
	Construct collimators.

void	ClearStructuresParticleData ()
	Clear the local particle data structure.

void	ClearStructuresHeader ()
	Clear the local header structure.

void	ClearStructuresModel ()
	Clear the local model structure.

void	ClearStructuresBeam ()
	Clear the local beam structure.

void	ClearStructuresOptions ()
	Clear the local options structure.

void	ClearStructuresEventLevel ()
	Clear the local structures in this class in preparation for a new event.

void	ClearStructuresRunLevel ()
	Clear the local structures in this class in preparation for a new run.

G4int	Create1DHistogram (G4String name, G4String title, G4int nbins, G4double xmin, G4double xmax)
	Create histograms for both evtHistos and runHistos. Return index from evtHistos.

G4int	Create1DHistogram (G4String name, G4String title, std::vector< double > &edges)
	Create histograms for both evtHistos and runHistos. Return index from evtHistos.

G4int	Create3DHistogram (G4String name, G4String title, G4int nBinsX, G4double xMin, G4double xMax, G4int nBinsY, G4double yMin, G4double yMax, G4int nBinsZ, G4double zMin, G4double zMax)
	Create histograms for both evtHistos and runHistos. Return index from evtHistos.

G4int	Create4DHistogram (const G4String &name, const G4String &title, const G4String &eScale, const std::vector< double > &eBinsEdges, G4int nBinsX, G4double xMin, G4double xMax, G4int nBinsY, G4double yMin, G4double yMax, G4int nBinsZ, G4double zMin, G4double zMax, G4int nBinsE, G4double eMin, G4double eMax)
	Create histograms for both evtHistos and runHistos. Return index from evtHistos.

Protected Attributes inherited from BDSOutput
std::map< G4String, G4int >	blmCollectionNameToHistogramID

G4bool	storeELoss
	Options for dynamic bits of output.

G4bool	storeELossTunnel
	Options for dynamic bits of output.

G4bool	storeELossVacuum
	Options for dynamic bits of output.

G4bool	storeELossWorld
	Options for dynamic bits of output.

G4bool	storeELossWorldContents
	Options for dynamic bits of output.

G4bool	storeApertureImpacts
	Options for dynamic bits of output.

G4bool	storeApertureImpactsHistograms
	Options for dynamic bits of output.

G4bool	storePrimaries
	Options for dynamic bits of output.

G4bool	storeTrajectory
	Options for dynamic bits of output.

G4bool	storePerEventHistos
	Options for dynamic bits of output.

Protected Attributes inherited from BDSOutputStructures
BDSOutputROOTParticleData *	particleDataOutput
	Geant4 information / particle tables.

BDSOutputROOTEventHeader *	headerOutput
	Information about the file.

BDSOutputROOTEventBeam *	beamOutput
	Beam output.

BDSOutputROOTEventOptions *	optionsOutput
	Options output.

BDSOutputROOTEventModel *	modelOutput
	Model output.

BDSOutputROOTEventSampler< double > *	primary
	Primary sampler structure.

BDSOutputROOTEventSampler< float > *	primary

BDSOutputROOTEventCoords *	primaryGlobal

std::vector< BDSOutputROOTEventSampler< double > * >	samplerTrees
	Sampler structures.

std::vector< BDSOutputROOTEventSampler< float > * >	samplerTrees

std::vector< std::string >	samplerNames
	Sampler names to use.

std::vector< BDSOutputROOTEventSamplerC * >	samplerCTrees

std::vector< BDSOutputROOTEventSamplerS * >	samplerSTrees

std::vector< std::string >	samplerCNames

std::vector< std::string >	samplerSNames

std::map< G4int, G4int >	samplerIDToIndexPlane

std::map< G4int, G4int >	samplerIDToIndexCylinder

std::map< G4int, G4int >	samplerIDToIndexSphere

BDSOutputROOTEventRunInfo *	runInfo
	Run information.

BDSOutputROOTEventHistograms *	runHistos
	Run level histograms.

BDSOutputROOTEventLoss *	eLoss
	General energy deposition.

BDSOutputROOTEventLoss *	pFirstHit
	Primary hit point.

BDSOutputROOTEventLoss *	pLastHit
	Primary loss point.

BDSOutputROOTEventLoss *	eLossVacuum
	General energy deposition.

BDSOutputROOTEventLoss *	eLossTunnel
	Tunnel energy deposition.

BDSOutputROOTEventLossWorld *	eLossWorld
	World energy deposition.

BDSOutputROOTEventLossWorld *	eLossWorldExit
	World exit hits.

BDSOutputROOTEventLossWorld *	eLossWorldContents
	Externally supplied world contents hits.

BDSOutputROOTEventAperture *	apertureImpacts
	Impacts on the aperture.

BDSOutputROOTEventTrajectory *	traj
	Trajectories.

BDSOutputROOTEventHistograms *	evtHistos
	Event level histograms.

BDSOutputROOTEventInfo *	evtInfo
	Event information.

std::vector< BDSOutputROOTEventCollimator * >	collimators
	Collimator output structures.

std::vector< G4String >	collimatorNames
	Names of collimators in output structures.

G4int	nCollimators
	Number of collimators in beam line.

std::vector< G4int >	collimatorIndices
	Indices in beam line that are collimators.

std::map< G4String, G4int >	collimatorIndicesByName
	Indices mapped to their name.

std::vector< BDSOutputROOTEventCollimatorInfo >	collimatorInfo

std::vector< std::pair< G4double, G4double > >	collimatorDifferences

std::vector< G4String >	cavityNames
	Names of cavities in output structures.

G4int	nCavities
	Number of cavities in beam line.

std::vector< G4int >	cavityIndices
	Indices in beam line that are cavities.

std::map< G4String, G4int >	cavityIndicesByName
	Indices mapped to their name.

std::vector< BDSOutputROOTEventCavityInfo >	cavityInfo
	Cavity parameters.

std::map< G4Material *, short int >	materialToID

std::map< short int, G4String >	materialIDToNameUnique

Detailed Description

ROOT Event output class.

Author: Stewart Boogert

Definition at line 37 of file BDSOutputROOT.hh.

Constructor & Destructor Documentation

◆ BDSOutputROOT()

BDSOutputROOT::BDSOutputROOT	(	const G4String &	fileName,
		G4int	fileNumberOffset,
		G4int	compressionLevelIn = `-1`
	)

Constructor with default file name (without extension or number suffix). Also, file number offset to start counting suffix from.

Definition at line 47 of file BDSOutputROOT.cc.

◆ ~BDSOutputROOT()

BDSOutputROOT::~BDSOutputROOT ( )

virtual

Definition at line 62 of file BDSOutputROOT.cc.

Member Function Documentation

◆ Close()

void BDSOutputROOT::Close ( )

private

An implementation only in this class. We need a non-virtual function to call in the class destructor.

Definition at line 239 of file BDSOutputROOT.cc.

References theRootOutputFile.

Referenced by CloseFile().

Here is the caller graph for this function:

◆ CloseFile()

void BDSOutputROOT::CloseFile ( )

virtual

Write contents and close file.

Implements BDSOutput.

Definition at line 234 of file BDSOutputROOT.cc.

References Close().

Here is the call graph for this function:

◆ NewFile()

void BDSOutputROOT::NewFile ( )

virtual

Open a new file.

Implements BDSOutput.

Definition at line 67 of file BDSOutputROOT.cc.

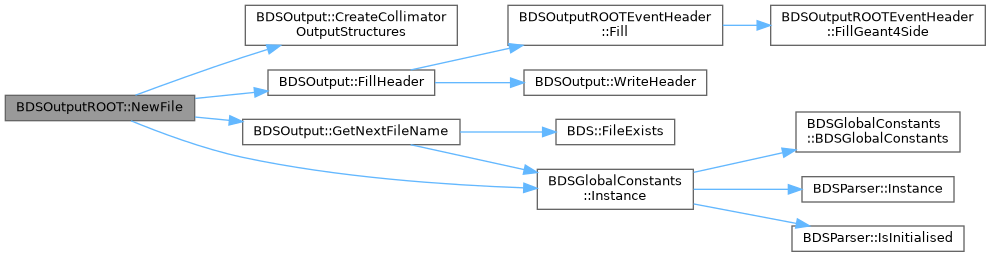

Here is the call graph for this function:

◆ UpdateSamplers()

void BDSOutputROOT::UpdateSamplers ( )

virtual

Implementation for ROOT output. Only for link - not for regular use.

Reimplemented from BDSOutput.

Definition at line 255 of file BDSOutputROOT.cc.

References BDSOutputStructures::samplerNames, BDSOutputStructures::samplerTrees, theEventOutputTree, and BDSOutputStructures::UpdateSamplerStructures().

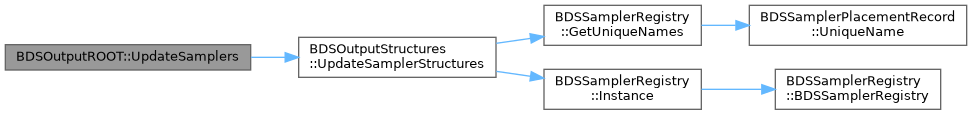

Here is the call graph for this function:

◆ WriteBeam()

void BDSOutputROOT::WriteBeam ( )

privatevirtual

Copy beam and write to file.

Implements BDSOutput.

Definition at line 199 of file BDSOutputROOT.cc.

References theBeamOutputTree.

◆ WriteFileEventLevel()

void BDSOutputROOT::WriteFileEventLevel ( )

privatevirtual

Copy from local event structures to the actual file. Ony event level structures are copied.

Implements BDSOutput.

Definition at line 214 of file BDSOutputROOT.cc.

References theEventOutputTree, and theRootOutputFile.

◆ WriteFileRunLevel()

void BDSOutputROOT::WriteFileRunLevel ( )

privatevirtual

Copy from local run structures to the actual file. Only run level structures are copied.

Implements BDSOutput.

Definition at line 221 of file BDSOutputROOT.cc.

References theRootOutputFile, and theRunOutputTree.

◆ WriteHeader()

void BDSOutputROOT::WriteHeader ( )

privatevirtual

Copy header and write to file.

Implements BDSOutput.

Definition at line 183 of file BDSOutputROOT.cc.

References theHeaderOutputTree.

◆ WriteHeaderEndOfFile()

void BDSOutputROOT::WriteHeaderEndOfFile ( )

privatevirtual

Overwrite contents of header in the file.

Implements BDSOutput.

Definition at line 188 of file BDSOutputROOT.cc.

References theHeaderOutputTree.

◆ WriteModel()

void BDSOutputROOT::WriteModel ( )

privatevirtual

Copy model and write to file.

Implements BDSOutput.

Definition at line 209 of file BDSOutputROOT.cc.

References theModelOutputTree.

◆ WriteOptions()

void BDSOutputROOT::WriteOptions ( )

privatevirtual

Copy options and write to file.

Implements BDSOutput.

Definition at line 204 of file BDSOutputROOT.cc.

References theOptionsOutputTree.

◆ WriteParticleData()

void BDSOutputROOT::WriteParticleData ( )

privatevirtual

Copy geant4 data to file.

Implements BDSOutput.

Definition at line 194 of file BDSOutputROOT.cc.

References theParticleDataTree.

Field Documentation

◆ compressionLevel

G4int BDSOutputROOT::compressionLevel

private

ROOT compression level for files.

Definition at line 86 of file BDSOutputROOT.hh.

Referenced by NewFile().

◆ theBeamOutputTree

TTree* BDSOutputROOT::theBeamOutputTree

private

Beam Tree.

Definition at line 90 of file BDSOutputROOT.hh.

Referenced by NewFile(), and WriteBeam().

◆ theEventOutputTree

TTree* BDSOutputROOT::theEventOutputTree

private

Event tree.

Definition at line 93 of file BDSOutputROOT.hh.

Referenced by NewFile(), UpdateSamplers(), and WriteFileEventLevel().

◆ theHeaderOutputTree

TTree* BDSOutputROOT::theHeaderOutputTree

private

Header Tree.

Definition at line 88 of file BDSOutputROOT.hh.

Referenced by NewFile(), WriteHeader(), and WriteHeaderEndOfFile().

◆ theModelOutputTree

TTree* BDSOutputROOT::theModelOutputTree

private

Model tree.

Definition at line 92 of file BDSOutputROOT.hh.

Referenced by NewFile(), and WriteModel().

◆ theOptionsOutputTree

TTree* BDSOutputROOT::theOptionsOutputTree

private

Options tree.

Definition at line 91 of file BDSOutputROOT.hh.

Referenced by NewFile(), and WriteOptions().

◆ theParticleDataTree

TTree* BDSOutputROOT::theParticleDataTree

private

Geant4 Data Tree.

Definition at line 89 of file BDSOutputROOT.hh.

Referenced by NewFile(), and WriteParticleData().

◆ theRootOutputFile

TFile* BDSOutputROOT::theRootOutputFile

private

Output file.

Definition at line 87 of file BDSOutputROOT.hh.

Referenced by Close(), NewFile(), WriteFileEventLevel(), and WriteFileRunLevel().

◆ theRunOutputTree

TTree* BDSOutputROOT::theRunOutputTree

private

Output histogram tree.

Definition at line 94 of file BDSOutputROOT.hh.

Referenced by NewFile(), and WriteFileRunLevel().

The documentation for this class was generated from the following files:

/__w/bdsim/bdsim/include/BDSOutputROOT.hh
/__w/bdsim/bdsim/src/BDSOutputROOT.cc

Public Member Functions

Private Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ BDSOutputROOT()

◆ ~BDSOutputROOT()

Member Function Documentation

◆ Close()

◆ CloseFile()

◆ NewFile()

◆ UpdateSamplers()

◆ WriteBeam()

◆ WriteFileEventLevel()

◆ WriteFileRunLevel()

◆ WriteHeader()

◆ WriteHeaderEndOfFile()

◆ WriteModel()

◆ WriteOptions()

◆ WriteParticleData()

Field Documentation

◆ compressionLevel

◆ theBeamOutputTree

◆ theEventOutputTree

◆ theHeaderOutputTree

◆ theModelOutputTree

◆ theOptionsOutputTree

◆ theParticleDataTree

◆ theRootOutputFile

◆ theRunOutputTree
