Extended logical volume with laser definition. More...

#include <BDSLogicalVolumeLaser.hh>

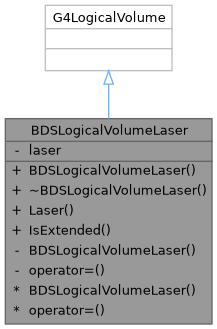

Inheritance diagram for BDSLogicalVolumeLaser:

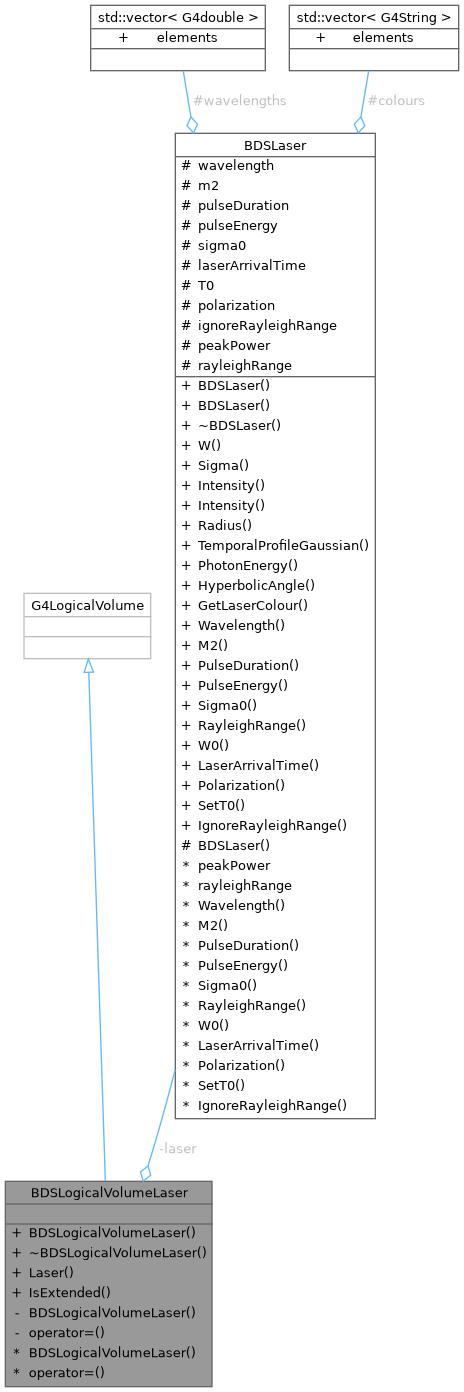

Collaboration diagram for BDSLogicalVolumeLaser:

Public Member Functions
	BDSLogicalVolumeLaser (G4VSolid solid, G4Material material, const G4String &name, const BDSLaser laserIn, G4FieldManager fieldManager=nullptr, G4VSensitiveDetector sensitiveDetector=nullptr, G4UserLimits userLimits=nullptr, G4bool optimise=true)

const BDSLaser *	Laser () const
	Access the laser.

virtual G4bool	IsExtended () const override
	Override flag function as to whether G4LogicalVolume is extended.

Private Member Functions

	BDSLogicalVolumeLaser (const BDSLogicalVolumeLaser &other)=delete
	Private copy and assignment constructors.

BDSLogicalVolumeLaser &	operator= (const BDSLogicalVolumeLaser &other)=delete
	Private copy and assignment constructors.

Private Attributes
BDSLaser *	laser
	Laser instance - owned by this class.

Detailed Description

Extended logical volume with laser definition.

Author: Laurie Nevay

Definition at line 37 of file BDSLogicalVolumeLaser.hh.

Constructor & Destructor Documentation

◆ BDSLogicalVolumeLaser()

BDSLogicalVolumeLaser::BDSLogicalVolumeLaser	(	G4VSolid *	solid,
		G4Material *	material,
		const G4String &	name,
		const BDSLaser *	laserIn,
		G4FieldManager *	fieldManager = `nullptr`,
		G4VSensitiveDetector *	sensitiveDetector = `nullptr`,
		G4UserLimits *	userLimits = `nullptr`,
		G4bool	optimise = `true`
	)

Definition at line 22 of file BDSLogicalVolumeLaser.cc.

◆ ~BDSLogicalVolumeLaser()

BDSLogicalVolumeLaser::~BDSLogicalVolumeLaser ( )

virtual

Definition at line 35 of file BDSLogicalVolumeLaser.cc.

Member Function Documentation

◆ IsExtended()

virtual G4bool BDSLogicalVolumeLaser::IsExtended ( ) const

inlineoverridevirtual

Override flag function as to whether G4LogicalVolume is extended.

Definition at line 55 of file BDSLogicalVolumeLaser.hh.

◆ Laser()

const BDSLaser * BDSLogicalVolumeLaser::Laser ( ) const

inline

Access the laser.

Definition at line 52 of file BDSLogicalVolumeLaser.hh.

References laser.

Field Documentation

◆ laser

BDSLaser* BDSLogicalVolumeLaser::laser

private

Laser instance - owned by this class.

Definition at line 64 of file BDSLogicalVolumeLaser.hh.

Referenced by Laser().

The documentation for this class was generated from the following files:

/__w/bdsim/bdsim/include/BDSLogicalVolumeLaser.hh
/__w/bdsim/bdsim/src/BDSLogicalVolumeLaser.cc
