Class to provide laser intensity at any point. More...

#include <BDSLaser.hh>

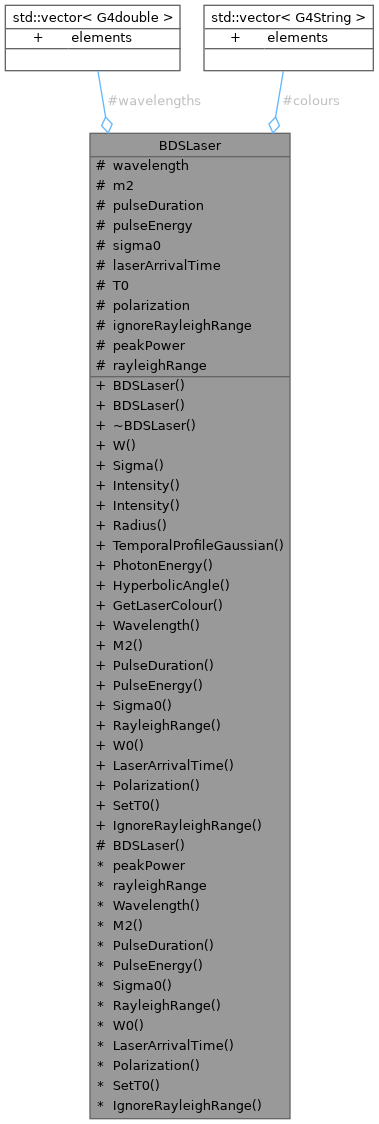

Collaboration diagram for BDSLaser:

Public Member Functions
	BDSLaser (G4double wavelengthIn, G4double m2In, G4double pulseDurationIn, G4double pulseEnergyIn, G4double sigma0In, G4double laserArrivalTimeIn, G4double T0In, const G4ThreeVector &polarizationIn, G4bool ignoreRayleighRangeIn=false)

	BDSLaser (G4double wavelengthIn)

G4double	W (G4double z) const

G4double	Sigma (G4double z) const

G4double	Intensity (G4double x, double y, double z) const

G4double	Intensity (const G4ThreeVector &xyz) const

G4double	Radius () const

G4double	TemporalProfileGaussian (G4double particleGlobalTime, G4double particleZCoord) const

G4double	PhotonEnergy (G4double particleGamma, G4double overlapAngle, G4double particleBeta) const

G4double	HyperbolicAngle () const

G4String	GetLaserColour () const


G4double	Wavelength () const
	Accessor.

G4double	M2 () const
	Accessor.

G4double	PulseDuration () const
	Accessor.

G4double	PulseEnergy () const
	Accessor.

G4double	Sigma0 () const
	Accessor.

G4double	RayleighRange () const
	Accessor.

G4double	W0 () const
	Accessor.

G4double	LaserArrivalTime () const
	Accessor.

G4ThreeVector	Polarization () const
	Accessor.

void	SetT0 (G4double T0In)
	Accessor.

G4bool	IgnoreRayleighRange () const
	Accessor.

Protected Attributes
G4double	wavelength

G4double	m2

G4double	pulseDuration

G4double	pulseEnergy

G4double	sigma0

G4double	laserArrivalTime

G4double	T0

G4ThreeVector	polarization

G4bool	ignoreRayleighRange


G4double	peakPower
	Calculated parameters.

G4double	rayleighRange
	Calculated parameters.

Static Protected Attributes
static const std::vector< G4double >	wavelengths

static const std::vector< G4String >	colours

Detailed Description

Class to provide laser intensity at any point.

Author: Siobhan Alden

Definition at line 35 of file BDSLaser.hh.

Constructor & Destructor Documentation

◆ BDSLaser() [1/2]

BDSLaser::BDSLaser	(	G4double	wavelengthIn,
		G4double	m2In,
		G4double	pulseDurationIn,
		G4double	pulseEnergyIn,
		G4double	sigma0In,
		G4double	laserArrivalTimeIn,
		G4double	T0In,
		const G4ThreeVector &	polarizationIn,
		G4bool	ignoreRayleighRangeIn = `false`
	)

Definition at line 53 of file BDSLaser.cc.

◆ BDSLaser() [2/2]

BDSLaser::BDSLaser ( G4double wavelengthIn )

explicit

Definition at line 78 of file BDSLaser.cc.

◆ ~BDSLaser()

BDSLaser::~BDSLaser ( )

Definition at line 88 of file BDSLaser.cc.

Member Function Documentation

◆ GetLaserColour()

G4String BDSLaser::GetLaserColour ( ) const

Definition at line 135 of file BDSLaser.cc.

◆ HyperbolicAngle()

G4double BDSLaser::HyperbolicAngle ( ) const

Definition at line 123 of file BDSLaser.cc.

◆ IgnoreRayleighRange()

G4bool BDSLaser::IgnoreRayleighRange ( ) const

inline

Accessor.

Definition at line 74 of file BDSLaser.hh.

◆ Intensity()

G4double BDSLaser::Intensity ( const G4ThreeVector & xyz ) const

Definition at line 102 of file BDSLaser.cc.

◆ LaserArrivalTime()

G4double BDSLaser::LaserArrivalTime ( ) const

inline

Accessor.

Definition at line 71 of file BDSLaser.hh.

◆ M2()

G4double BDSLaser::M2 ( ) const

inline

Accessor.

Definition at line 65 of file BDSLaser.hh.

◆ PhotonEnergy()

G4double BDSLaser::PhotonEnergy	(	G4double	particleGamma,
		G4double	overlapAngle,
		G4double	particleBeta
	)		const

Definition at line 115 of file BDSLaser.cc.

◆ Polarization()

G4ThreeVector BDSLaser::Polarization ( ) const

inline

Accessor.

Definition at line 72 of file BDSLaser.hh.

◆ PulseDuration()

G4double BDSLaser::PulseDuration ( ) const

inline

Accessor.

Definition at line 66 of file BDSLaser.hh.

◆ PulseEnergy()

G4double BDSLaser::PulseEnergy ( ) const

inline

Accessor.

Definition at line 67 of file BDSLaser.hh.

◆ Radius()

G4double BDSLaser::Radius ( ) const

Definition at line 110 of file BDSLaser.cc.

◆ RayleighRange()

G4double BDSLaser::RayleighRange ( ) const

inline

Accessor.

Definition at line 69 of file BDSLaser.hh.

References rayleighRange.

◆ SetT0()

void BDSLaser::SetT0 ( G4double T0In )

inline

Accessor.

Definition at line 73 of file BDSLaser.hh.

◆ Sigma()

G4double BDSLaser::Sigma ( G4double z ) const

inline

Definition at line 52 of file BDSLaser.hh.

◆ Sigma0()

G4double BDSLaser::Sigma0 ( ) const

inline

Accessor.

Definition at line 68 of file BDSLaser.hh.

◆ TemporalProfileGaussian()

G4double BDSLaser::TemporalProfileGaussian	(	G4double	particleGlobalTime,
		G4double	particleZCoord
	)		const

Definition at line 128 of file BDSLaser.cc.

◆ W()

G4double BDSLaser::W ( G4double z ) const

Definition at line 91 of file BDSLaser.cc.

◆ W0()

G4double BDSLaser::W0 ( ) const

inline

Accessor.

Definition at line 70 of file BDSLaser.hh.

◆ Wavelength()

G4double BDSLaser::Wavelength ( ) const

inline

Accessor.

Definition at line 64 of file BDSLaser.hh.

Field Documentation

◆ colours

const std::vector< G4String > BDSLaser::colours

staticprotected

Initial value:

= {"magenta",
"decapole",
"blue",
"muonspoiler",
"green",
"yellow",
"solenoid",
"red",
"quadrupole"}

Definition at line 43 of file BDSLaser.hh.

◆ ignoreRayleighRange

G4bool BDSLaser::ignoreRayleighRange

protected

Definition at line 88 of file BDSLaser.hh.

◆ laserArrivalTime

G4double BDSLaser::laserArrivalTime

protected

Definition at line 85 of file BDSLaser.hh.

◆ m2

G4double BDSLaser::m2

protected

Definition at line 81 of file BDSLaser.hh.

◆ peakPower

G4double BDSLaser::peakPower

protected

Calculated parameters.

Definition at line 94 of file BDSLaser.hh.

◆ polarization

G4ThreeVector BDSLaser::polarization

protected

Definition at line 87 of file BDSLaser.hh.

◆ pulseDuration

G4double BDSLaser::pulseDuration

protected

Definition at line 82 of file BDSLaser.hh.

◆ pulseEnergy

G4double BDSLaser::pulseEnergy

protected

Definition at line 83 of file BDSLaser.hh.

◆ rayleighRange

G4double BDSLaser::rayleighRange

protected

Calculated parameters.

Definition at line 95 of file BDSLaser.hh.

Referenced by RayleighRange().

◆ sigma0

G4double BDSLaser::sigma0

protected

Definition at line 84 of file BDSLaser.hh.

◆ T0

G4double BDSLaser::T0

protected

Definition at line 86 of file BDSLaser.hh.

◆ wavelength

G4double BDSLaser::wavelength

protected

Definition at line 80 of file BDSLaser.hh.

◆ wavelengths

const std::vector< G4double > BDSLaser::wavelengths

staticprotected

Initial value:

= {340.0*CLHEP::nanometer,
                425.0*CLHEP::nanometer,
                445.0*CLHEP::nanometer,
                520.0*CLHEP::nanometer,
                565.0*CLHEP::nanometer,
                590.0*CLHEP::nanometer,
                625.0*CLHEP::nanometer,
                740.0*CLHEP::nanometer}

Definition at line 34 of file BDSLaser.hh.

The documentation for this class was generated from the following files:

/__w/bdsim/bdsim/include/BDSLaser.hh
/__w/bdsim/bdsim/src/BDSLaser.cc
