Class that provides the magnetic field due to a cylinder of current. More...

#include <BDSFieldMagSolenoidSheet.hh>

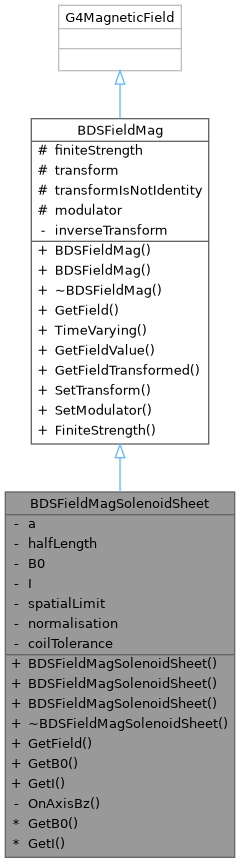

Inheritance diagram for BDSFieldMagSolenoidSheet:

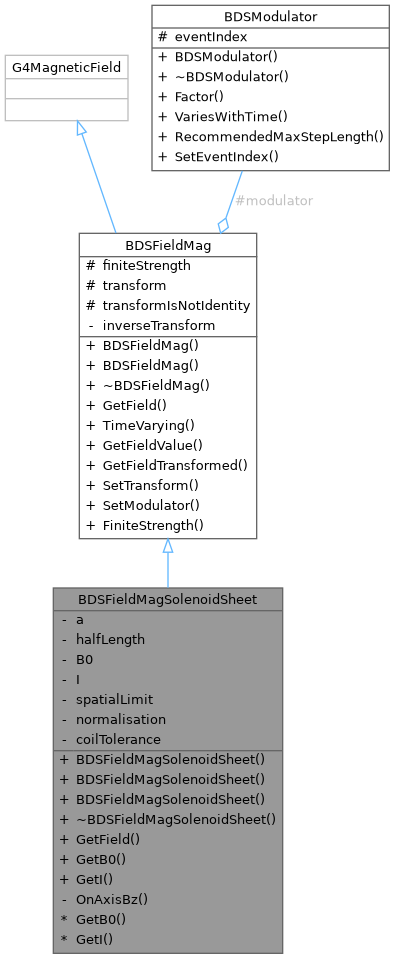

Collaboration diagram for BDSFieldMagSolenoidSheet:

Public Member Functions
	BDSFieldMagSolenoidSheet (BDSMagnetStrength const *strength, G4double radiusIn, G4double toleranceIn=0.0)

	BDSFieldMagSolenoidSheet (G4double strength, G4bool strengthIsCurrent, G4double sheetRadius, G4double fullLength, G4double toleranceIn=0.0)

virtual G4ThreeVector	GetField (const G4ThreeVector &position, const G4double t=0) const
	Calculate the field value.


G4double	GetB0 () const
	Accessor.

G4double	GetI () const
	Accessor.

Public Member Functions inherited from BDSFieldMag
	BDSFieldMag ()

	BDSFieldMag (G4Transform3D transformIn)

virtual G4bool	TimeVarying () const

virtual void	GetFieldValue (const G4double point[4], G4double *field) const

virtual G4ThreeVector	GetFieldTransformed (const G4ThreeVector &position, const G4double t) const
	Get the field value after applying transform for local offset.

virtual void	SetTransform (const G4Transform3D &transformIn)

void	SetModulator (BDSModulator *modulatorIn)
	Set the optional modulator.

G4bool	FiniteStrength () const
	Accessor.

Private Member Functions
G4double	OnAxisBz (G4double zp, G4double zm) const

Private Attributes
G4double	a

G4double	halfLength

G4double	B0

G4double	I

G4double	spatialLimit

G4double	normalisation

G4double	coilTolerance

Additional Inherited Members
Protected Attributes inherited from BDSFieldMag
G4bool	finiteStrength
	Flag to cache whether finite nor not.

G4Transform3D	transform
	Transform to apply for the field relative to the local coordinates of the geometry.

G4bool	transformIsNotIdentity
	Cache of whether to use transform at all.

BDSModulator *	modulator
	Optional modulator;.

Detailed Description

Class that provides the magnetic field due to a cylinder of current.

This follows the parameterisation and uses the algorithm for the generalised complete elliptical integral as described in:

Cylindrical Magnets and ideal Solenoids, N. Derby and S. Olbert, American Journal of Physics 78, 229 (2010); https://doi.org/10.1119/1.3256157 and also at https://arxiv.org/abs/0909.3880.

The field is calculated in cylindrical coordinates. A complete description is in the manual.

Author: Laurie Nevay

Definition at line 44 of file BDSFieldMagSolenoidSheet.hh.

Constructor & Destructor Documentation

◆ BDSFieldMagSolenoidSheet() [1/2]

BDSFieldMagSolenoidSheet::BDSFieldMagSolenoidSheet	(	BDSMagnetStrength const *	strength,
		G4double	radiusIn,
		G4double	toleranceIn = `0.0`
	)

This constructor uses the "field" and "length" parameters from the BDSMagnetStrength instance and forwards to the next constructor.

Definition at line 34 of file BDSFieldMagSolenoidSheet.cc.

◆ BDSFieldMagSolenoidSheet() [2/2]

BDSFieldMagSolenoidSheet::BDSFieldMagSolenoidSheet	(	G4double	strength,
		G4bool	strengthIsCurrent,
		G4double	sheetRadius,
		G4double	fullLength,
		G4double	toleranceIn = `0.0`
	)

More reasonable constructor for the internal parameterisation. 'strength' can be either B0 or I. This is interpreted via 'strengthIsCurrent'. Have to do this as the signature would be the same for either case.

Definition at line 39 of file BDSFieldMagSolenoidSheet.cc.

References BDSFieldMag::finiteStrength, and BDS::IsFinite().

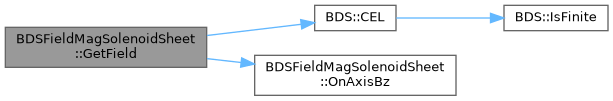

Here is the call graph for this function:
