BDSFieldMagSolenoidLoop Class Reference

Class that provides the magnetic field due to a cylinder of current. More...

#include <BDSFieldMagSolenoidLoop.hh>

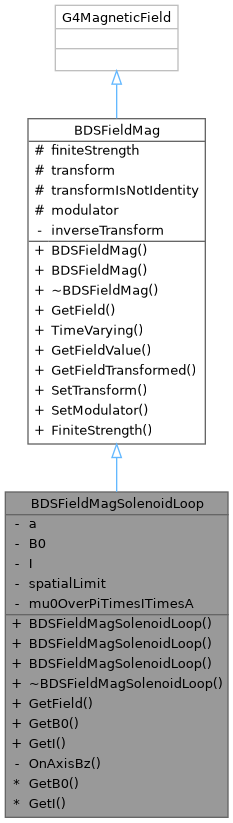

Inheritance diagram for BDSFieldMagSolenoidLoop:

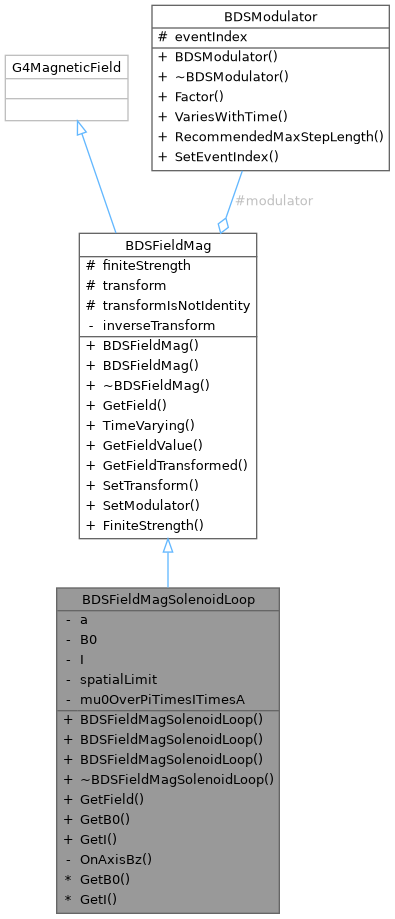

Collaboration diagram for BDSFieldMagSolenoidLoop:

Public Member Functions
	BDSFieldMagSolenoidLoop (G4double strength, G4bool strengthIsCurrent, G4double radiusIn)
	Explicit constructor. Strength can be either I or B0 as specified by 'strengthIsCurrent'.
	BDSFieldMagSolenoidLoop (BDSMagnetStrength const *strength, G4double radiusIn)
virtual G4ThreeVector	GetField (const G4ThreeVector &position, const G4double t=0) const
	Calculate the field value.
G4double	GetB0 () const
	Accessor.
G4double	GetI () const
	Accessor.
Public Member Functions inherited from BDSFieldMag
	BDSFieldMag ()
	BDSFieldMag (G4Transform3D transformIn)
virtual G4bool	TimeVarying () const
virtual void	GetFieldValue (const G4double point[4], G4double *field) const
virtual G4ThreeVector	GetFieldTransformed (const G4ThreeVector &position, const G4double t) const
	Get the field value after applying transform for local offset.
virtual void	SetTransform (const G4Transform3D &transformIn)
void	SetModulator (BDSModulator *modulatorIn)
	Set the optional modulator.
G4bool	FiniteStrength () const
	Accessor.

Private Member Functions
G4double	OnAxisBz (G4double zp, G4double zm) const

Private Attributes
G4double	a
G4double	B0
G4double	I
G4double	spatialLimit
G4double	mu0OverPiTimesITimesA

Additional Inherited Members
Protected Attributes inherited from BDSFieldMag
G4bool	finiteStrength
	Flag to cache whether finite nor not.
G4Transform3D	transform
	Transform to apply for the field relative to the local coordinates of the geometry.
G4bool	transformIsNotIdentity
	Cache of whether to use transform at all.
BDSModulator *	modulator
	Optional modulator;.

Detailed Description

Class that provides the magnetic field due to a cylinder of current.

This follows the parameterisation and uses the algorithm for the generalised complete elliptical integral as described in:

Cylindrical Magnets and ideal Solenoids, N. Derby and S. Olbert, American Journal of Physics 78, 229 (2010); https://doi.org/10.1119/1.3256157 and also at https://arxiv.org/abs/0909.3880.

The field is calculated in cylindrical coordinates. A complete description is in the manual.

The strength is effectively stored in the member variable mu0OverPiTimesITimesA, but I and B0 are accessible for inspection.

Author

Laurie Nevay

Definition at line 47 of file BDSFieldMagSolenoidLoop.hh.

Constructor & Destructor Documentation

BDSFieldMagSolenoidLoop() [1/2]

BDSFieldMagSolenoidLoop::BDSFieldMagSolenoidLoop	(	G4double	strength,
		G4bool	strengthIsCurrent,
		G4double	radiusIn
	)

Explicit constructor. Strength can be either I or B0 as specified by 'strengthIsCurrent'.

Definition at line 37 of file BDSFieldMagSolenoidLoop.cc.

References BDSFieldMag::finiteStrength, and BDS::IsFinite().

Here is the call graph for this function:

BDSFieldMagSolenoidLoop() [2/2]

BDSFieldMagSolenoidLoop::BDSFieldMagSolenoidLoop	(	BDSMagnetStrength const *	strength,
		G4double	radiusIn
	)

Alternative constructor for field factory that uses "field" (i.e. B) strength from the magnet strength instance.

Definition at line 32 of file BDSFieldMagSolenoidLoop.cc.

~BDSFieldMagSolenoidLoop()

virtual BDSFieldMagSolenoidLoop::~BDSFieldMagSolenoidLoop ( )

inlinevirtual

Definition at line 60 of file BDSFieldMagSolenoidLoop.hh.

Member Function Documentation

GetB0()

G4double BDSFieldMagSolenoidLoop::GetB0 ( ) const

inline

Accessor.

Definition at line 67 of file BDSFieldMagSolenoidLoop.hh.

GetField()

G4ThreeVector BDSFieldMagSolenoidLoop::GetField ( const G4ThreeVector &  position, const G4double  t = 0  ) const

virtual

Calculate the field value.

Implements BDSFieldMag.

Definition at line 64 of file BDSFieldMagSolenoidLoop.cc.

References BDS::CEL().

Here is the call graph for this function:

GetI()

G4double BDSFieldMagSolenoidLoop::GetI ( ) const

inline

Accessor.

Definition at line 68 of file BDSFieldMagSolenoidLoop.hh.

OnAxisBz()

G4double BDSFieldMagSolenoidLoop::OnAxisBz ( G4double  zp, G4double  zm  ) const

private

Approximation for rho=0 Bz field. Brho=0 by definition. zp and zm are z+halfLength and z-halfLength. Returns Bz.

Field Documentation

a

G4double BDSFieldMagSolenoidLoop::a

private

Definition at line 76 of file BDSFieldMagSolenoidLoop.hh.

B0

G4double BDSFieldMagSolenoidLoop::B0

private

Definition at line 77 of file BDSFieldMagSolenoidLoop.hh.

I

G4double BDSFieldMagSolenoidLoop::I

private

Definition at line 78 of file BDSFieldMagSolenoidLoop.hh.

mu0OverPiTimesITimesA

G4double BDSFieldMagSolenoidLoop::mu0OverPiTimesITimesA

private

Definition at line 80 of file BDSFieldMagSolenoidLoop.hh.

spatialLimit

G4double BDSFieldMagSolenoidLoop::spatialLimit

private

Definition at line 79 of file BDSFieldMagSolenoidLoop.hh.

---

The documentation for this class was generated from the following files:

• /__w/bdsim/bdsim/include/BDSFieldMagSolenoidLoop.hh
• /__w/bdsim/bdsim/src/BDSFieldMagSolenoidLoop.cc
