BDSFieldMagDipoleOuter Class Reference

A perfect magetic dipole in 3D, normal field inside 1/2 poleTipRadius. More...

#include <BDSFieldMagDipoleOuter.hh>

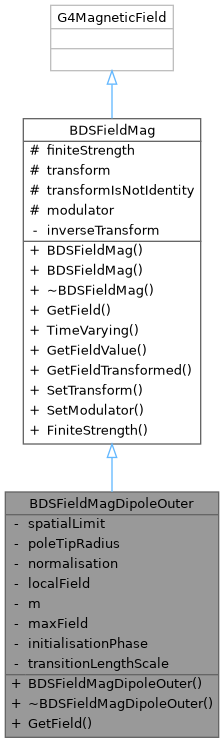

Inheritance diagram for BDSFieldMagDipoleOuter:

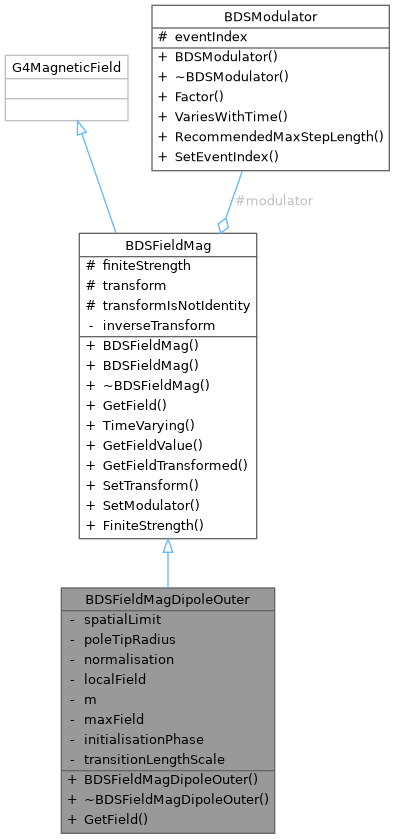

Collaboration diagram for BDSFieldMagDipoleOuter:

Public Member Functions
	BDSFieldMagDipoleOuter (const BDSMagnetStrength *strength, const G4double &poleTipRadius, G4double arbitraryScaling=1.0)
virtual G4ThreeVector	GetField (const G4ThreeVector &position, const double t=0) const
	Access the field value.
Public Member Functions inherited from BDSFieldMag
	BDSFieldMag ()
	BDSFieldMag (G4Transform3D transformIn)
virtual G4ThreeVector	GetField (const G4ThreeVector &position, const G4double t=0) const =0
virtual G4bool	TimeVarying () const
virtual void	GetFieldValue (const G4double point[4], G4double *field) const
virtual G4ThreeVector	GetFieldTransformed (const G4ThreeVector &position, const G4double t) const
	Get the field value after applying transform for local offset.
virtual void	SetTransform (const G4Transform3D &transformIn)
void	SetModulator (BDSModulator *modulatorIn)
	Set the optional modulator.
G4bool	FiniteStrength () const
	Accessor.

Private Attributes
G4double	spatialLimit
	Limit for getting too close to a current source.
G4double	poleTipRadius
	Used as radial limit for returning normal field.
G4double	normalisation
	Storage of the overal normalisation factor.
G4ThreeVector	localField
	Nominal dipole field.
G4ThreeVector	m
	Dipole moment as unit vector of field direction.
G4double	maxField
	Any field beyond this will curtailed to this value.
G4bool	initialisationPhase
	Need a way to control cludge normalisation behaviour during initial normalisation calculation.

Static Private Attributes
static G4double	transitionLengthScale = 1*CLHEP::cm

Additional Inherited Members
Protected Attributes inherited from BDSFieldMag
G4bool	finiteStrength
	Flag to cache whether finite nor not.
G4Transform3D	transform
	Transform to apply for the field relative to the local coordinates of the geometry.
G4bool	transformIsNotIdentity
	Cache of whether to use transform at all.
BDSModulator *	modulator
	Optional modulator;.

Detailed Description

A perfect magetic dipole in 3D, normal field inside 1/2 poleTipRadius.

Field for the far field of a pure magnetic dipole. Inside 0.5*poleTipRadius, the nominal uniform field is returned and tanh is used as a sigmoid function to smoothly vary between the two on a length scale of transitionLengthScale, which is 1cm by default.

Author

Laurie Nevay

Definition at line 44 of file BDSFieldMagDipoleOuter.hh.

Constructor & Destructor Documentation

BDSFieldMagDipoleOuter()

BDSFieldMagDipoleOuter::BDSFieldMagDipoleOuter	(	const BDSMagnetStrength *	strength,
		const G4double &	poleTipRadius,
		G4double	arbitraryScaling = 1.0
	)

Definition at line 34 of file BDSFieldMagDipoleOuter.cc.

~BDSFieldMagDipoleOuter()

virtual BDSFieldMagDipoleOuter::~BDSFieldMagDipoleOuter ( )

inlinevirtual

Definition at line 51 of file BDSFieldMagDipoleOuter.hh.

Member Function Documentation

GetField()

G4ThreeVector BDSFieldMagDipoleOuter::GetField ( const G4ThreeVector &  position, const double  t = 0  ) const

virtual

Access the field value.

Definition at line 66 of file BDSFieldMagDipoleOuter.cc.

References BDSFieldMag::finiteStrength, initialisationPhase, localField, m, maxField, normalisation, poleTipRadius, and spatialLimit.

Field Documentation

initialisationPhase

G4bool BDSFieldMagDipoleOuter::initialisationPhase

private

Need a way to control cludge normalisation behaviour during initial normalisation calculation.

Definition at line 64 of file BDSFieldMagDipoleOuter.hh.

Referenced by GetField().

localField

G4ThreeVector BDSFieldMagDipoleOuter::localField

private

Nominal dipole field.

Definition at line 61 of file BDSFieldMagDipoleOuter.hh.

Referenced by GetField().

m

G4ThreeVector BDSFieldMagDipoleOuter::m

private

Dipole moment as unit vector of field direction.

Definition at line 62 of file BDSFieldMagDipoleOuter.hh.

Referenced by GetField().

maxField

G4double BDSFieldMagDipoleOuter::maxField

private

Any field beyond this will curtailed to this value.

Definition at line 63 of file BDSFieldMagDipoleOuter.hh.

Referenced by GetField().

normalisation

G4double BDSFieldMagDipoleOuter::normalisation

private

Storage of the overal normalisation factor.

Definition at line 60 of file BDSFieldMagDipoleOuter.hh.

Referenced by GetField().

poleTipRadius

G4double BDSFieldMagDipoleOuter::poleTipRadius

private

Used as radial limit for returning normal field.

Definition at line 59 of file BDSFieldMagDipoleOuter.hh.

Referenced by GetField().

spatialLimit

G4double BDSFieldMagDipoleOuter::spatialLimit

private

Limit for getting too close to a current source.

Definition at line 58 of file BDSFieldMagDipoleOuter.hh.

Referenced by GetField().

transitionLengthScale

G4double BDSFieldMagDipoleOuter::transitionLengthScale = 1*CLHEP::cm

staticprivate

Definition at line 65 of file BDSFieldMagDipoleOuter.hh.

---

The documentation for this class was generated from the following files:

• /__w/bdsim/bdsim/include/BDSFieldMagDipoleOuter.hh
• /__w/bdsim/bdsim/src/BDSFieldMagDipoleOuter.cc
