Compare Namespace Reference

Comparison utility functions. More...

Functions
std::vector< Result * >	Files (TFile *f1, TFile *f2)
	Compare two files.
void	Directories (TDirectory *d1, TDirectory *d2, std::vector< Result * > &results)
void	Histograms (TH1 *h1, TH1 *h2, std::vector< Result * > &results)
	Compare two histogams.
void	Trees (TTree *t1, TTree *t2, std::vector< Result * > &results)
	Compare two TTrees.
void	Optics (TTree *t1, TTree *t2, std::vector< Result * > &results)
void	EventTree (TTree *t1, TTree *t2, std::vector< Result * > &results, const std::vector< std::string > &samplerNames, const std::vector< std::string > &samplerCNames, const std::vector< std::string > &samplerSNames)
void	Sampler (BDSOutputROOTEventSampler< double > *e1, BDSOutputROOTEventSampler< double > *e2, ResultEvent *results)
void	Sampler (BDSOutputROOTEventSampler< float > *e1, BDSOutputROOTEventSampler< float > *e2, ResultEvent *results)
template<typename T >
bool	Diff (const std::vector< T > &v1, std::vector< T > &v2, int i)
	Return true if they're different.
template<>
bool	Diff (const std::vector< bool > &v1, std::vector< bool > &v2, int i)
template<typename T >
bool	Diff (T v1, T v2)
template<>
bool	Diff (bool v1, bool v2)
void	PrintNoMatching (std::string className, std::string objectName)
bool	Summarise (const std::vector< Result * > &results)
	Loop over results and print any failed ones. Returns true if all passed.
bool	StringStartsWith (std::string aString, std::string prefix)
	Check whether a string is prefixed with another string.
bool	IsInVector (std::string key, const std::vector< std::string > &vec)
bool	NanOrInf (const double &val)
bool	GTEZero (const double &val)
bool	LTZero (const double &val)

Variables
static const double	Chi2Tolerance = 40
static const double	TreeTolerance = 0.05
static const double	OpticsSimgaTolerance = 10
static const double	EventTreeTolerance = 1e-10
bool	hasPrimaries
	Bool for checking if primaries were written to file.

Detailed Description

Comparison utility functions.

Author

Stewart Boogert

Function Documentation

Diff() [1/4]

template<>

bool Compare::Diff	(	bool	v1,
		bool	v2
	)

Definition at line 91 of file Compare.hh.

Diff() [2/4]

template<>

bool Compare::Diff	(	const std::vector< bool > &	v1,
		std::vector< bool > &	v2,
		int	i
	)

Definition at line 86 of file Compare.hh.

Diff() [3/4]

template<typename T >

bool Compare::Diff	(	const std::vector< T > &	v1,
		std::vector< T > &	v2,
		int	i
	)

Return true if they're different.

Definition at line 84 of file Compare.hh.

Diff() [4/4]

template<typename T >

bool Compare::Diff	(	T	v1,
		T	v2
	)

Definition at line 89 of file Compare.hh.

Directories()

void Compare::Directories	(	TDirectory *	d1,
		TDirectory *	d2,
		std::vector< Result * > &	results
	)

Compare two directories by changing into d1 and inspecting all objects. The results are recorded via a reference to a results vector. The original directory is changed back to at the end of the method.

Definition at line 61 of file Compare.cc.

References Directories(), hasPrimaries, Histograms(), Options::options, PrintNoMatching(), Options::SetBranchAddress(), and Trees().

Referenced by Directories(), and Files().

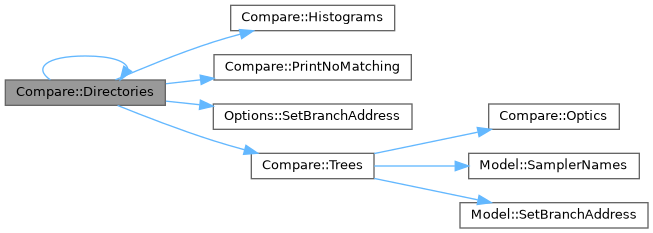

Here is the call graph for this function:

Here is the caller graph for this function:

EventTree()

void Compare::EventTree	(	TTree *	t1,
		TTree *	t2,
		std::vector< Result * > &	results,
		const std::vector< std::string > &	samplerNames,
		const std::vector< std::string > &	samplerCNames,
		const std::vector< std::string > &	samplerSNames
	)

Definition at line 419 of file Compare.cc.

Files()

std::vector< Result * > Compare::Files	(	TFile *	f1,
		TFile *	f2
	)

Compare two files.

Definition at line 53 of file Compare.cc.

References Directories().

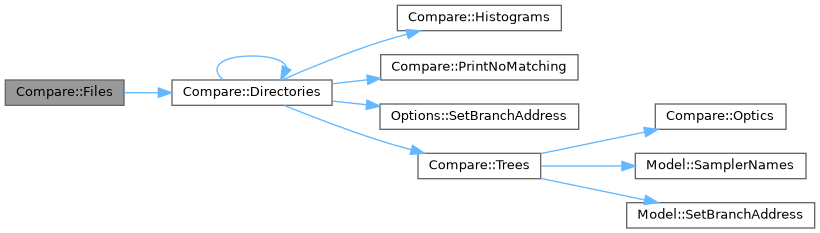

Here is the call graph for this function:

GTEZero()

bool Compare::GTEZero ( const double &  val )

inline

Definition at line 107 of file Compare.hh.

Histograms()

void Compare::Histograms	(	TH1 *	h1,
		TH1 *	h2,
		std::vector< Result * > &	results
	)

Compare two histogams.

Definition at line 134 of file Compare.cc.

References Result::name, Result::objtype, and Result::passed.

Referenced by Directories().

Here is the caller graph for this function:

IsInVector()

bool Compare::IsInVector	(	std::string	key,
		const std::vector< std::string > &	vec
	)

Definition at line 595 of file Compare.cc.

LTZero()

bool Compare::LTZero ( const double &  val )

inline

Definition at line 108 of file Compare.hh.

NanOrInf()

bool Compare::NanOrInf ( const double &  val )

inline

Definition at line 105 of file Compare.hh.

Optics()

void Compare::Optics	(	TTree *	t1,
		TTree *	t2,
		std::vector< Result * > &	results
	)

Compare an optics TTree specifically. This relies on the known variable names in the tree and naming scheme.

Definition at line 265 of file Compare.cc.

References Result::name, Result::objtype, and Result::passed.

Referenced by Trees().

Here is the caller graph for this function:

PrintNoMatching()

void Compare::PrintNoMatching	(	std::string	className,
		std::string	objectName
	)

Simply print out feedback warning that a matching object wasn't found and no comparison is being done.

Definition at line 576 of file Compare.cc.

Referenced by Directories().

Here is the caller graph for this function:

Sampler()

void Compare::Sampler	(	BDSOutputROOTEventSampler< double > *	e1,
		BDSOutputROOTEventSampler< double > *	e2,
		ResultEvent *	results
	)

Definition at line 489 of file Compare.cc.

StringStartsWith()

bool Compare::StringStartsWith	(	std::string	aString,
		std::string	prefix
	)

Check whether a string is prefixed with another string.

Definition at line 581 of file Compare.cc.

Trees()

void Compare::Trees	(	TTree *	t1,
		TTree *	t2,
		std::vector< Result * > &	results
	)

Compare two TTrees.

Definition at line 183 of file Compare.cc.

References Result::name, Result::objtype, Optics(), Result::passed, Model::SamplerNames(), and Model::SetBranchAddress().

Referenced by Directories().

Here is the call graph for this function:

Here is the caller graph for this function:

Variable Documentation

Chi2Tolerance

const double Compare::Chi2Tolerance = 40

static

Definition at line 42 of file Compare.hh.

EventTreeTolerance

const double Compare::EventTreeTolerance = 1e-10

static

Definition at line 45 of file Compare.hh.

hasPrimaries

bool Compare::hasPrimaries

Bool for checking if primaries were written to file.

Definition at line 111 of file Compare.hh.

Referenced by Directories().

OpticsSimgaTolerance

const double Compare::OpticsSimgaTolerance = 10

static

Definition at line 44 of file Compare.hh.

TreeTolerance

const double Compare::TreeTolerance = 0.05

static

Definition at line 43 of file Compare.hh.
