HistogramMeanFromFile Class Reference

Accumulator to merge pre-made per-entry histograms. More...

#include <HistogramMeanFromFile.hh>

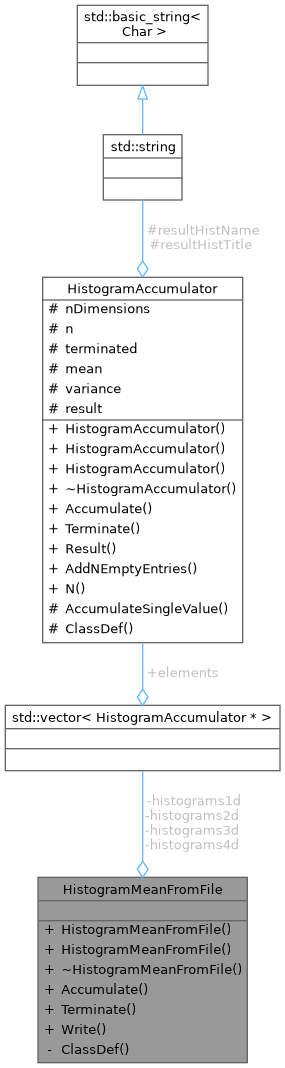

Collaboration diagram for HistogramMeanFromFile:

Public Member Functions
	HistogramMeanFromFile ()
	Public constructor only for compatibility with ROOT - not indended for use.
	HistogramMeanFromFile (BDSOutputROOTEventHistograms *h)
	Use this constructor.
void	Accumulate (BDSOutputROOTEventHistograms *hNew)
void	Terminate ()
	Finish calculation.
void	Write (TDirectory *dir=nullptr)
	Write to file.

Private Member Functions
	ClassDef (HistogramMeanFromFile, 1)

Private Attributes
std::vector< HistogramAccumulator * >	histograms1d
std::vector< HistogramAccumulator * >	histograms2d
std::vector< HistogramAccumulator * >	histograms3d
std::vector< HistogramAccumulator * >	histograms4d

Detailed Description

Accumulator to merge pre-made per-entry histograms.

Operate on a stored series of histograms to merge them. Single use only.

Author

Stewart Boogert.

Definition at line 41 of file HistogramMeanFromFile.hh.

Constructor & Destructor Documentation

HistogramMeanFromFile()

HistogramMeanFromFile::HistogramMeanFromFile

(

BDSOutputROOTEventHistograms *

h

)

Use this constructor.

Definition at line 41 of file HistogramMeanFromFile.cc.

References Accumulate(), BDSOutputROOTEventHistograms::Get1DHistograms(), BDSOutputROOTEventHistograms::Get2DHistograms(), BDSOutputROOTEventHistograms::Get3DHistograms(), and BDSOutputROOTEventHistograms::Get4DHistograms().

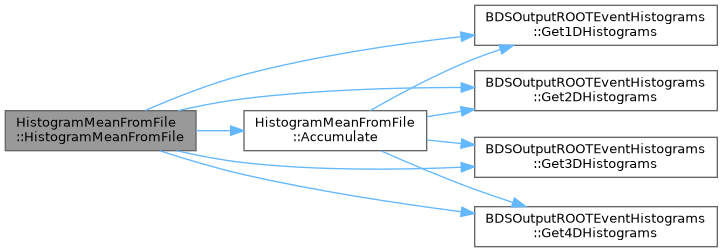

Here is the call graph for this function:

~HistogramMeanFromFile()

HistogramMeanFromFile::~HistogramMeanFromFile ( )

virtual

Definition at line 74 of file HistogramMeanFromFile.cc.

Member Function Documentation

Accumulate()

void HistogramMeanFromFile::Accumulate

(

BDSOutputROOTEventHistograms *

hNew

)

Add a new set of histograms to the running total. Assume exact same structure in BDSOutputROOTEventHistogams input.

Definition at line 86 of file HistogramMeanFromFile.cc.

References BDSOutputROOTEventHistograms::Get1DHistograms(), BDSOutputROOTEventHistograms::Get2DHistograms(), BDSOutputROOTEventHistograms::Get3DHistograms(), and BDSOutputROOTEventHistograms::Get4DHistograms().

Referenced by HistogramMeanFromFile(), EventAnalysis::Process(), and RunAnalysis::Process().

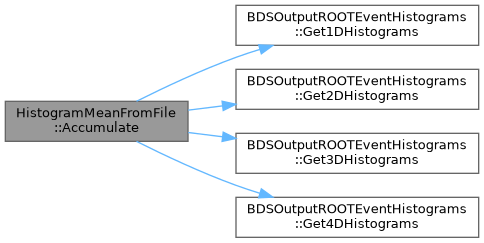

Here is the call graph for this function:

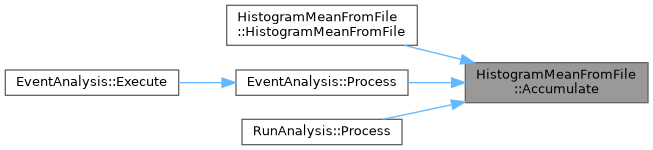

Here is the caller graph for this function:

Terminate()

void HistogramMeanFromFile::Terminate

(

)

Finish calculation.

Definition at line 102 of file HistogramMeanFromFile.cc.

Referenced by Analysis::Terminate().

Here is the caller graph for this function:

Write()

void HistogramMeanFromFile::Write

(

TDirectory *

dir = nullptr

)

Write to file.

Definition at line 116 of file HistogramMeanFromFile.cc.

Referenced by Analysis::Write().

Here is the caller graph for this function:

Field Documentation

histograms1d

std::vector<HistogramAccumulator*> HistogramMeanFromFile::histograms1d

private

Definition at line 64 of file HistogramMeanFromFile.hh.

histograms2d

std::vector<HistogramAccumulator*> HistogramMeanFromFile::histograms2d

private

Definition at line 65 of file HistogramMeanFromFile.hh.

histograms3d

std::vector<HistogramAccumulator*> HistogramMeanFromFile::histograms3d

private

Definition at line 66 of file HistogramMeanFromFile.hh.

histograms4d

std::vector<HistogramAccumulator*> HistogramMeanFromFile::histograms4d

private

Definition at line 67 of file HistogramMeanFromFile.hh.

---

The documentation for this class was generated from the following files:

• /__w/bdsim/bdsim/analysis/HistogramMeanFromFile.hh
• /__w/bdsim/bdsim/analysis/HistogramMeanFromFile.cc
