HistSparse1D< T > Class Template Reference

Sparse 1D histogram based on a map. More...

#include <HistSparse1D.hh>

Inheritance diagram for HistSparse1D< T >:

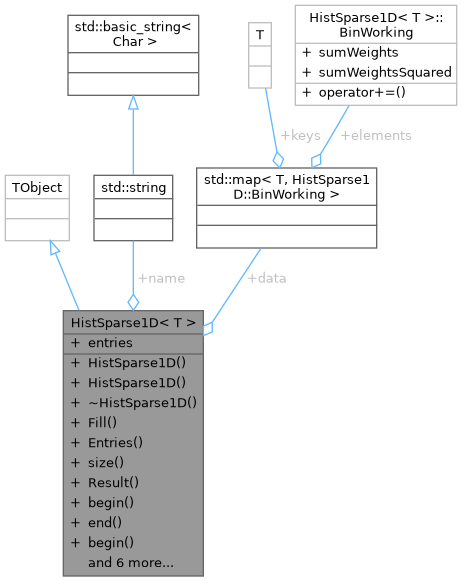

Collaboration diagram for HistSparse1D< T >:

Data Structures
struct	Bin
struct	BinWorking

Public Types
typedef std::map< T, BinWorking >::iterator	iterator
	Iterator mechanics.
typedef std::map< T, BinWorking >::const_iterator	const_iterator

Public Member Functions
	HistSparse1D ()
	Public constructor only for compatibility with ROOT - not intended for use.
	HistSparse1D (const std::string &nameIn)
	Use this constructor.
void	Fill (T x, double weight=1.0)
long long int	Entries () const
size_t	size () const
std::map< T, Bin >	Result () const
iterator	begin ()
iterator	end ()
const_iterator	begin () const
const_iterator	end () const
bool	empty () const
BinWorking &	operator[] (const long long int key)
const BinWorking &	operator[] (const long long int key) const
bool	HasAbscissa (T value) const
	ClassDef (HistSparse1D, 1)

Data Fields
std::string	name
std::map< T, BinWorking >	data
long long int	entries

Detailed Description

template<class T>
class HistSparse1D< T >

Sparse 1D histogram based on a map.

Simple implementation for what we need. ROOT's THnSparse is really complicated and couldn't get to work - overly complex for what we need. Boost histograms are better but we don't have a dependency on that yet, so for now a super simple one of our own.

This doesn't have any limits and just accumulates for each unique key forming a set of keys.

Author

L. Nevay

Definition at line 44 of file HistSparse1D.hh.

Member Typedef Documentation

const_iterator

template<class T >

typedef std::map<T,BinWorking>::const_iterator HistSparse1D< T >::const_iterator

Definition at line 106 of file HistSparse1D.hh.

iterator

template<class T >

typedef std::map<T,BinWorking>::iterator HistSparse1D< T >::iterator

Iterator mechanics.

Definition at line 105 of file HistSparse1D.hh.

Constructor & Destructor Documentation

HistSparse1D()

template<class T >

HistSparse1D< T >::HistSparse1D ( const std::string &  nameIn )

inlineexplicit

Use this constructor.

Definition at line 51 of file HistSparse1D.hh.

~HistSparse1D()

template<class T >

HistSparse1D< T >::~HistSparse1D ( )

virtual

Definition at line 30 of file HistSparse1D.cc.

Member Function Documentation

begin() [1/2]

template<class T >

iterator HistSparse1D< T >::begin ( )

inline

Definition at line 107 of file HistSparse1D.hh.

begin() [2/2]

template<class T >

const_iterator HistSparse1D< T >::begin ( ) const

inline

Definition at line 109 of file HistSparse1D.hh.

empty()

template<class T >

bool HistSparse1D< T >::empty ( ) const

inline

Definition at line 111 of file HistSparse1D.hh.

end() [1/2]

template<class T >

iterator HistSparse1D< T >::end ( )

inline

Definition at line 108 of file HistSparse1D.hh.

end() [2/2]

template<class T >

const_iterator HistSparse1D< T >::end ( ) const

inline

Definition at line 110 of file HistSparse1D.hh.

Entries()

template<class T >

long long int HistSparse1D< T >::Entries ( ) const

inline

Definition at line 89 of file HistSparse1D.hh.

Fill()

template<class T >

void HistSparse1D< T >::Fill ( T  x, double  weight = 1.0  )

inline

Definition at line 82 of file HistSparse1D.hh.

HasAbscissa()

template<class T >

bool HistSparse1D< T >::HasAbscissa ( T  value ) const

inline

Definition at line 116 of file HistSparse1D.hh.

operator[]() [1/2]

template<class T >

BinWorking & HistSparse1D< T >::operator[] ( const long long int  key )

inline

Definition at line 113 of file HistSparse1D.hh.

operator[]() [2/2]

template<class T >

const BinWorking & HistSparse1D< T >::operator[] ( const long long int  key ) const

inline

Definition at line 114 of file HistSparse1D.hh.

Result()

template<class T >

std::map< T, Bin > HistSparse1D< T >::Result ( ) const

inline

Definition at line 91 of file HistSparse1D.hh.

size()

template<class T >

size_t HistSparse1D< T >::size ( ) const

inline

Definition at line 90 of file HistSparse1D.hh.

Field Documentation

data

template<class T >

std::map<T, BinWorking> HistSparse1D< T >::data

Definition at line 119 of file HistSparse1D.hh.

entries

template<class T >

long long int HistSparse1D< T >::entries

Definition at line 120 of file HistSparse1D.hh.

name

template<class T >

std::string HistSparse1D< T >::name

Definition at line 118 of file HistSparse1D.hh.

---

The documentation for this class was generated from the following files:

• /__w/bdsim/bdsim/analysis/HistSparse1D.hh
• /__w/bdsim/bdsim/analysis/HistSparse1D.cc
