Factory for rectangular tunnel segments above ground. More...

#include <BDSTunnelFactoryRectAboveGround.hh>

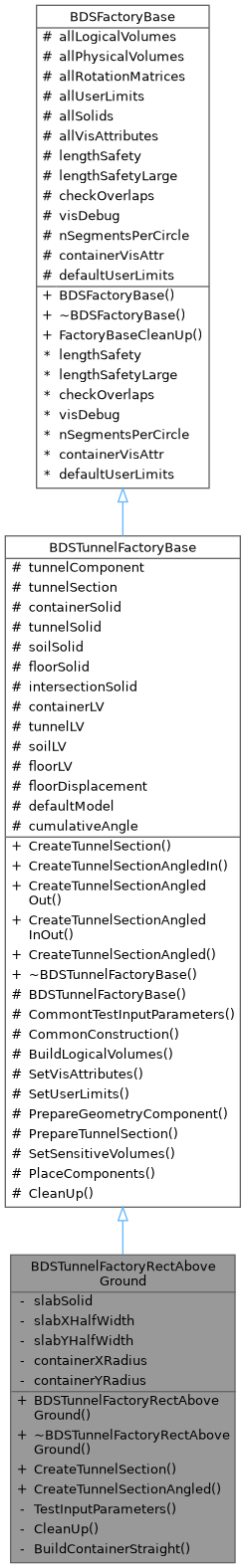

Inheritance diagram for BDSTunnelFactoryRectAboveGround:

Collaboration diagram for BDSTunnelFactoryRectAboveGround:

Public Member Functions
virtual BDSTunnelSection *	CreateTunnelSection (G4String name, G4double length, G4double tunnelThickness, G4double tunnelSoilThickness, G4Material tunnelMaterial, G4Material tunnelSoilMaterial, G4bool tunnelFloor, G4double tunnelFloorOffset, G4double tunnel1, G4double tunnel2, G4bool visible)
	Create a tunnel section with flat input and output faces.

virtual BDSTunnelSection *	CreateTunnelSectionAngled (G4String name, G4double length, G4ThreeVector inputFace, G4ThreeVector outputFace, G4double tunnelThickness, G4double tunnelSoilThickness, G4Material tunnelMaterial, G4Material tunnelSoilMaterial, G4bool tunnelFloor, G4double tunnelFloorOffset, G4double tunnel1, G4double tunnel2, G4bool visible)
	Create a tunnel section with an angled input and output face.

Public Member Functions inherited from BDSTunnelFactoryBase
virtual BDSTunnelSection *	CreateTunnelSectionAngledIn (G4String name, G4double length, G4double angleIn, G4double tunnelThickness, G4double tunnelSoilThickness, G4Material tunnelMaterial, G4Material tunnelSoilMaterial, G4bool tunnelFloor, G4double tunnelFloorOffset, G4double tunnel1, G4double tunnel2, G4bool visible)

virtual BDSTunnelSection *	CreateTunnelSectionAngledOut (G4String name, G4double length, G4double angleOut, G4double tunnelThickness, G4double tunnelSoilThickness, G4Material tunnelMaterial, G4Material tunnelSoilMaterial, G4bool tunnelFloor, G4double tunnelFloorOffset, G4double tunnel1, G4double tunnel2, G4bool visible)

virtual BDSTunnelSection *	CreateTunnelSectionAngledInOut (G4String name, G4double length, G4double angleIn, G4double angleOut, G4double tunnelThickness, G4double tunnelSoilThickness, G4Material tunnelMaterial, G4Material tunnelSoilMaterial, G4bool tunnelFloor, G4double tunnelFloorOffset, G4double tunnel1, G4double tunnel2, G4bool visible)

virtual	~BDSTunnelFactoryBase ()
	Virtual base destructor.

Public Member Functions inherited from BDSFactoryBase
virtual void	FactoryBaseCleanUp ()
	Empty containers for next use - factories are never deleted so can't rely on scope.

Private Member Functions
void	TestInputParameters (G4double &length, G4double &tunnelThickness, G4double &tunnelSoilThickness, G4Material &tunnelMaterial, G4Material &tunnelSoildMaterial, G4double &tunnel1, G4double &tunnel2)
	functions below here are private to this particular factory

virtual void	CleanUp ()

G4VSolid *	BuildContainerStraight (G4String name, G4double lengthIn, G4double tunnel1, G4double tunnel2, G4double tunnelThickness, G4ThreeVector slabDisplacement)

Private Attributes
G4VSolid *	slabSolid

G4double	slabXHalfWidth

G4double	slabYHalfWidth

G4double	containerXRadius

G4double	containerYRadius

Additional Inherited Members
Protected Member Functions inherited from BDSTunnelFactoryBase
	BDSTunnelFactoryBase ()
	protected default constructor so only derived classes can use it

void	CommontTestInputParameters (G4double &length, G4double &tunnelThickness, G4double &tunnelSoilThickness, G4Material &tunnelMaterial, G4Material &tunnelSoilMaterial)

virtual void	CommonConstruction (G4String name, G4Material tunnelMaterial, G4Material tunnelSoilMaterial, G4double length, G4double containerXRadius, G4double contianerYRadius, G4bool visible)

virtual void	BuildLogicalVolumes (G4String name, G4Material tunnelMaterial, G4Material tunnelSoilMaterial)
	Build logical volumes from solids + materials.

virtual void	SetVisAttributes (G4bool visible)
	Set the visual attributes for each logical volume.

virtual void	SetUserLimits ()
	Set user limits for all logical volumes in the tunnel section.

virtual void	PrepareGeometryComponent (G4double containerXRadius, G4double containerYRadius, G4double containerZRadius)
	Prepare the assembled geometry component.

virtual void	PrepareTunnelSection (G4String name, G4double chordLength)
	Prepare the output BDSTunnelSection instance.

virtual void	SetSensitiveVolumes ()
	Set the sensitive volumes.

virtual void	PlaceComponents (G4String name)
	Place components in container volume.

Protected Attributes inherited from BDSTunnelFactoryBase
BDSGeometryComponent *	tunnelComponent

BDSTunnelSection *	tunnelSection

G4VSolid *	containerSolid

G4VSolid *	tunnelSolid

G4VSolid *	soilSolid

G4VSolid *	floorSolid

G4VSolid *	intersectionSolid

G4LogicalVolume *	containerLV

G4LogicalVolume *	tunnelLV

G4LogicalVolume *	soilLV

G4LogicalVolume *	floorLV

G4ThreeVector	floorDisplacement

BDSTunnelInfo *	defaultModel

G4double	cumulativeAngle

Protected Attributes inherited from BDSFactoryBase
std::set< G4LogicalVolume * >	allLogicalVolumes

std::set< G4VPhysicalVolume * >	allPhysicalVolumes

std::set< G4RotationMatrix * >	allRotationMatrices

std::set< G4UserLimits * >	allUserLimits

std::set< G4VSolid * >	allSolids

std::set< G4VisAttributes * >	allVisAttributes

G4double	lengthSafety
	Cache of global constants variable.

G4double	lengthSafetyLarge
	Cache of global constants variable.

G4bool	checkOverlaps
	Cache of global constants variable.

G4bool	visDebug
	Cache of global constants variable.

G4int	nSegmentsPerCircle
	Cache of global constants variable.

G4VisAttributes *	containerVisAttr
	Cache of global constants variable.

G4UserLimits *	defaultUserLimits
	Cache of global constants variable.

Detailed Description

Factory for rectangular tunnel segments above ground.

There is no soil. Builds tunnel, floor (optional) and concrete slab that it all sits on.

Author: Laurie Nevay

Definition at line 39 of file BDSTunnelFactoryRectAboveGround.hh.

Constructor & Destructor Documentation

◆ BDSTunnelFactoryRectAboveGround()

BDSTunnelFactoryRectAboveGround::BDSTunnelFactoryRectAboveGround ( )

Definition at line 40 of file BDSTunnelFactoryRectAboveGround.cc.

◆ ~BDSTunnelFactoryRectAboveGround()

virtual BDSTunnelFactoryRectAboveGround::~BDSTunnelFactoryRectAboveGround ( )

inlinevirtual

Definition at line 43 of file BDSTunnelFactoryRectAboveGround.hh.

Member Function Documentation

◆ BuildContainerStraight()

G4VSolid * BDSTunnelFactoryRectAboveGround::BuildContainerStraight	(	G4String	name,
		G4double	lengthIn,
		G4double	tunnel1,
		G4double	tunnel2,
		G4double	tunnelThickness,
		G4ThreeVector	slabDisplacement
	)

private

Definition at line 236 of file BDSTunnelFactoryRectAboveGround.cc.

◆ CleanUp()

void BDSTunnelFactoryRectAboveGround::CleanUp ( )

privatevirtual

Reset factory members for next usage - avoids previously constructed parts being accidently used in new object

Reimplemented from BDSTunnelFactoryBase.

Definition at line 49 of file BDSTunnelFactoryRectAboveGround.cc.

References BDSTunnelFactoryBase::CleanUp().

Referenced by CreateTunnelSection(), and CreateTunnelSectionAngled().

Here is the call graph for this function:

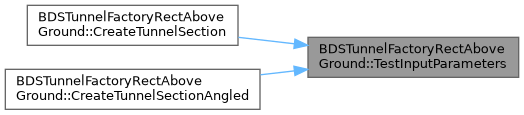

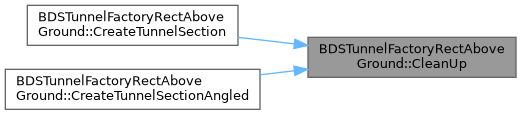

Here is the caller graph for this function:

◆ CreateTunnelSection()

BDSTunnelSection * BDSTunnelFactoryRectAboveGround::CreateTunnelSection	(	G4String	name,
		G4double	length,
		G4double	tunnelThickness,
		G4double	tunnelSoilThickness,
		G4Material *	tunnelMaterial,
		G4Material *	tunnelSoilMaterial,
		G4bool	tunnelFloor,
		G4double	tunnelFloorOffset,
		G4double	tunnel1,
		G4double	tunnel2,
		G4bool	visible
	)

virtual

Create a tunnel section with flat input and output faces.

Implements BDSTunnelFactoryBase.

Definition at line 57 of file BDSTunnelFactoryRectAboveGround.cc.

References CleanUp(), BDSFactoryBase::lengthSafety, and TestInputParameters().

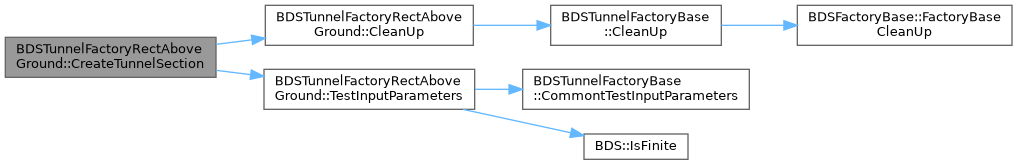

Here is the call graph for this function:

◆ CreateTunnelSectionAngled()

BDSTunnelSection * BDSTunnelFactoryRectAboveGround::CreateTunnelSectionAngled	(	G4String	name,
		G4double	length,
		G4ThreeVector	inputFace,
		G4ThreeVector	outputFace,
		G4double	tunnelThickness,
		G4double	tunnelSoilThickness,
		G4Material *	tunnelMaterial,
		G4Material *	tunnelSoilMaterial,
		G4bool	tunnelFloor,
		G4double	tunnelFloorOffset,
		G4double	tunnel1,
		G4double	tunnel2,
		G4bool	visible
	)

virtual

Create a tunnel section with an angled input and output face.

Implements BDSTunnelFactoryBase.

Definition at line 124 of file BDSTunnelFactoryRectAboveGround.cc.

References CleanUp(), BDSFactoryBase::lengthSafety, and TestInputParameters().

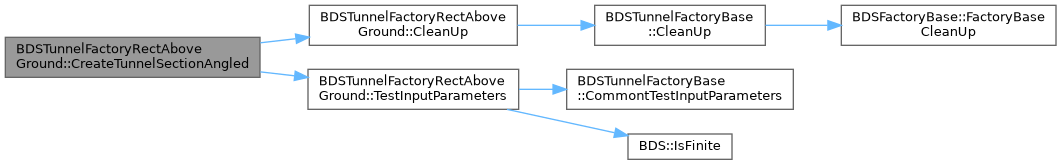

Here is the call graph for this function:

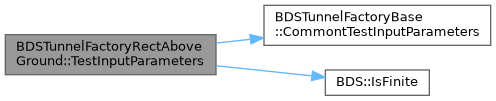

◆ TestInputParameters()

void BDSTunnelFactoryRectAboveGround::TestInputParameters	(	G4double &	length,
		G4double &	tunnelThickness,
		G4double &	tunnelSoilThickness,
		G4Material *&	tunnelMaterial,
		G4Material *&	tunnelSoildMaterial,
		G4double &	tunnel1,
		G4double &	tunnel2
	)
