BDSScreenFrame Class Reference

A frame for the vacuum window in e.g. BDSMultilayerScreen. More...

#include <BDSScreenFrame.hh>

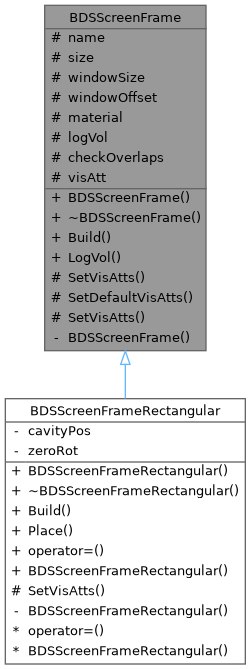

Inheritance diagram for BDSScreenFrame:

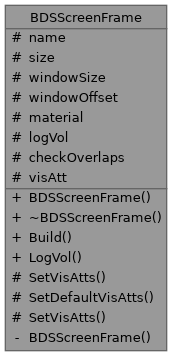

Collaboration diagram for BDSScreenFrame:

Public Member Functions
	BDSScreenFrame (G4String name, G4ThreeVector size, G4TwoVector windowSize, G4TwoVector windowOffset, G4Material *material)
virtual void	Build ()=0
	Build method to construct geometry.
G4LogicalVolume *	LogVol () const
	Accessor.

Protected Member Functions
virtual void	SetVisAtts ()
	Set the visual attributes to member logVol.
void	SetDefaultVisAtts ()
	Construct default visualisation attribute for light transparent grey.
void	SetVisAtts (G4LogicalVolume *logVolIn, G4VisAttributes *visAttsIn=nullptr)

Protected Attributes
G4String	name
G4ThreeVector	size
G4TwoVector	windowSize
G4TwoVector	windowOffset
G4Material *	material
G4LogicalVolume *	logVol
G4bool	checkOverlaps
	Cache of checking overlaps from global constants.
G4VisAttributes *	visAtt

Detailed Description

A frame for the vacuum window in e.g. BDSMultilayerScreen.

This is a virtual class and the derived class must implement Build() that ultimately sets the member logVol.

Author

Lawrence Deacon.

Definition at line 40 of file BDSScreenFrame.hh.

Constructor & Destructor Documentation

BDSScreenFrame()

BDSScreenFrame::BDSScreenFrame	(	G4String	name,
		G4ThreeVector	size,
		G4TwoVector	windowSize,
		G4TwoVector	windowOffset,
		G4Material *	material
	)

Definition at line 26 of file BDSScreenFrame.cc.

~BDSScreenFrame()

BDSScreenFrame::~BDSScreenFrame ( )

virtual

Definition at line 42 of file BDSScreenFrame.cc.

Member Function Documentation

Build()

virtual void BDSScreenFrame::Build ( )

pure virtual

Build method to construct geometry.

Implemented in BDSScreenFrameRectangular.

LogVol()

G4LogicalVolume * BDSScreenFrame::LogVol ( ) const

inline

Accessor.

Definition at line 55 of file BDSScreenFrame.hh.

SetDefaultVisAtts()

void BDSScreenFrame::SetDefaultVisAtts ( )

protected

Construct default visualisation attribute for light transparent grey.

Definition at line 48 of file BDSScreenFrame.cc.

References BDSColours::Instance().

Here is the call graph for this function:

SetVisAtts() [1/2]

void BDSScreenFrame::SetVisAtts ( )

protectedvirtual

Set the visual attributes to member logVol.

Reimplemented in BDSScreenFrameRectangular.

Definition at line 67 of file BDSScreenFrame.cc.

References SetVisAtts().

Referenced by SetVisAtts(), and BDSScreenFrameRectangular::SetVisAtts().

Here is the call graph for this function:

Here is the caller graph for this function:

SetVisAtts() [2/2]

void BDSScreenFrame::SetVisAtts ( G4LogicalVolume *  logVolIn, G4VisAttributes *  visAttsIn = nullptr  )

protected

Attach visualisation attributes to logical volume if they exist and if not use the default.

Definition at line 55 of file BDSScreenFrame.cc.

Field Documentation

checkOverlaps

G4bool BDSScreenFrame::checkOverlaps

protected

Cache of checking overlaps from global constants.

Definition at line 75 of file BDSScreenFrame.hh.

Referenced by BDSScreenFrameRectangular::Place().

logVol

G4LogicalVolume* BDSScreenFrame::logVol

protected

Definition at line 74 of file BDSScreenFrame.hh.

material

G4Material* BDSScreenFrame::material

protected

Definition at line 73 of file BDSScreenFrame.hh.

name

G4String BDSScreenFrame::name

protected

Definition at line 69 of file BDSScreenFrame.hh.

size

G4ThreeVector BDSScreenFrame::size

protected

Definition at line 70 of file BDSScreenFrame.hh.

visAtt

G4VisAttributes* BDSScreenFrame::visAtt

protected

Definition at line 76 of file BDSScreenFrame.hh.

windowOffset

G4TwoVector BDSScreenFrame::windowOffset

protected

Definition at line 72 of file BDSScreenFrame.hh.

windowSize

G4TwoVector BDSScreenFrame::windowSize

protected

Definition at line 71 of file BDSScreenFrame.hh.

---

The documentation for this class was generated from the following files:

• /__w/bdsim/bdsim/include/BDSScreenFrame.hh
• /__w/bdsim/bdsim/src/BDSScreenFrame.cc
