BDSSDFilterOr Class Reference

Filter that applies OR to a vector of filters. More...

#include <BDSSDFilterOr.hh>

Inheritance diagram for BDSSDFilterOr:

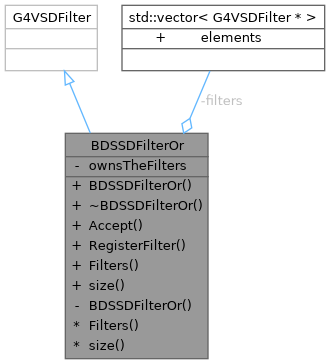

Collaboration diagram for BDSSDFilterOr:

Public Member Functions
	BDSSDFilterOr (const G4String &name, G4bool ownsTheFiltersIn=false)
virtual G4bool	Accept (const G4Step *step) const
void	RegisterFilter (G4VSDFilter *filterIn)
	Register the filter.
const std::vector< G4VSDFilter * > &	Filters () const
	Accessor.
size_t	size () const
	Accessor.

Private Attributes
G4bool	ownsTheFilters
	Whether to delete the filters or not at the end.
std::vector< G4VSDFilter * >	filters
	Vector of all filters.

Detailed Description

Filter that applies OR to a vector of filters.

Can optionally own the filters. If the ownsTheFiltersIn argument is true, they'll be deleted afterwards.

Author

Laurie Nevay

Definition at line 36 of file BDSSDFilterOr.hh.

Constructor & Destructor Documentation

BDSSDFilterOr()

BDSSDFilterOr::BDSSDFilterOr ( const G4String &  name, G4bool  ownsTheFiltersIn = false  )

explicit

Definition at line 27 of file BDSSDFilterOr.cc.

~BDSSDFilterOr()

BDSSDFilterOr::~BDSSDFilterOr ( )

virtual

Definition at line 33 of file BDSSDFilterOr.cc.

Member Function Documentation

Accept()

G4bool BDSSDFilterOr::Accept ( const G4Step *  step ) const

virtual

Return the logical OR of all filter's Accept() method. If no filters are registered, it will return false and not accept anything.

Definition at line 42 of file BDSSDFilterOr.cc.

References filters.

Filters()

const std::vector< G4VSDFilter * > & BDSSDFilterOr::Filters ( ) const

inline

Accessor.

Definition at line 51 of file BDSSDFilterOr.hh.

References filters.

RegisterFilter()

void BDSSDFilterOr::RegisterFilter ( G4VSDFilter *  filterIn )

inline

Register the filter.

Definition at line 48 of file BDSSDFilterOr.hh.

References filters.

Referenced by BDSSDManager::BDSSDManager().

Here is the caller graph for this function:

size()

size_t BDSSDFilterOr::size ( ) const

inline

Accessor.

Definition at line 52 of file BDSSDFilterOr.hh.

References filters.

Field Documentation

filters

std::vector<G4VSDFilter*> BDSSDFilterOr::filters

private

Vector of all filters.

Definition at line 62 of file BDSSDFilterOr.hh.

Referenced by Accept(), Filters(), RegisterFilter(), and size().

ownsTheFilters

G4bool BDSSDFilterOr::ownsTheFilters

private

Whether to delete the filters or not at the end.

Definition at line 59 of file BDSSDFilterOr.hh.

---

The documentation for this class was generated from the following files:

• /__w/bdsim/bdsim/include/BDSSDFilterOr.hh
• /__w/bdsim/bdsim/src/BDSSDFilterOr.cc
