BDSSDFilterAnd Class Reference

Filter that applies AND to a vector of filters. More...

#include <BDSSDFilterAnd.hh>

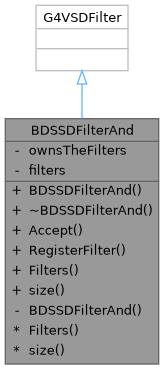

Inheritance diagram for BDSSDFilterAnd:

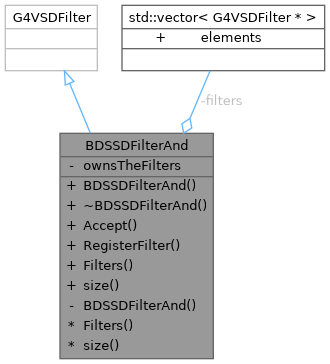

Collaboration diagram for BDSSDFilterAnd:

Public Member Functions
	BDSSDFilterAnd (const G4String &name, G4bool ownsTheFiltersIn=false)
virtual G4bool	Accept (const G4Step *step) const
void	RegisterFilter (G4VSDFilter *filterIn)
	Register the filter.
const std::vector< G4VSDFilter * > &	Filters () const
	Accessor.
size_t	size () const
	Accessor.

Private Attributes
G4bool	ownsTheFilters
	Whether to delete the filters or not at the end.
std::vector< G4VSDFilter * >	filters
	Vector of all filters.

Detailed Description

Filter that applies AND to a vector of filters.

Can optionally own the filters. If the ownsTheFiltersIn argument is true, they'll be deleted afterwards.

Author

Laurie Nevay

Definition at line 37 of file BDSSDFilterAnd.hh.

Constructor & Destructor Documentation

BDSSDFilterAnd()

BDSSDFilterAnd::BDSSDFilterAnd ( const G4String &  name, G4bool  ownsTheFiltersIn = false  )

explicit

Definition at line 29 of file BDSSDFilterAnd.cc.

~BDSSDFilterAnd()

BDSSDFilterAnd::~BDSSDFilterAnd ( )

virtual

Definition at line 35 of file BDSSDFilterAnd.cc.

Member Function Documentation

Accept()

G4bool BDSSDFilterAnd::Accept ( const G4Step *  step ) const

virtual

Return logical AND of all filters Accept(). If no filters are registered, it will return false and not accept anything.

Definition at line 44 of file BDSSDFilterAnd.cc.

References filters.

Filters()

const std::vector< G4VSDFilter * > & BDSSDFilterAnd::Filters ( ) const

inline

Accessor.

Definition at line 52 of file BDSSDFilterAnd.hh.

References filters.

RegisterFilter()

void BDSSDFilterAnd::RegisterFilter ( G4VSDFilter *  filterIn )

inline

Register the filter.

Definition at line 49 of file BDSSDFilterAnd.hh.

References filters.

Referenced by BDSScorerFactory::CreateFilter().

Here is the caller graph for this function:

size()

size_t BDSSDFilterAnd::size ( ) const

inline

Accessor.

Definition at line 53 of file BDSSDFilterAnd.hh.

References filters.

Referenced by BDSScorerFactory::CreateFilter().

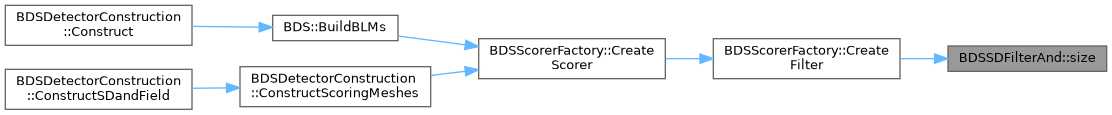

Here is the caller graph for this function:

Field Documentation

filters

std::vector<G4VSDFilter*> BDSSDFilterAnd::filters

private

Vector of all filters.

Definition at line 63 of file BDSSDFilterAnd.hh.

Referenced by Accept(), Filters(), RegisterFilter(), and size().

ownsTheFilters

G4bool BDSSDFilterAnd::ownsTheFilters

private

Whether to delete the filters or not at the end.

Definition at line 60 of file BDSSDFilterAnd.hh.

---

The documentation for this class was generated from the following files:

• /__w/bdsim/bdsim/include/BDSSDFilterAnd.hh
• /__w/bdsim/bdsim/src/BDSSDFilterAnd.cc
