Full set of coordinates for association with primary vertex. More...

#include <BDSPrimaryVertexInformation.hh>

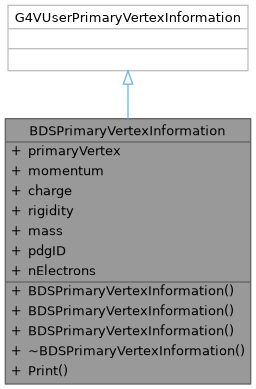

Inheritance diagram for BDSPrimaryVertexInformation:

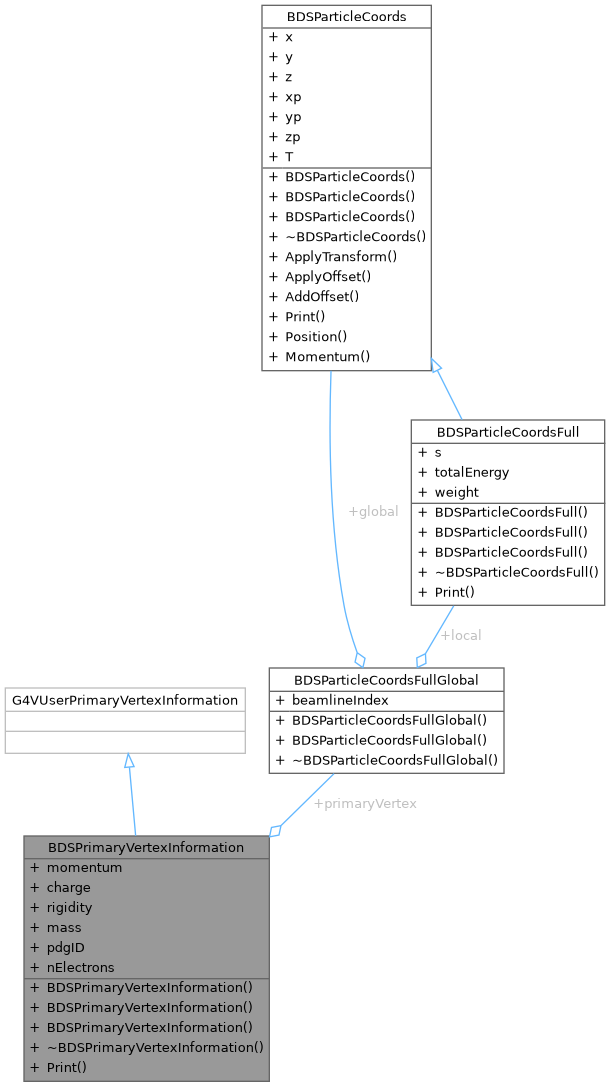

Collaboration diagram for BDSPrimaryVertexInformation:

Public Member Functions
	BDSPrimaryVertexInformation (const BDSParticleCoordsFullGlobal &primaryVertexIn, const BDSParticleDefinition *particle)

	BDSPrimaryVertexInformation (const BDSParticleCoordsFullGlobal &primaryVertexIn, G4double momentumIn, G4double chargeIn, G4double rigidityIn, G4double massIn, G4int pdgID, G4int nElectronsIn=0)

virtual void	Print () const
	Required implementation by virtual base class.

Data Fields
BDSParticleCoordsFullGlobal	primaryVertex
	Full set of coordinates.

G4double	momentum
	Magnitude of momentum.

G4double	charge
	Effective charge of primary.

G4double	rigidity
	Rigidity of particle at construction.

G4double	mass
	Mass of particle - recorded as G4Vertex doesn't take into account electrons.

G4int	pdgID
	Particle Data Group ID number.

G4int	nElectrons
	Number of electrons if partially stripped ion or atom.

Detailed Description

Full set of coordinates for association with primary vertex.

This stores a full set of coordinates in both the curvilinear and global Cartesian coordinate frame that can be associated with the G4PrimaryVertex for an event.

Author: Laurie Nevay

Definition at line 39 of file BDSPrimaryVertexInformation.hh.

Constructor & Destructor Documentation

◆ BDSPrimaryVertexInformation() [1/2]

BDSPrimaryVertexInformation::BDSPrimaryVertexInformation	(	const BDSParticleCoordsFullGlobal &	primaryVertexIn,
		const BDSParticleDefinition *	particle
	)

Definition at line 28 of file BDSPrimaryVertexInformation.cc.

◆ BDSPrimaryVertexInformation() [2/2]

BDSPrimaryVertexInformation::BDSPrimaryVertexInformation	(	const BDSParticleCoordsFullGlobal &	primaryVertexIn,
		G4double	momentumIn,
		G4double	chargeIn,
		G4double	rigidityIn,
		G4double	massIn,
		G4int	pdgID,
		G4int	nElectronsIn = `0`
	)
