Loader to read a specific sampler from a BDSIM ROOT output file. More...

#include <BDSPrimaryGeneratorFileSampler.hh>

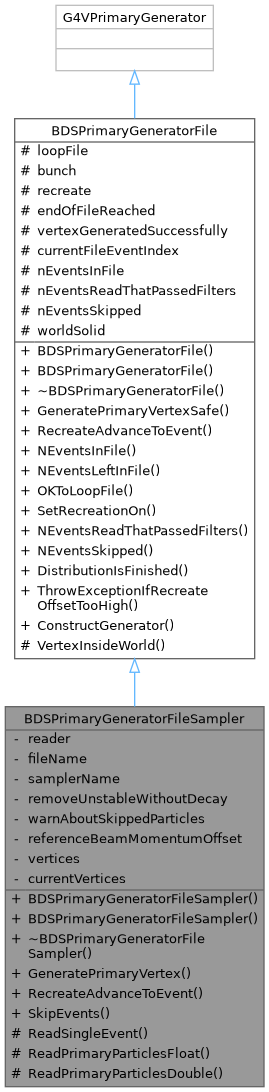

Inheritance diagram for BDSPrimaryGeneratorFileSampler:

Collaboration diagram for BDSPrimaryGeneratorFileSampler:

Data Structures
struct	DisplacedVertex

Public Member Functions
	BDSPrimaryGeneratorFileSampler ()=delete
	Do not require default constructor.

	BDSPrimaryGeneratorFileSampler (const G4String &distrType, const G4String &fileNameIn, BDSBunchEventGenerator *bunchIn, G4bool loopFileIn, G4bool removeUnstableWithoutDecayIn=true, G4bool warnAboutSkippedParticlesIn=true)

virtual void	GeneratePrimaryVertex (G4Event *anEvent)
	Read the next non-empty sampler entry from the file.

virtual void	RecreateAdvanceToEvent (G4int eventOffset)
	Advance to the correct event number in the file for recreation.

void	SkipEvents (G4long nEventsToSkip)

Public Member Functions inherited from BDSPrimaryGeneratorFile
	BDSPrimaryGeneratorFile (G4bool loopFileIn, BDSBunchEventGenerator *bunchIn)

G4bool	GeneratePrimaryVertexSafe (G4Event *event)
	Return false if not able to generate a primary vertex.

G4long	NEventsInFile () const

G4long	NEventsLeftInFile () const

G4bool	OKToLoopFile () const

void	SetRecreationOn ()

G4long	NEventsReadThatPassedFilters () const
	Accessor.

G4long	NEventsSkipped () const
	Return the offset into the file if any.

G4bool	DistributionIsFinished () const
	Report whether the distribution is finished generating.

void	ThrowExceptionIfRecreateOffsetTooHigh (G4long eventOffset) const

Protected Member Functions
void	ReadSingleEvent (G4long index, G4Event *anEvent)
	Read sampler hits and put into primary vertices if they pass filters.

void	ReadPrimaryParticlesFloat (G4long index)
	Conversion from HepMC::GenEvent to G4Event.

void	ReadPrimaryParticlesDouble (G4long index)

Protected Member Functions inherited from BDSPrimaryGeneratorFile
G4bool	VertexInsideWorld (const G4ThreeVector &pos) const
	Utility function for derived classes to check a position is inside the world.

Private Attributes
BDSOutputLoaderSampler *	reader

G4String	fileName

G4String	samplerName

G4bool	removeUnstableWithoutDecay

G4bool	warnAboutSkippedParticles

G4RotationMatrix	referenceBeamMomentumOffset

std::vector< DisplacedVertex >	vertices
	Used for transiently loading information.

std::vector< G4PrimaryVertex * >	currentVertices

Additional Inherited Members
Static Public Member Functions inherited from BDSPrimaryGeneratorFile
static BDSPrimaryGeneratorFile *	ConstructGenerator (const GMAD::Beam &beam, BDSBunch *bunchIn, G4bool recreate, G4int eventOffset, G4bool batchMode)

Protected Attributes inherited from BDSPrimaryGeneratorFile
G4bool	loopFile

BDSBunchEventGenerator *	bunch

G4bool	recreate

G4bool	endOfFileReached

G4bool	vertexGeneratedSuccessfully

G4long	currentFileEventIndex

G4long	nEventsInFile

G4long	nEventsReadThatPassedFilters

G4long	nEventsSkipped

G4VSolid *	worldSolid

Detailed Description

Loader to read a specific sampler from a BDSIM ROOT output file.

Author: Laurie Nevay

Definition at line 44 of file BDSPrimaryGeneratorFileSampler.hh.

Constructor & Destructor Documentation

◆ BDSPrimaryGeneratorFileSampler()

BDSPrimaryGeneratorFileSampler::BDSPrimaryGeneratorFileSampler	(	const G4String &	distrType,
		const G4String &	fileNameIn,
		BDSBunchEventGenerator *	bunchIn,
		G4bool	loopFileIn,
		G4bool	removeUnstableWithoutDecayIn = `true`,
		G4bool	warnAboutSkippedParticlesIn = `true`
	)

Constructor takes full distrType string including semicolon and eventgeneratorfile prefix. The filename is assumed to be correctly prefixed if a relative path already. The bunch definition is used for the reference coordinates and offset of the beam point.

Definition at line 45 of file BDSPrimaryGeneratorFileSampler.cc.

References BDSBunchEventGenerator::eventGeneratorNEventsSkip, BDSBunchEventGenerator::ReferenceBeamMomentumOffset(), SkipEvents(), and BDS::SplitOnColon().

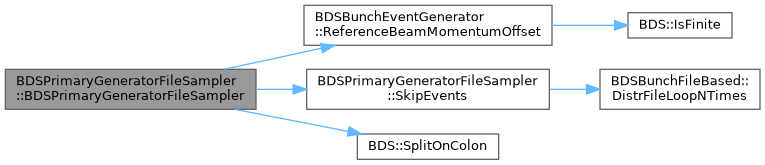

Here is the call graph for this function:
