BDSPSCellFluxScaledPerParticle3D Class Reference

Primitive scorer for a 3D mesh with a conversion factor. More...

#include <BDSPSCellFluxScaledPerParticle3D.hh>

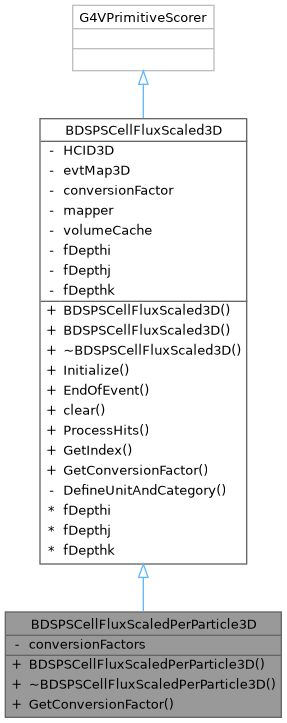

Inheritance diagram for BDSPSCellFluxScaledPerParticle3D:

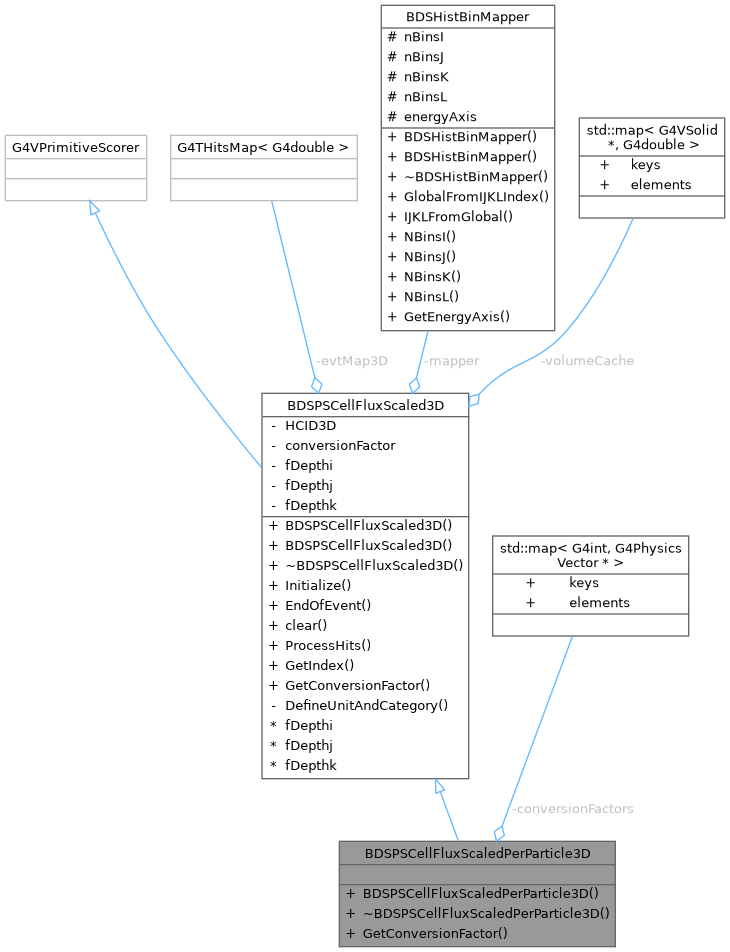

Collaboration diagram for BDSPSCellFluxScaledPerParticle3D:

Public Member Functions
	BDSPSCellFluxScaledPerParticle3D (const G4String &scorerName, const BDSHistBinMapper *mapperIn, const G4String &pathname, const G4String &unitIn="percm2", G4int ni=1, G4int nj=1, G4int nk=1, G4int depi=2, G4int depj=1, G4int depk=0)
virtual G4double	GetConversionFactor (G4int particleID, G4double kineticEnergy) const override
Public Member Functions inherited from BDSPSCellFluxScaled3D
	BDSPSCellFluxScaled3D (const G4String &scorerName, const BDSHistBinMapper *mapperIn, const G4String &unitIn="percm2", G4int ni=1, G4int nj=1, G4int nk=1, G4int depi=2, G4int depj=1, G4int depk=0)
	BDSPSCellFluxScaled3D (const G4String &scorerName, const BDSHistBinMapper *mapperIn, const G4String &filename, const G4String &unitIn="percm2", G4int ni=1, G4int nj=1, G4int nk=1, G4int depi=2, G4int depj=1, G4int depk=0)
void	Initialize (G4HCofThisEvent *HCE) override
void	EndOfEvent (G4HCofThisEvent *HCE) override
void	clear () override
G4bool	ProcessHits (G4Step *aStep, G4TouchableHistory *) override
G4int	GetIndex (G4Step *aStep) override

Private Attributes
std::map< G4int, G4PhysicsVector * >	conversionFactors

Detailed Description

Primitive scorer for a 3D mesh with a conversion factor.

Author

Robin Tesse

Definition at line 38 of file BDSPSCellFluxScaledPerParticle3D.hh.

Constructor & Destructor Documentation

BDSPSCellFluxScaledPerParticle3D()

BDSPSCellFluxScaledPerParticle3D::BDSPSCellFluxScaledPerParticle3D	(	const G4String &	scorerName,
		const BDSHistBinMapper *	mapperIn,
		const G4String &	pathname,
		const G4String &	unitIn = "percm2",
		G4int	ni = 1,
		G4int	nj = 1,
		G4int	nk = 1,
		G4int	depi = 2,
		G4int	depj = 1,
		G4int	depk = 0
	)

Definition at line 41 of file BDSPSCellFluxScaledPerParticle3D.cc.

~BDSPSCellFluxScaledPerParticle3D()

BDSPSCellFluxScaledPerParticle3D::~BDSPSCellFluxScaledPerParticle3D ( )

overridevirtual

Definition at line 96 of file BDSPSCellFluxScaledPerParticle3D.cc.

Member Function Documentation

GetConversionFactor()

G4double BDSPSCellFluxScaledPerParticle3D::GetConversionFactor ( G4int  particleID, G4double  kineticEnergy  ) const

overridevirtual

Reimplemented from BDSPSCellFluxScaled3D.

Definition at line 102 of file BDSPSCellFluxScaledPerParticle3D.cc.

Field Documentation

conversionFactors

std::map<G4int, G4PhysicsVector*> BDSPSCellFluxScaledPerParticle3D::conversionFactors

private

Definition at line 58 of file BDSPSCellFluxScaledPerParticle3D.hh.

---

The documentation for this class was generated from the following files:

• /__w/bdsim/bdsim/include/BDSPSCellFluxScaledPerParticle3D.hh
• /__w/bdsim/bdsim/src/BDSPSCellFluxScaledPerParticle3D.cc
