BDSIonDefinition Class Reference

Class to parse an ion particle definition. More...

#include <BDSIonDefinition.hh>

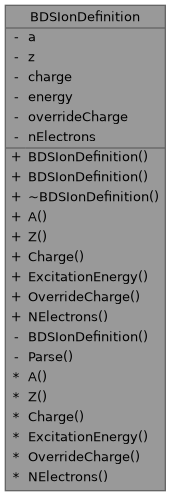

Collaboration diagram for BDSIonDefinition:

Public Member Functions
	BDSIonDefinition (const G4String &definition)
	BDSIonDefinition (G4int aIn, G4int zIn, G4double qIn)
G4int	A () const
	Accessor.
G4int	Z () const
	Accessor.
G4double	Charge () const
	Accessor.
G4double	ExcitationEnergy () const
	Accessor.
G4bool	OverrideCharge () const
	Accessor.
G4int	NElectrons () const
	Accessor.

Private Member Functions
	BDSIonDefinition ()=delete
	No default constructor.
void	Parse (const G4String &definition)
	Parse the definition.

Private Attributes
G4int	a
G4int	z
G4double	charge
	In units of eplus.
G4double	energy
	Excitation energy. G4units.
G4bool	overrideCharge
	Whether to specify the charge.
G4int	nElectrons
	Inferred number of bound electrons if any.

Friends
std::ostream &	operator<< (std::ostream &out, BDSIonDefinition const &io)
	Output streamer.

Detailed Description

Class to parse an ion particle definition.

Author

Laurie Nevay

Definition at line 32 of file BDSIonDefinition.hh.

Constructor & Destructor Documentation

BDSIonDefinition() [1/2]

BDSIonDefinition::BDSIonDefinition ( const G4String &  definition )

explicit

Definition at line 32 of file BDSIonDefinition.cc.

BDSIonDefinition() [2/2]

BDSIonDefinition::BDSIonDefinition	(	G4int	aIn,
		G4int	zIn,
		G4double	qIn
	)

Definition at line 51 of file BDSIonDefinition.cc.

~BDSIonDefinition()

BDSIonDefinition::~BDSIonDefinition ( )

inline

Definition at line 39 of file BDSIonDefinition.hh.

Member Function Documentation

A()

G4int BDSIonDefinition::A ( ) const

inline

Accessor.

Definition at line 42 of file BDSIonDefinition.hh.

Referenced by BDSOutput::FillEventPrimaryOnly(), BDSBunchUserFile< T >::GetNextParticleLocal(), BDSBunchSixTrackLink::UpdateGeant4ParticleDefinition(), BDSLinkBunch::UpdateGeant4ParticleDefinition(), BDSBunch::UpdateIonDefinition(), BDSBunchSixTrackLink::UpdateIonDefinition(), and BDSLinkBunch::UpdateIonDefinition().

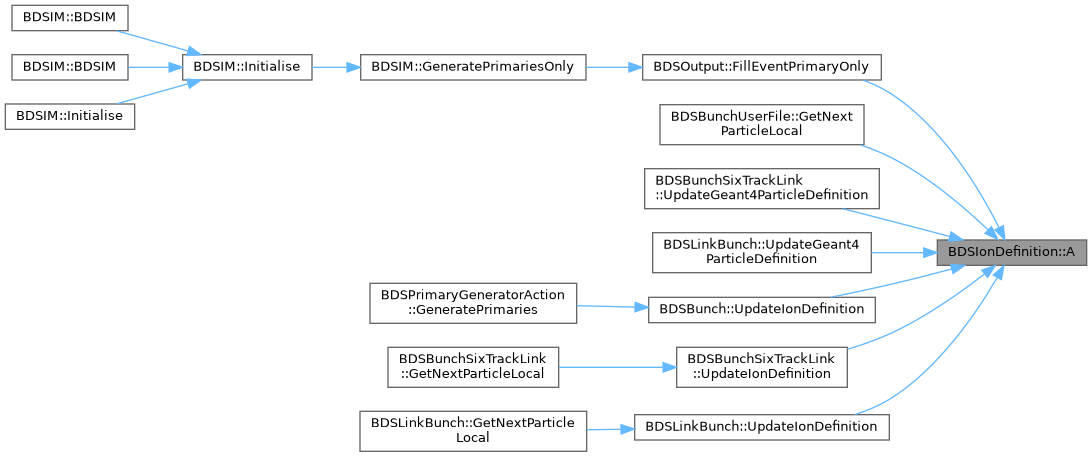

Here is the caller graph for this function:

Charge()

G4double BDSIonDefinition::Charge ( ) const

inline

Accessor.

Definition at line 44 of file BDSIonDefinition.hh.

References charge.

Referenced by BDSParticleDefinition::BDSParticleDefinition().

Here is the caller graph for this function:

ExcitationEnergy()

G4double BDSIonDefinition::ExcitationEnergy ( ) const

inline

Accessor.

Definition at line 45 of file BDSIonDefinition.hh.

References energy.

Referenced by BDSBunchUserFile< T >::GetNextParticleLocal(), BDSBunchSixTrackLink::UpdateGeant4ParticleDefinition(), BDSLinkBunch::UpdateGeant4ParticleDefinition(), BDSBunch::UpdateIonDefinition(), BDSBunchSixTrackLink::UpdateIonDefinition(), and BDSLinkBunch::UpdateIonDefinition().

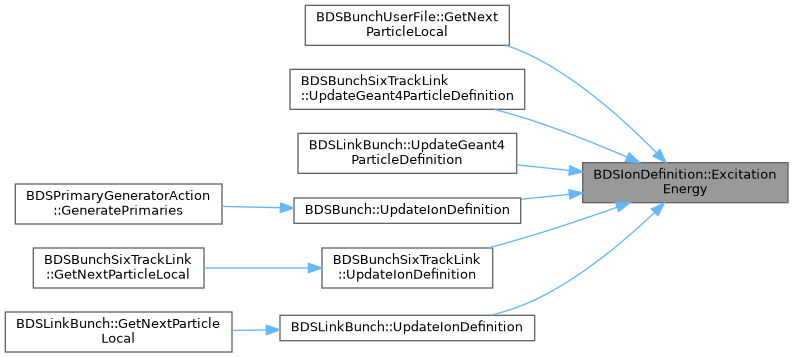

Here is the caller graph for this function:

NElectrons()

G4int BDSIonDefinition::NElectrons ( ) const

inline

Accessor.

Definition at line 47 of file BDSIonDefinition.hh.

References nElectrons.

Referenced by BDSParticleDefinition::NElectrons().

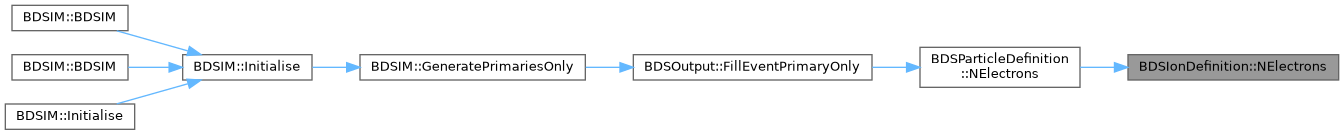

Here is the caller graph for this function:

OverrideCharge()

G4bool BDSIonDefinition::OverrideCharge ( ) const

inline

Accessor.

Definition at line 46 of file BDSIonDefinition.hh.

References overrideCharge.

Referenced by BDSParticleDefinition::BDSParticleDefinition().

Here is the caller graph for this function:

Parse()

void BDSIonDefinition::Parse ( const G4String &  definition )

private

Parse the definition.

Definition at line 87 of file BDSIonDefinition.cc.

References charge, energy, nElectrons, and overrideCharge.

Z()

G4int BDSIonDefinition::Z ( ) const

inline

Accessor.

Definition at line 43 of file BDSIonDefinition.hh.

Referenced by BDSOutput::FillEventPrimaryOnly(), BDSBunchUserFile< T >::GetNextParticleLocal(), BDSBunchSixTrackLink::UpdateGeant4ParticleDefinition(), BDSLinkBunch::UpdateGeant4ParticleDefinition(), BDSBunch::UpdateIonDefinition(), BDSBunchSixTrackLink::UpdateIonDefinition(), and BDSLinkBunch::UpdateIonDefinition().

Here is the caller graph for this function:

Friends And Related Symbol Documentation

operator<<

std::ostream & operator<< ( std::ostream &  out, BDSIonDefinition const &  io  )

friend

Output streamer.

Definition at line 80 of file BDSIonDefinition.cc.

Field Documentation

a

G4int BDSIonDefinition::a

private

Definition at line 60 of file BDSIonDefinition.hh.

charge

G4double BDSIonDefinition::charge

private

In units of eplus.

Definition at line 62 of file BDSIonDefinition.hh.

Referenced by Charge(), BDSParticleDefinition::operator=(), and Parse().

energy

G4double BDSIonDefinition::energy

private

Excitation energy. G4units.

Definition at line 63 of file BDSIonDefinition.hh.

Referenced by ExcitationEnergy(), and Parse().

nElectrons

G4int BDSIonDefinition::nElectrons

private

Inferred number of bound electrons if any.

Definition at line 65 of file BDSIonDefinition.hh.

Referenced by NElectrons(), and Parse().

overrideCharge

G4bool BDSIonDefinition::overrideCharge

private

Whether to specify the charge.

Definition at line 64 of file BDSIonDefinition.hh.

Referenced by OverrideCharge(), and Parse().

z

G4int BDSIonDefinition::z

private

Definition at line 61 of file BDSIonDefinition.hh.

---

The documentation for this class was generated from the following files:

• /__w/bdsim/bdsim/include/BDSIonDefinition.hh
• /__w/bdsim/bdsim/src/BDSIonDefinition.cc
