Integrator for thin h or v kick. More...

#include <BDSIntegratorKickerThin.hh>

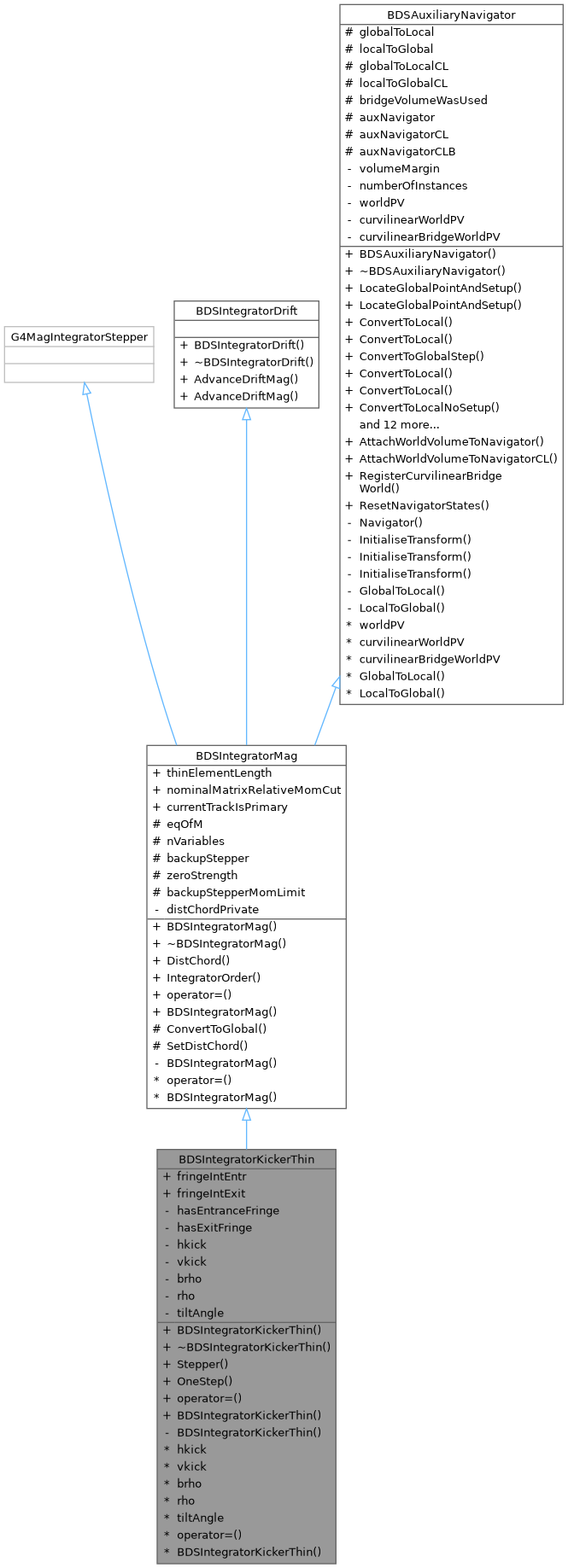

Inheritance diagram for BDSIntegratorKickerThin:

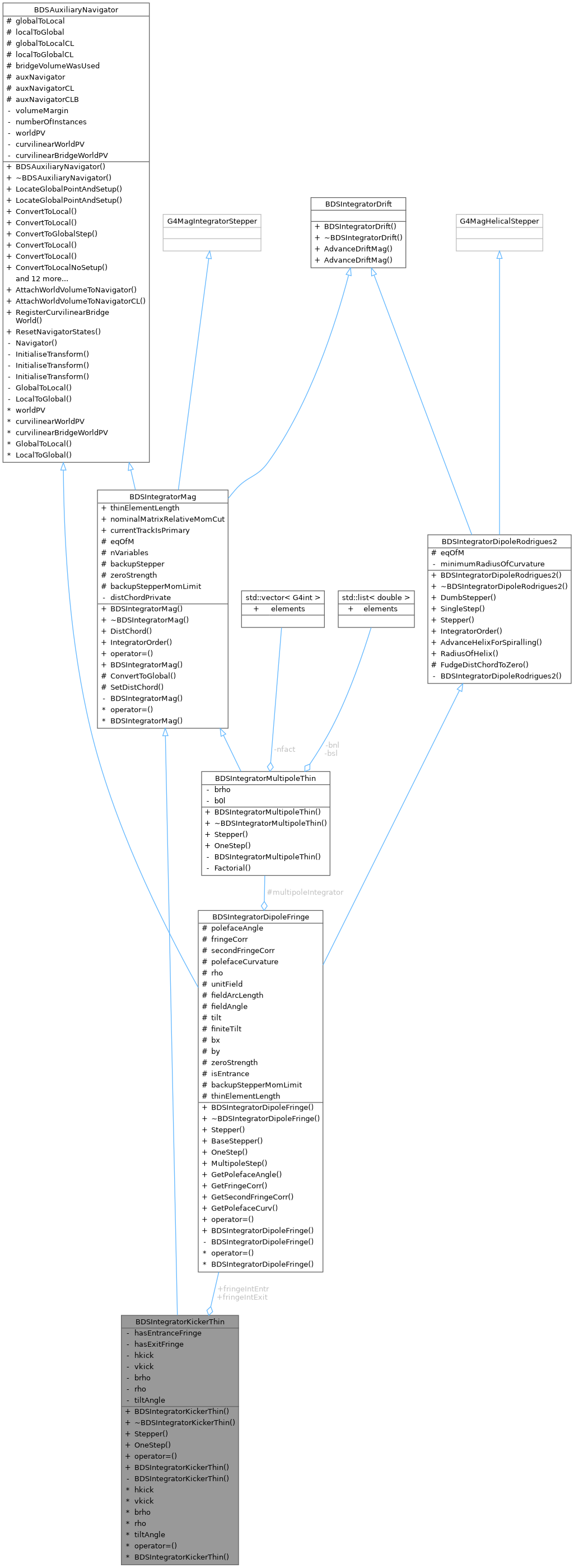

Collaboration diagram for BDSIntegratorKickerThin:

Public Member Functions
	BDSIntegratorKickerThin (BDSMagnetStrength const strength, G4double brhoIn, G4Mag_EqRhs eqOfMIn, G4double minimumRadiusOfCurvatureIn)

virtual void	Stepper (const G4double yIn[], const G4double dydx[], const G4double h, G4double yOut[], G4double yErr[])
	The stepper for integration.

virtual void	OneStep (const G4ThreeVector &localPos, const G4ThreeVector &localMomUnit, const G4ThreeVector &localMom, const G4double &h, const G4double &fcof, G4ThreeVector &localPosOut, G4ThreeVector &localMomOut) const


BDSIntegratorKickerThin &	operator= (const BDSIntegratorKickerThin &)=delete
	Assignment and copy constructor not implemented nor used.

	BDSIntegratorKickerThin (BDSIntegratorKickerThin &)=delete
	Assignment and copy constructor not implemented nor used.

Public Member Functions inherited from BDSIntegratorMag
	BDSIntegratorMag (G4Mag_EqRhs *eqOfMIn, G4int nVariablesIn)

virtual G4double	DistChord () const
	Estimate maximum distance of curved solution and chord.

virtual G4int	IntegratorOrder () const
	Geant4 requires that the integrator order must be supplied by the derived class.

BDSIntegratorMag &	operator= (const BDSIntegratorMag &)=delete
	Assignment and copy constructor not implemented nor used.

	BDSIntegratorMag (BDSIntegratorMag &)=delete
	Assignment and copy constructor not implemented nor used.

Public Member Functions inherited from BDSIntegratorDrift
void	AdvanceDriftMag (const G4double yIn[], const G4double h, G4double yOut[], G4double yErr[]) const
	Error array [6] all 0.

void	AdvanceDriftMag (const G4double yIn[], const G4ThreeVector &unitMomentum, const G4double h, G4double yOut[], G4double yErr[]) const

Public Member Functions inherited from BDSAuxiliaryNavigator
G4VPhysicalVolume *	LocateGlobalPointAndSetup (const G4ThreeVector &point, const G4ThreeVector *direction=nullptr, const G4bool pRelativeSearch=true, const G4bool ignoreDirection=true, G4bool useCurvilinear=true) const
	A wrapper for the underlying static navigator instance located within this class.

G4VPhysicalVolume *	LocateGlobalPointAndSetup (G4Step const *const step, G4bool useCurvilinear=true) const

BDSStep	ConvertToLocal (G4Step const *const step, G4bool useCurvilinear=true) const

BDSStep	ConvertToLocal (const G4ThreeVector &globalPosition, const G4ThreeVector &globalDirection, const G4double stepLength=0, const G4bool useCurvilinear=true, const G4double marginLength=1) const

BDSStep	ConvertToGlobalStep (const G4ThreeVector &localPosition, const G4ThreeVector &localDirection, const G4bool useCurvilinear=true) const

G4ThreeVector	ConvertToLocal (const G4double globalPoint[3], const G4bool useCurvilinear=true) const

G4ThreeVector	ConvertToLocal (const G4ThreeVector &globalPosition, const G4bool useCurvilinear=true) const
	Vector version - see notes above.

G4ThreeVector	ConvertToLocalNoSetup (const G4ThreeVector &globalPosition, const G4bool useCurvilinear=true) const
	Similar to above function but does NOT initialise the transforms.

G4ThreeVector	ConvertAxisToLocal (const G4ThreeVector &globalAxis, const G4bool useCurvilinear=true) const

G4ThreeVector	ConvertAxisToLocal (const G4double globalPoint[3], const G4double globalAxis[3], const G4bool useCurvilinear=true) const

G4ThreeVector	ConvertAxisToLocal (const G4ThreeVector &globalPoint, const G4ThreeVector &globalAxis, const G4bool useCurvilinear=true) const
	Vector version.

G4ThreeVector	ConvertAxisToGlobal (const G4ThreeVector &localAxis, const G4bool useCurvilinear=true) const

std::pair< G4ThreeVector, G4ThreeVector >	ConvertAxisToGlobal (const std::pair< G4ThreeVector, G4ThreeVector > &localAxis, const G4bool useCurvilinear=true) const

G4ThreeVector	ConvertToGlobal (const G4ThreeVector &localPosition, const G4bool useCurvilinear=true) const

G4ThreeVector	ConvertAxisToGlobal (const G4ThreeVector &globalPosition, const G4ThreeVector &localAxis, const G4bool useCurvilinear=true) const

G4ThreeVector	ConvertToGlobal (const G4ThreeVector &globalPosition, const G4ThreeVector &localPosition, const G4bool useCurvilinear=true) const

BDSStep	GlobalToCurvilinear (const G4double fieldArcLength, const G4ThreeVector &unitField, const G4double angle, const G4ThreeVector &position, const G4ThreeVector &unitMomentum, const G4double h, const G4bool useCurvilinearWorld, const G4double FCof, const G4double tilt=0)

BDSStep	GlobalToCurvilinear (const G4ThreeVector &position, const G4ThreeVector &unitMomentum, const G4double h, const G4bool useCurvilinearWorld)

BDSStep	CurvilinearToGlobal (const G4ThreeVector &localPosition, const G4ThreeVector &localMomentum, const G4bool useCurvilinearWorld)

BDSStep	CurvilinearToGlobal (const G4double fieldArcLength, const G4ThreeVector &unitField, const G4double angle, const G4ThreeVector &CLPosition, const G4ThreeVector &CLMomentum, const G4bool useCurvilinearWorld, const G4double FCof, const G4double tilt=0)

Data Fields
BDSIntegratorDipoleFringe *	fringeIntEntr
	Separate fringe field integrators for entrance and exit fringes.

BDSIntegratorDipoleFringe *	fringeIntExit

Private Member Functions
	BDSIntegratorKickerThin ()=delete
	Private default constructor to enforce use of supplied constructor.

Private Attributes
G4bool	hasEntranceFringe
	Cache if the fringe or pole face effects are to be applied.

G4bool	hasExitFringe


const G4double	hkick
	Cache of variable.

const G4double	vkick
	Cache of variable.

const G4double	brho
	Cache of variable.

G4double	rho
	Cache of variable.

G4double	tiltAngle
	Cache of variable.

Additional Inherited Members
Static Public Member Functions inherited from BDSAuxiliaryNavigator
static void	AttachWorldVolumeToNavigator (G4VPhysicalVolume *worldPVIn)
	Setup the navigator w.r.t. to a world volume - typically real world.

static void	AttachWorldVolumeToNavigatorCL (G4VPhysicalVolume *curvilinearWorldPVIn)

static void	RegisterCurvilinearBridgeWorld (G4VPhysicalVolume *curvilinearBridgeWorldPVIn)

static void	ResetNavigatorStates ()

Static Public Attributes inherited from BDSIntegratorMag
static G4double	thinElementLength = -1

static G4double	nominalMatrixRelativeMomCut = -1

static G4bool	currentTrackIsPrimary = false

Protected Member Functions inherited from BDSIntegratorMag
void	ConvertToGlobal (const G4ThreeVector &localPos, const G4ThreeVector &localMom, G4double yOut[], G4double yErr[], const G4double momScaling=1.0)
	scaling of momentum in case localMom is a unit vector

void	SetDistChord (G4double distChordIn)
	Setter for distChord to private member.

Protected Attributes inherited from BDSIntegratorMag
G4Mag_EqRhs *	eqOfM

const G4int	nVariables
	Cache of the number of variables.

G4MagIntegratorStepper *	backupStepper

G4bool	zeroStrength

G4double	backupStepperMomLimit

Protected Attributes inherited from BDSAuxiliaryNavigator
G4AffineTransform	globalToLocal

G4AffineTransform	localToGlobal

G4AffineTransform	globalToLocalCL

G4AffineTransform	localToGlobalCL

G4bool	bridgeVolumeWasUsed

Static Protected Attributes inherited from BDSAuxiliaryNavigator
static G4Navigator *	auxNavigator = new G4Navigator()

static G4Navigator *	auxNavigatorCL = new G4Navigator()

static G4Navigator *	auxNavigatorCLB = new G4Navigator()

Detailed Description

Integrator for thin h or v kick.

This adds a fraction of the total momentum to the horizontal or vertical (in curvilinear coordinates) as defined by hkick and vkick respectively. The delta is subtracted from the z component to conserve momentum.

Author: Laurie Nevay

Definition at line 41 of file BDSIntegratorKickerThin.hh.

Constructor & Destructor Documentation

◆ BDSIntegratorKickerThin()

BDSIntegratorKickerThin::BDSIntegratorKickerThin	(	BDSMagnetStrength const *	strength,
		G4double	brhoIn,
		G4Mag_EqRhs *	eqOfMIn,
		G4double	minimumRadiusOfCurvatureIn
	)

Definition at line 30 of file BDSIntegratorKickerThin.cc.

◆ ~BDSIntegratorKickerThin()

virtual BDSIntegratorKickerThin::~BDSIntegratorKickerThin ( )

inlinevirtual

Definition at line 49 of file BDSIntegratorKickerThin.hh.

Member Function Documentation

◆ OneStep()

void BDSIntegratorKickerThin::OneStep	(	const G4ThreeVector &	localPos,
		const G4ThreeVector &	localMomUnit,
		const G4ThreeVector &	localMom,
		const G4double &	h,
		const G4double &	fcof,
		G4ThreeVector &	localPosOut,
		G4ThreeVector &	localMomOut
	)		const

virtual

Definition at line 186 of file BDSIntegratorKickerThin.cc.

◆ Stepper()

void BDSIntegratorKickerThin::Stepper	(	const G4double	yIn[],
		const G4double	dydx[],
		const G4double	h,
		G4double	yOut[],
		G4double	yErr[]
	)

virtual

The stepper for integration.

Definition at line 91 of file BDSIntegratorKickerThin.cc.

References BDSIntegratorDrift::AdvanceDriftMag(), BDSIntegratorMag::backupStepperMomLimit, BDSIntegratorMag::ConvertToGlobal(), BDSAuxiliaryNavigator::ConvertToLocal(), BDSIntegratorMag::eqOfM, fringeIntEntr, hasEntranceFringe, BDS::IsFinite(), BDS::IsFiniteStrength(), BDSIntegratorDipoleFringe::OneStep(), BDSStep::PostStepPoint(), BDSStep::PreStepPoint(), rho, BDSIntegratorMag::SetDistChord(), BDSIntegratorMag::thinElementLength, tiltAngle, and BDSIntegratorMag::zeroStrength.

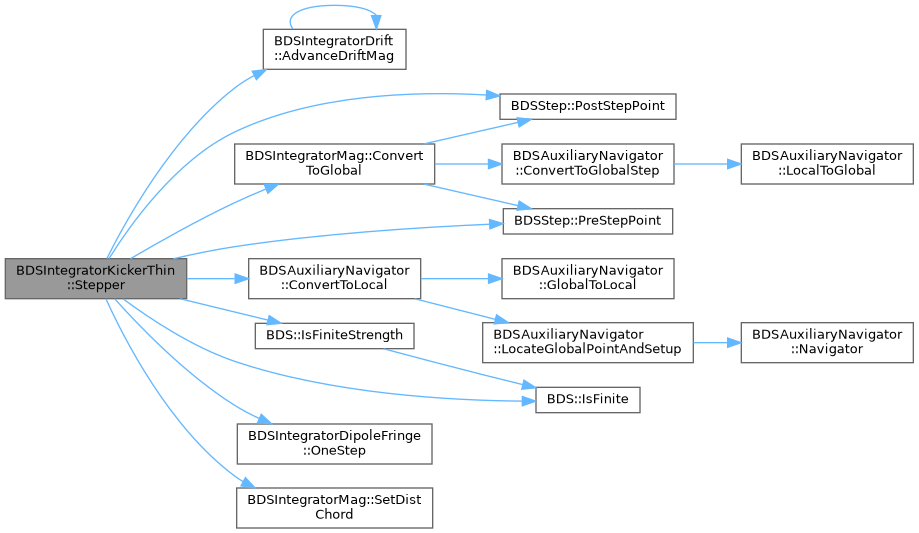

Here is the call graph for this function:

Field Documentation

◆ brho

const G4double BDSIntegratorKickerThin::brho

private

Cache of variable.

Definition at line 81 of file BDSIntegratorKickerThin.hh.

◆ fringeIntEntr

BDSIntegratorDipoleFringe* BDSIntegratorKickerThin::fringeIntEntr

Separate fringe field integrators for entrance and exit fringes.

Definition at line 71 of file BDSIntegratorKickerThin.hh.

Referenced by Stepper().

◆ fringeIntExit

BDSIntegratorDipoleFringe* BDSIntegratorKickerThin::fringeIntExit

Definition at line 72 of file BDSIntegratorKickerThin.hh.

◆ hasEntranceFringe

G4bool BDSIntegratorKickerThin::hasEntranceFringe

private

Cache if the fringe or pole face effects are to be applied.

Definition at line 87 of file BDSIntegratorKickerThin.hh.

Referenced by Stepper().

◆ hasExitFringe

G4bool BDSIntegratorKickerThin::hasExitFringe

private

Definition at line 88 of file BDSIntegratorKickerThin.hh.

◆ hkick

const G4double BDSIntegratorKickerThin::hkick

private

Cache of variable.

Definition at line 79 of file BDSIntegratorKickerThin.hh.

◆ rho

G4double BDSIntegratorKickerThin::rho

private

Cache of variable.

Definition at line 82 of file BDSIntegratorKickerThin.hh.

Referenced by Stepper().

◆ tiltAngle

G4double BDSIntegratorKickerThin::tiltAngle

private

Cache of variable.

Definition at line 83 of file BDSIntegratorKickerThin.hh.

Referenced by Stepper().

◆ vkick

const G4double BDSIntegratorKickerThin::vkick

private

Cache of variable.

Definition at line 80 of file BDSIntegratorKickerThin.hh.

The documentation for this class was generated from the following files:

/__w/bdsim/bdsim/include/BDSIntegratorKickerThin.hh
/__w/bdsim/bdsim/src/BDSIntegratorKickerThin.cc
