Derived fringe field integrator that does normalise to momentum. More...

#include <BDSIntegratorDipoleFringeScaling.hh>

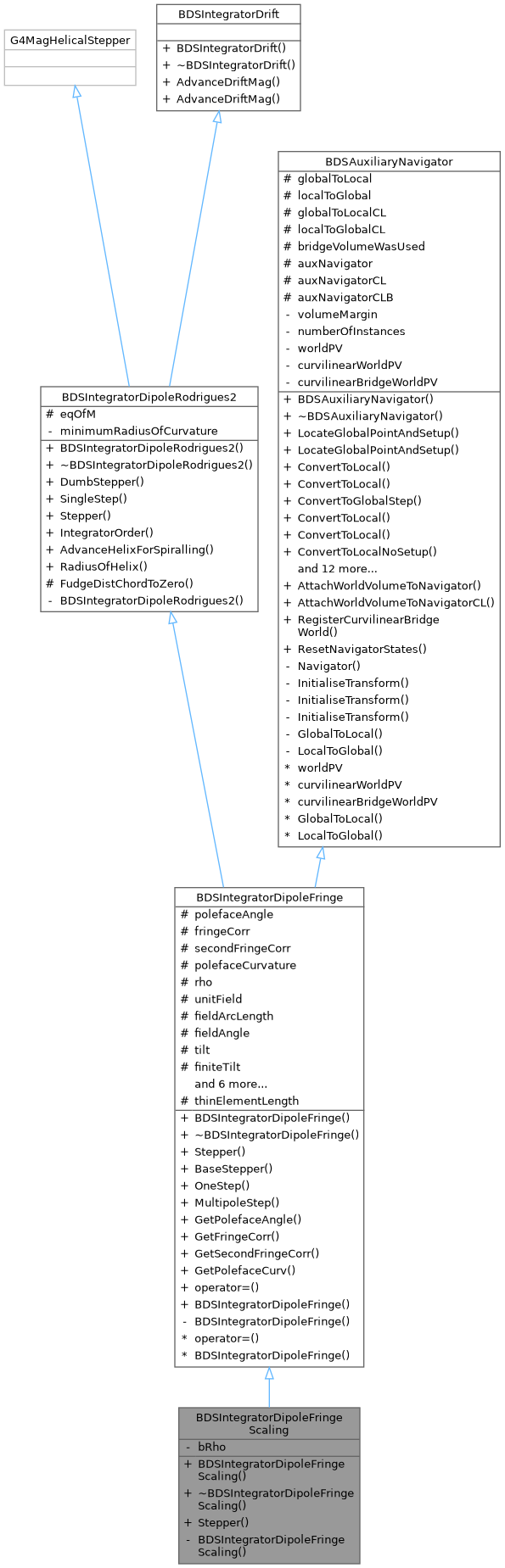

Inheritance diagram for BDSIntegratorDipoleFringeScaling:

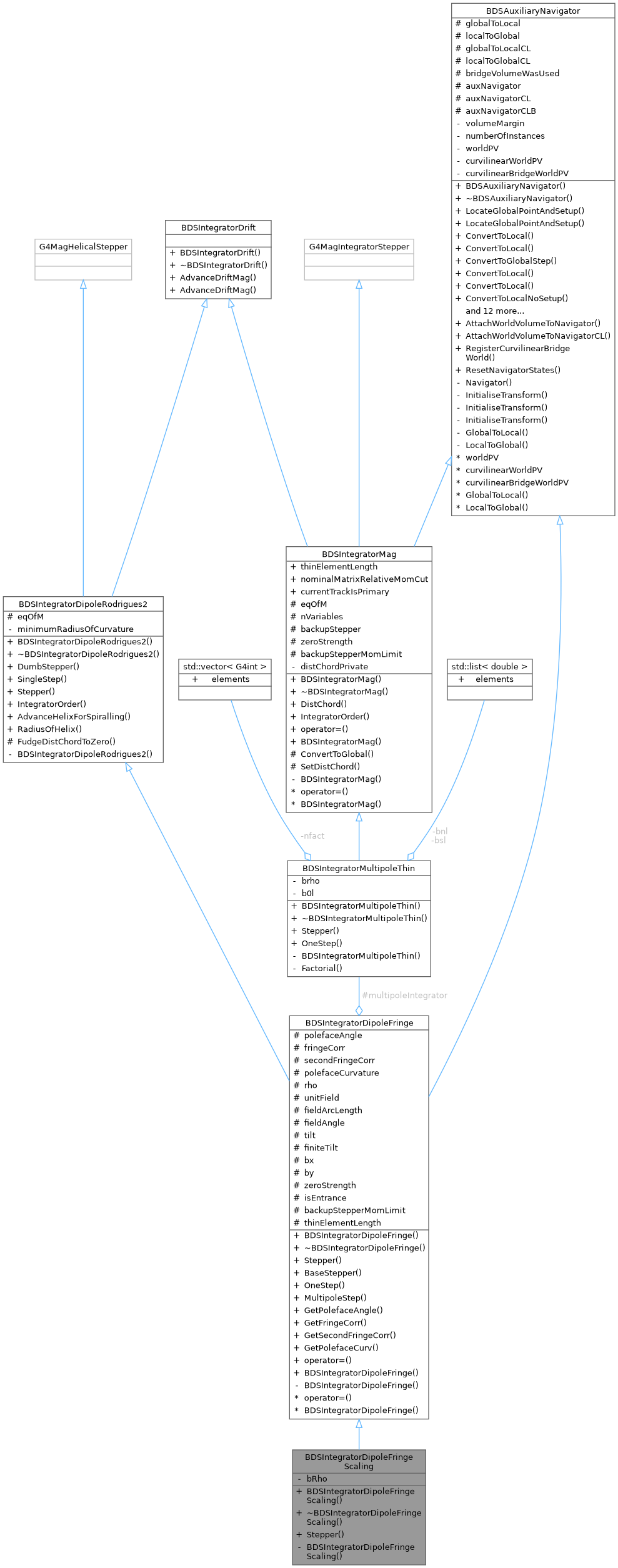

Collaboration diagram for BDSIntegratorDipoleFringeScaling:

Public Member Functions
	BDSIntegratorDipoleFringeScaling (BDSMagnetStrength const strength, G4double brhoIn, G4Mag_EqRhs eqOfMIn, G4double minimumRadiusOfCurvature, const G4double &tiltIn=0)

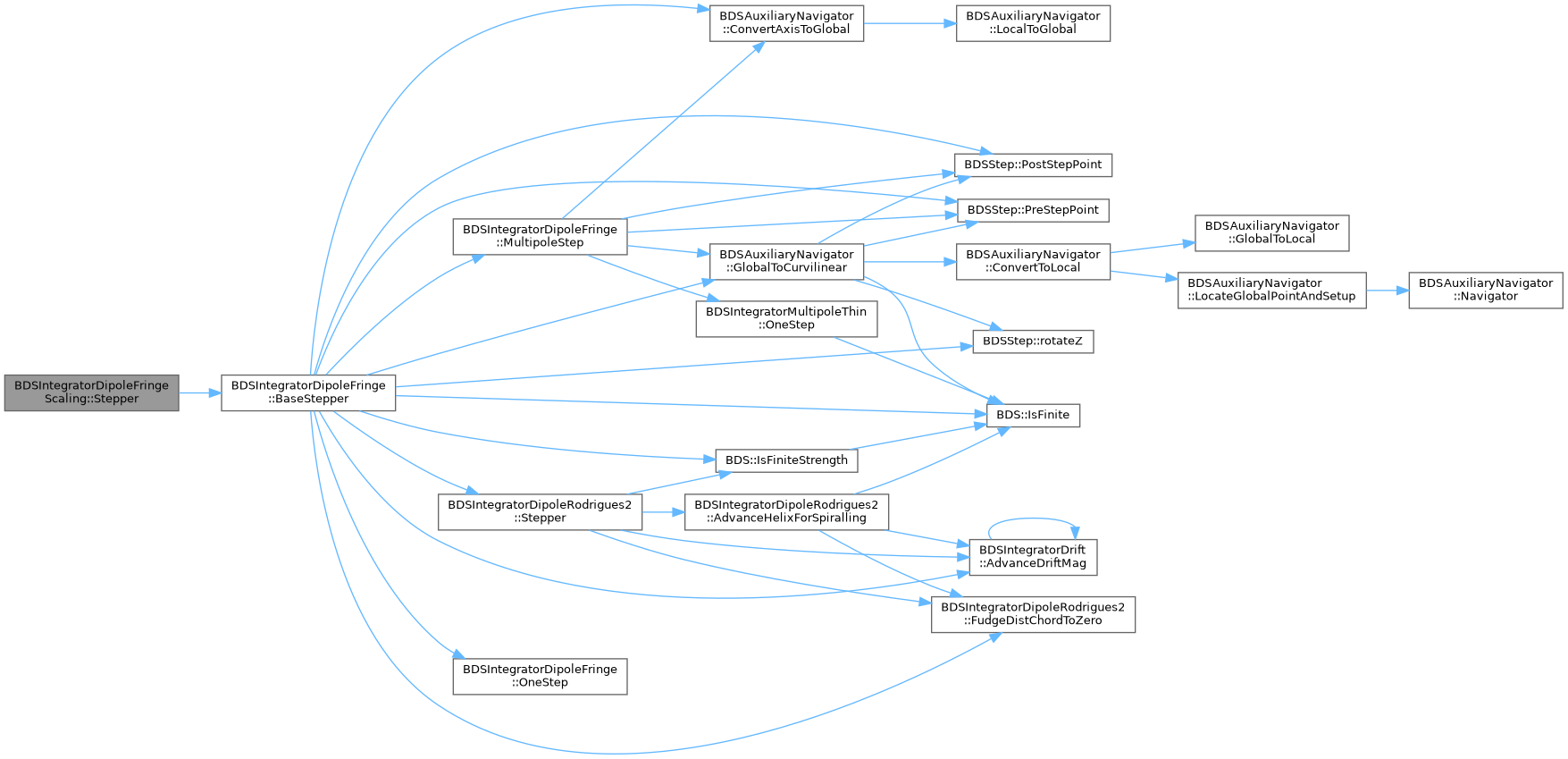

virtual void	Stepper (const G4double yIn[], const G4double dydx[], const G4double h, G4double yOut[], G4double yErr[])

Public Member Functions inherited from BDSIntegratorDipoleFringe
	BDSIntegratorDipoleFringe (BDSMagnetStrength const strength, G4double brhoIn, G4Mag_EqRhs eqOfMIn, G4double minimumRadiusOfCurvature, const G4double &tiltIn=0)

virtual void	Stepper (const G4double yIn[6], const G4double dydx[6], const G4double h, G4double yOut[6], G4double yErr[6])
	The stepper for integration. Calls base class stepper.

void	BaseStepper (const G4double yIn[6], const G4double dydx[6], const G4double &h, G4double yOut[6], G4double yErr[6], const G4double &fcof, const G4double &momScaling)

void	OneStep (const G4ThreeVector &posIn, const G4ThreeVector &momUIn, G4ThreeVector &posOut, G4ThreeVector &momOut, const G4double &bendingRadius) const

void	MultipoleStep (const G4double yIn[6], G4double yMultipoleOut[6], const G4double &h)

G4double	GetPolefaceAngle ()

G4double	GetFringeCorr ()

G4double	GetSecondFringeCorr ()

G4double	GetPolefaceCurv ()

BDSIntegratorDipoleFringe &	operator= (const BDSIntegratorDipoleFringe &)=delete
	Assignment and copy constructor not implemented nor used.

	BDSIntegratorDipoleFringe (BDSIntegratorDipoleFringe &)=delete
	Assignment and copy constructor not implemented nor used.

Public Member Functions inherited from BDSIntegratorDipoleRodrigues2
	BDSIntegratorDipoleRodrigues2 (G4Mag_EqRhs *eqOfMIn, G4double minimumRadiusOfCurvature)

virtual void	DumbStepper (const G4double yIn[6], G4ThreeVector field, G4double stepLength, G4double yOut[6])

void	SingleStep (const G4double yIn[6], const G4double &h, G4double yOut[6])

virtual void	Stepper (const G4double yIn[6], const G4double dydx[], G4double h, G4double yOut[6], G4double yErr[6])
	Output error array.

virtual G4int	IntegratorOrder () const

void	AdvanceHelixForSpiralling (const G4double yIn[6], const G4ThreeVector &field, const G4double &h, G4double yOut[6], G4double yErr[6])

G4double	RadiusOfHelix () const
	Public accessor for protected variable in base class.

Public Member Functions inherited from BDSIntegratorDrift
void	AdvanceDriftMag (const G4double yIn[], const G4double h, G4double yOut[], G4double yErr[]) const
	Error array [6] all 0.

void	AdvanceDriftMag (const G4double yIn[], const G4ThreeVector &unitMomentum, const G4double h, G4double yOut[], G4double yErr[]) const

Public Member Functions inherited from BDSAuxiliaryNavigator
G4VPhysicalVolume *	LocateGlobalPointAndSetup (const G4ThreeVector &point, const G4ThreeVector *direction=nullptr, const G4bool pRelativeSearch=true, const G4bool ignoreDirection=true, G4bool useCurvilinear=true) const
	A wrapper for the underlying static navigator instance located within this class.

G4VPhysicalVolume *	LocateGlobalPointAndSetup (G4Step const *const step, G4bool useCurvilinear=true) const

BDSStep	ConvertToLocal (G4Step const *const step, G4bool useCurvilinear=true) const

BDSStep	ConvertToLocal (const G4ThreeVector &globalPosition, const G4ThreeVector &globalDirection, const G4double stepLength=0, const G4bool useCurvilinear=true, const G4double marginLength=1) const

BDSStep	ConvertToGlobalStep (const G4ThreeVector &localPosition, const G4ThreeVector &localDirection, const G4bool useCurvilinear=true) const

G4ThreeVector	ConvertToLocal (const G4double globalPoint[3], const G4bool useCurvilinear=true) const

G4ThreeVector	ConvertToLocal (const G4ThreeVector &globalPosition, const G4bool useCurvilinear=true) const
	Vector version - see notes above.

G4ThreeVector	ConvertToLocalNoSetup (const G4ThreeVector &globalPosition, const G4bool useCurvilinear=true) const
	Similar to above function but does NOT initialise the transforms.

G4ThreeVector	ConvertAxisToLocal (const G4ThreeVector &globalAxis, const G4bool useCurvilinear=true) const

G4ThreeVector	ConvertAxisToLocal (const G4double globalPoint[3], const G4double globalAxis[3], const G4bool useCurvilinear=true) const

G4ThreeVector	ConvertAxisToLocal (const G4ThreeVector &globalPoint, const G4ThreeVector &globalAxis, const G4bool useCurvilinear=true) const
	Vector version.

G4ThreeVector	ConvertAxisToGlobal (const G4ThreeVector &localAxis, const G4bool useCurvilinear=true) const

std::pair< G4ThreeVector, G4ThreeVector >	ConvertAxisToGlobal (const std::pair< G4ThreeVector, G4ThreeVector > &localAxis, const G4bool useCurvilinear=true) const

G4ThreeVector	ConvertToGlobal (const G4ThreeVector &localPosition, const G4bool useCurvilinear=true) const

G4ThreeVector	ConvertAxisToGlobal (const G4ThreeVector &globalPosition, const G4ThreeVector &localAxis, const G4bool useCurvilinear=true) const

G4ThreeVector	ConvertToGlobal (const G4ThreeVector &globalPosition, const G4ThreeVector &localPosition, const G4bool useCurvilinear=true) const

BDSStep	GlobalToCurvilinear (const G4double fieldArcLength, const G4ThreeVector &unitField, const G4double angle, const G4ThreeVector &position, const G4ThreeVector &unitMomentum, const G4double h, const G4bool useCurvilinearWorld, const G4double FCof, const G4double tilt=0)

BDSStep	GlobalToCurvilinear (const G4ThreeVector &position, const G4ThreeVector &unitMomentum, const G4double h, const G4bool useCurvilinearWorld)

BDSStep	CurvilinearToGlobal (const G4ThreeVector &localPosition, const G4ThreeVector &localMomentum, const G4bool useCurvilinearWorld)

BDSStep	CurvilinearToGlobal (const G4double fieldArcLength, const G4ThreeVector &unitField, const G4double angle, const G4ThreeVector &CLPosition, const G4ThreeVector &CLMomentum, const G4bool useCurvilinearWorld, const G4double FCof, const G4double tilt=0)

Private Member Functions
	BDSIntegratorDipoleFringeScaling ()=delete
	Private default constructor to enforce use of supplied constructor.

Private Attributes
const G4double	bRho
	Nominal magnetic rigidity.

Additional Inherited Members
Static Public Member Functions inherited from BDSAuxiliaryNavigator
static void	AttachWorldVolumeToNavigator (G4VPhysicalVolume *worldPVIn)
	Setup the navigator w.r.t. to a world volume - typically real world.

static void	AttachWorldVolumeToNavigatorCL (G4VPhysicalVolume *curvilinearWorldPVIn)

static void	RegisterCurvilinearBridgeWorld (G4VPhysicalVolume *curvilinearBridgeWorldPVIn)

static void	ResetNavigatorStates ()

Protected Member Functions inherited from BDSIntegratorDipoleRodrigues2
void	FudgeDistChordToZero ()

Protected Attributes inherited from BDSIntegratorDipoleFringe
G4double	polefaceAngle
	Poleface rotation angle.

G4double	fringeCorr
	Fringe field correction term.

G4double	secondFringeCorr
	Second fringe field correction term.

G4double	polefaceCurvature
	Poleface curvature.

G4double	rho
	Nominal magnet bending radius.

G4ThreeVector	unitField
	Cache of the unit field direction.

const G4double	fieldArcLength
	Cache of the field arc length.

const G4double	fieldAngle
	Cache of the field angle.

const G4double	tilt

const G4bool	finiteTilt

G4double	bx

G4double	by

G4bool	zeroStrength

BDSIntegratorMultipoleThin *	multipoleIntegrator

G4bool	isEntrance
	store if fringe is entrance or exit

G4double	backupStepperMomLimit

Protected Attributes inherited from BDSIntegratorDipoleRodrigues2
G4Mag_EqRhs *	eqOfM
	Cache of equation of motion. This class does not own it.

Protected Attributes inherited from BDSAuxiliaryNavigator
G4AffineTransform	globalToLocal

G4AffineTransform	localToGlobal

G4AffineTransform	globalToLocalCL

G4AffineTransform	localToGlobalCL

G4bool	bridgeVolumeWasUsed

Static Protected Attributes inherited from BDSIntegratorDipoleFringe
static G4double	thinElementLength = -1

Static Protected Attributes inherited from BDSAuxiliaryNavigator
static G4Navigator *	auxNavigator = new G4Navigator()

static G4Navigator *	auxNavigatorCL = new G4Navigator()

static G4Navigator *	auxNavigatorCLB = new G4Navigator()

Detailed Description

Derived fringe field integrator that does normalise to momentum.

Author: Will Shields

Definition at line 35 of file BDSIntegratorDipoleFringeScaling.hh.

Constructor & Destructor Documentation

◆ BDSIntegratorDipoleFringeScaling()

BDSIntegratorDipoleFringeScaling::BDSIntegratorDipoleFringeScaling	(	BDSMagnetStrength const *	strength,
		G4double	brhoIn,
		G4Mag_EqRhs *	eqOfMIn,
		G4double	minimumRadiusOfCurvature,
		const G4double &	tiltIn = `0`
	)
