A hit if a particle lost energy in a thin object. More...

#include <BDSHitThinThing.hh>

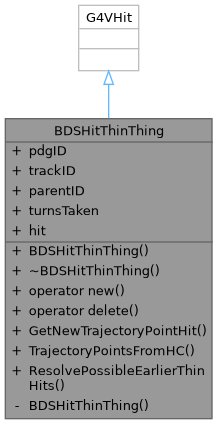

Inheritance diagram for BDSHitThinThing:

Collaboration diagram for BDSHitThinThing:

Public Member Functions
	BDSHitThinThing (G4int pdgIDIn, G4int trackIDIn, G4int parentIDIn, G4int turnsTakenIn, BDSTrajectoryPoint *hitIn)

virtual	~BDSHitThinThing ()
	Note this should not be inline when we use a G4Allocator.

void *	operator new (size_t)

void	operator delete (void *aHit)

BDSTrajectoryPointHit *	GetNewTrajectoryPointHit () const
	Allocate and return a new hit object.

Static Public Member Functions
static std::vector< const BDSTrajectoryPoint * >	TrajectoryPointsFromHC (BDSHitsCollectionThinThing *hits)
	Utility function to get a vector of trajectory points from the hits collection.

static std::vector< const BDSTrajectoryPointHit * >	ResolvePossibleEarlierThinHits (const std::vector< const BDSTrajectoryPrimary * > &primaryTrajectoryHits, const BDSHitsCollectionThinThing *thinThingHits)

Data Fields
G4int	pdgID

G4int	trackID

G4int	parentID

G4int	turnsTaken

BDSTrajectoryPoint *	hit

Private Member Functions
	BDSHitThinThing ()=delete
	No default constructor.

Detailed Description

A hit if a particle lost energy in a thin object.

Everything public for simplicity of the class.

Author: Laurie Nevay

Definition at line 45 of file BDSHitThinThing.hh.

Constructor & Destructor Documentation

◆ BDSHitThinThing()

BDSHitThinThing::BDSHitThinThing	(	G4int	pdgIDIn,
		G4int	trackIDIn,
		G4int	parentIDIn,
		G4int	turnsTakenIn,
		BDSTrajectoryPoint *	hitIn
	)

Definition at line 32 of file BDSHitThinThing.cc.

◆ ~BDSHitThinThing()

BDSHitThinThing::~BDSHitThinThing ( )

virtual

Note this should not be inline when we use a G4Allocator.

Definition at line 44 of file BDSHitThinThing.cc.

Member Function Documentation

◆ GetNewTrajectoryPointHit()

BDSTrajectoryPointHit * BDSHitThinThing::GetNewTrajectoryPointHit ( ) const

Allocate and return a new hit object.

Definition at line 62 of file BDSHitThinThing.cc.

◆ operator delete()

void BDSHitThinThing::operator delete ( void * aHit )

inline

Definition at line 87 of file BDSHitThinThing.hh.

◆ operator new()

void * BDSHitThinThing::operator new ( size_t )

inline

Definition at line 80 of file BDSHitThinThing.hh.

◆ ResolvePossibleEarlierThinHits()

std::vector< const BDSTrajectoryPointHit * > BDSHitThinThing::ResolvePossibleEarlierThinHits	(	const std::vector< const BDSTrajectoryPrimary * > &	primaryTrajectoryHits,
		const BDSHitsCollectionThinThing *	thinThingHits
	)

static

Definition at line 68 of file BDSHitThinThing.cc.

◆ TrajectoryPointsFromHC()

std::vector< const BDSTrajectoryPoint * > BDSHitThinThing::TrajectoryPointsFromHC ( BDSHitsCollectionThinThing * hits )

static

Utility function to get a vector of trajectory points from the hits collection.

Definition at line 49 of file BDSHitThinThing.cc.

Field Documentation

◆ hit

BDSTrajectoryPoint* BDSHitThinThing::hit

Definition at line 67 of file BDSHitThinThing.hh.

◆ parentID

G4int BDSHitThinThing::parentID

Definition at line 65 of file BDSHitThinThing.hh.

◆ pdgID

G4int BDSHitThinThing::pdgID

Definition at line 63 of file BDSHitThinThing.hh.

◆ trackID

G4int BDSHitThinThing::trackID

Definition at line 64 of file BDSHitThinThing.hh.

◆ turnsTaken

G4int BDSHitThinThing::turnsTaken

Definition at line 66 of file BDSHitThinThing.hh.

The documentation for this class was generated from the following files:

/__w/bdsim/bdsim/include/BDSHitThinThing.hh
/__w/bdsim/bdsim/src/BDSHitThinThing.cc
