Information recorded for a step leaving a volume. More...

#include <BDSHitEnergyDepositionGlobal.hh>

Inheritance diagram for BDSHitEnergyDepositionGlobal:

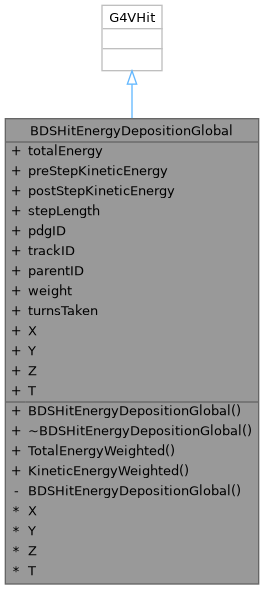

Collaboration diagram for BDSHitEnergyDepositionGlobal:

Public Member Functions
	BDSHitEnergyDepositionGlobal (G4double totalEnergyIn, G4double preStepKineticEnergyIn, G4double postStepKineticEnergyIn, G4double stepLengthIn, G4double XIn, G4double YIn, G4double ZIn, G4double TIn, G4int pdgIDIn, G4int trackIDIn, G4int parentIDIn, G4double weightIn, G4int turnsTakenIn)

virtual	~BDSHitEnergyDepositionGlobal ()
	Note this should not be inline when we use a G4Allocator.

G4double	TotalEnergyWeighted () const

G4double	KineticEnergyWeighted () const

Data Fields
G4double	totalEnergy

G4double	preStepKineticEnergy

G4double	postStepKineticEnergy

G4double	stepLength

G4int	pdgID

G4int	trackID

G4int	parentID

G4double	weight

G4int	turnsTaken


G4double	X
	Global coordinate.

G4double	Y
	Global coordinate.

G4double	Z
	Global coordinate.

G4double	T
	Global coordinate.

Private Member Functions
	BDSHitEnergyDepositionGlobal ()=delete
	Private default constructor (not implemented) as the constructor.

Detailed Description

Information recorded for a step leaving a volume.

Author: Laurie Nevay

Definition at line 32 of file BDSHitEnergyDepositionGlobal.hh.

Constructor & Destructor Documentation

◆ BDSHitEnergyDepositionGlobal()

BDSHitEnergyDepositionGlobal::BDSHitEnergyDepositionGlobal	(	G4double	totalEnergyIn,
		G4double	preStepKineticEnergyIn,
		G4double	postStepKineticEnergyIn,
		G4double	stepLengthIn,
		G4double	XIn,
		G4double	YIn,
		G4double	ZIn,
		G4double	TIn,
		G4int	pdgIDIn,
		G4int	trackIDIn,
		G4int	parentIDIn,
		G4double	weightIn,
		G4int	turnsTakenIn
	)

Default (in effect) constructor for energy deposition hit. The intention (by a lack of setter methods is that all information should be provided as instantiation time for an instance of this class.

Definition at line 23 of file BDSHitEnergyDepositionGlobal.cc.

◆ ~BDSHitEnergyDepositionGlobal()

BDSHitEnergyDepositionGlobal::~BDSHitEnergyDepositionGlobal ( )

virtual

Note this should not be inline when we use a G4Allocator.

Definition at line 51 of file BDSHitEnergyDepositionGlobal.cc.

Member Function Documentation

◆ KineticEnergyWeighted()

G4double BDSHitEnergyDepositionGlobal::KineticEnergyWeighted ( ) const

inline

Definition at line 56 of file BDSHitEnergyDepositionGlobal.hh.

◆ TotalEnergyWeighted()

G4double BDSHitEnergyDepositionGlobal::TotalEnergyWeighted ( ) const

inline

Definition at line 55 of file BDSHitEnergyDepositionGlobal.hh.

Field Documentation

◆ parentID

G4int BDSHitEnergyDepositionGlobal::parentID

Definition at line 76 of file BDSHitEnergyDepositionGlobal.hh.

◆ pdgID

G4int BDSHitEnergyDepositionGlobal::pdgID

Definition at line 74 of file BDSHitEnergyDepositionGlobal.hh.

◆ postStepKineticEnergy

G4double BDSHitEnergyDepositionGlobal::postStepKineticEnergy

Unlike kinetic energy recorded elsewhere, this is from the post-step point rather than the pre-step point because we want the kinetic energy leaving the volume.

Definition at line 64 of file BDSHitEnergyDepositionGlobal.hh.
