Wrapper class of BDSFieldQuery that accumulates values for visualisation. More...

#include <BDSFieldQueryForVis.hh>

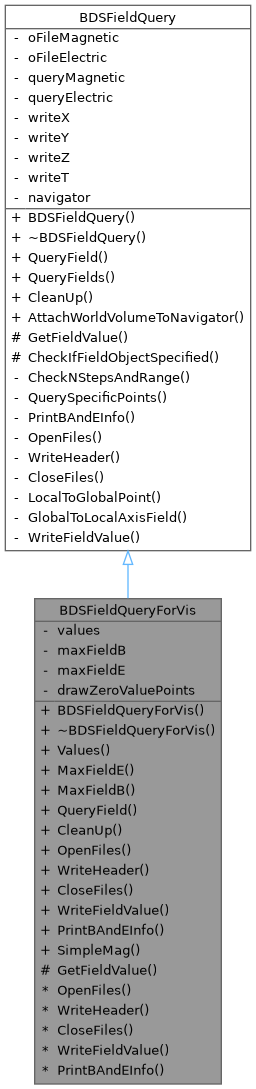

Inheritance diagram for BDSFieldQueryForVis:

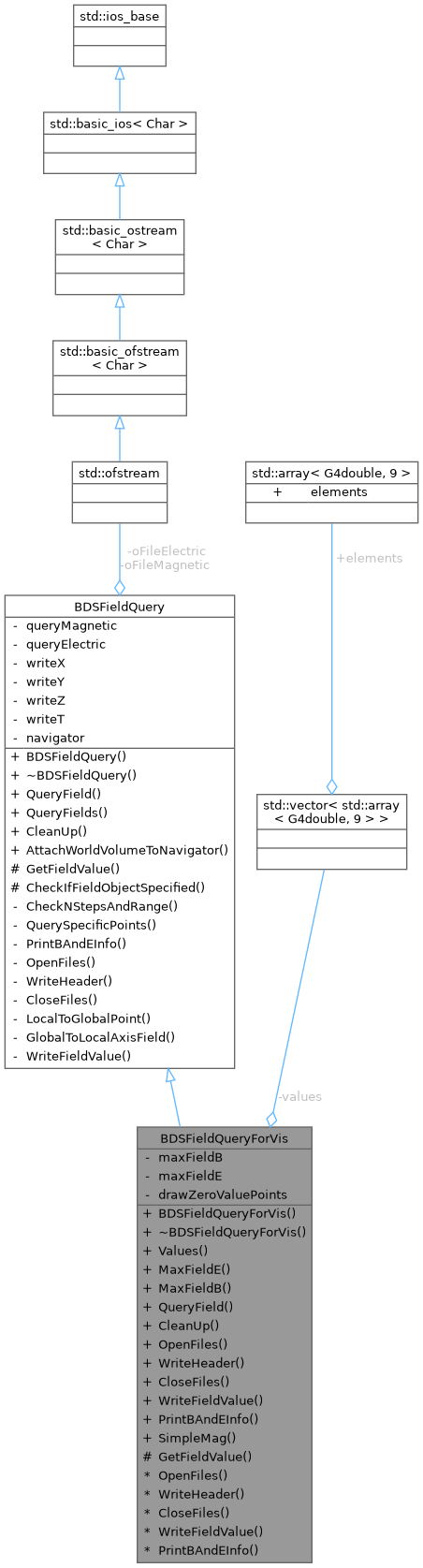

Collaboration diagram for BDSFieldQueryForVis:

Public Member Functions
const std::vector< std::array< G4double, 9 > >	Values () const

G4double	MaxFieldE () const

G4double	MaxFieldB () const

virtual void	QueryField (const BDSFieldQueryInfo *query)
	Reserve the vector size we need first, then proceed as normal. Avoids big copies.

virtual void	CleanUp ()
	Call the base class method and also clear the vector of values in this class.


virtual void	OpenFiles (const BDSFieldQueryInfo *)
	Replace with empty implementation so no file handling is done for visualisation.

virtual void	WriteHeader (std::ofstream &, const BDSFieldQueryInfo *) const
	Replace with empty implementation so no file handling is done for visualisation.

virtual void	CloseFiles ()
	Replace with empty implementation so no file handling is done for visualisation.

virtual void	WriteFieldValue (const G4ThreeVector &, G4double, const G4double[6])
	Replace with empty implementation so no file handling is done for visualisation.

virtual void	PrintBAndEInfo (const BDSFieldQueryInfo *) const
	Replace with empty implementation so no file handling is done for visualisation.

Public Member Functions inherited from BDSFieldQuery
void	QueryFields (const std::vector< BDSFieldQueryInfo * > &fieldQueries)
	Vector version of above function. Unique output files for each query.

Static Public Member Functions
static G4double	SimpleMag (G4double x, G4double y, G4double z)
	Calculate magnitude of 3-vector without having to construct one.

Static Public Member Functions inherited from BDSFieldQuery
static void	AttachWorldVolumeToNavigator (G4VPhysicalVolume *worldPVIn)
	Setup the navigator w.r.t. to a world volume.

Protected Member Functions
virtual void	GetFieldValue (const G4ThreeVector &globalXYZ, const G4ThreeVector &globalDirection, G4double tGlobal, G4double fieldValue[6])
	Call base class method but make a copy of the global position and fields in this class.

Protected Member Functions inherited from BDSFieldQuery
virtual void	CheckIfFieldObjectSpecified (const BDSFieldQueryInfo *query) const
	Warn the user if the fieldObject variable is use when it shouldn't be.

Private Attributes
std::vector< std::array< G4double, 9 > >	values

G4double	maxFieldB

G4double	maxFieldE

G4bool	drawZeroValuePoints

Detailed Description

Wrapper class of BDSFieldQuery that accumulates values for visualisation.

Author: Laurie Nevay

Definition at line 37 of file BDSFieldQueryForVis.hh.

Constructor & Destructor Documentation

◆ BDSFieldQueryForVis()

BDSFieldQueryForVis::BDSFieldQueryForVis ( )

Definition at line 32 of file BDSFieldQueryForVis.cc.

◆ ~BDSFieldQueryForVis()

BDSFieldQueryForVis::~BDSFieldQueryForVis ( )

virtual

Definition at line 38 of file BDSFieldQueryForVis.cc.

Member Function Documentation

◆ CleanUp()

void BDSFieldQueryForVis::CleanUp ( )

virtual

Call the base class method and also clear the vector of values in this class.

Reimplemented from BDSFieldQuery.

Definition at line 41 of file BDSFieldQueryForVis.cc.

References BDSFieldQuery::CleanUp().

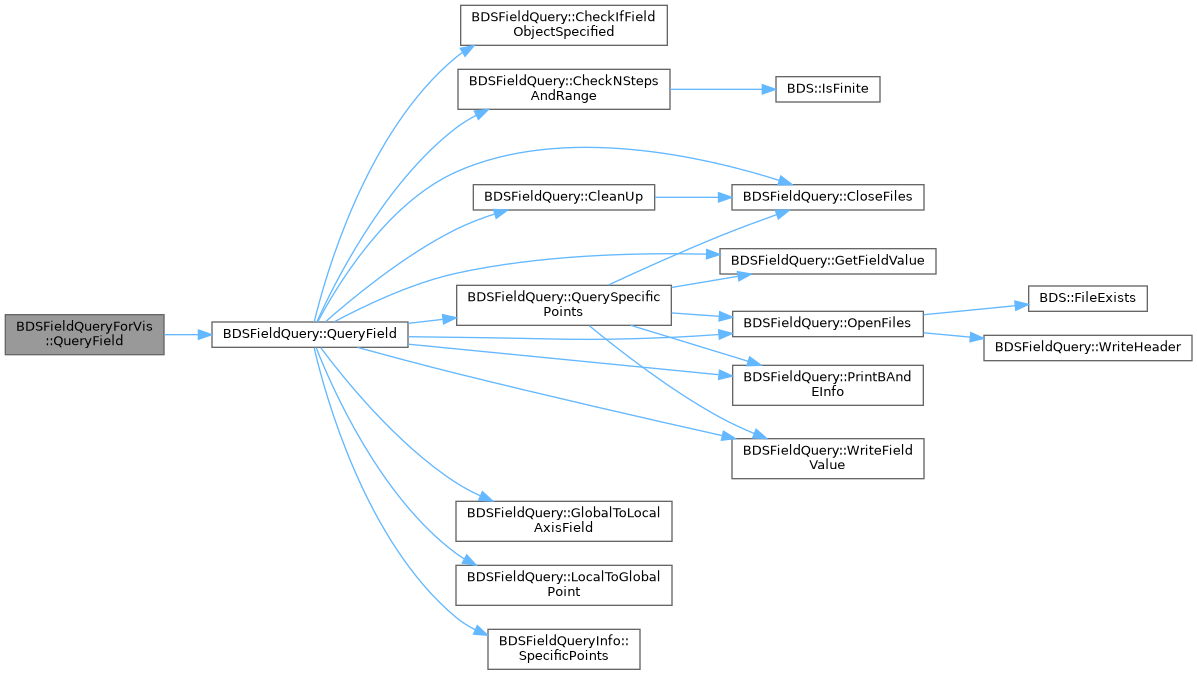

Here is the call graph for this function:

◆ CloseFiles()

virtual void BDSFieldQueryForVis::CloseFiles ( )

inlinevirtual

Replace with empty implementation so no file handling is done for visualisation.

Reimplemented from BDSFieldQuery.

Definition at line 59 of file BDSFieldQueryForVis.hh.

◆ GetFieldValue()

void BDSFieldQueryForVis::GetFieldValue	(	const G4ThreeVector &	globalXYZ,
		const G4ThreeVector &	globalDirection,
		G4double	tGlobal,
		G4double	fieldValue[6]
	)

protectedvirtual

Call base class method but make a copy of the global position and fields in this class.

Reimplemented from BDSFieldQuery.

Definition at line 57 of file BDSFieldQueryForVis.cc.

References BDSFieldQuery::GetFieldValue(), and SimpleMag().

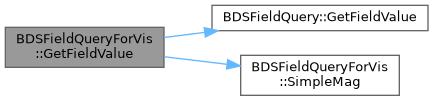

Here is the call graph for this function:

◆ MaxFieldB()

G4double BDSFieldQueryForVis::MaxFieldB ( ) const

inline

Definition at line 45 of file BDSFieldQueryForVis.hh.

◆ MaxFieldE()

G4double BDSFieldQueryForVis::MaxFieldE ( ) const

inline

Definition at line 44 of file BDSFieldQueryForVis.hh.

◆ OpenFiles()

virtual void BDSFieldQueryForVis::OpenFiles ( const BDSFieldQueryInfo * )

inlinevirtual

Replace with empty implementation so no file handling is done for visualisation.

Reimplemented from BDSFieldQuery.

Definition at line 57 of file BDSFieldQueryForVis.hh.

◆ PrintBAndEInfo()

virtual void BDSFieldQueryForVis::PrintBAndEInfo ( const BDSFieldQueryInfo * ) const

inlinevirtual

Replace with empty implementation so no file handling is done for visualisation.

Reimplemented from BDSFieldQuery.

Definition at line 63 of file BDSFieldQueryForVis.hh.

◆ QueryField()

void BDSFieldQueryForVis::QueryField ( const BDSFieldQueryInfo * query )

virtual

Reserve the vector size we need first, then proceed as normal. Avoids big copies.

Reimplemented from BDSFieldQuery.

Definition at line 49 of file BDSFieldQueryForVis.cc.

References BDSFieldQuery::QueryField().

Here is the call graph for this function:

◆ SimpleMag()

G4double BDSFieldQueryForVis::SimpleMag	(	G4double	x,
		G4double	y,
		G4double	z
	)

static

Calculate magnitude of 3-vector without having to construct one.

Definition at line 74 of file BDSFieldQueryForVis.cc.

Referenced by GetFieldValue().

Here is the caller graph for this function:

◆ Values()

const std::vector< std::array< G4double, 9 > > BDSFieldQueryForVis::Values ( ) const

inline

Definition at line 43 of file BDSFieldQueryForVis.hh.

◆ WriteFieldValue()

virtual void BDSFieldQueryForVis::WriteFieldValue	(	const G4ThreeVector &	,
		G4double	,
		const G4double	[6]
	)

inlinevirtual

Replace with empty implementation so no file handling is done for visualisation.

Reimplemented from BDSFieldQuery.

Definition at line 60 of file BDSFieldQueryForVis.hh.

◆ WriteHeader()

virtual void BDSFieldQueryForVis::WriteHeader	(	std::ofstream &	,
		const BDSFieldQueryInfo *
	)		const

inlinevirtual

Replace with empty implementation so no file handling is done for visualisation.

Reimplemented from BDSFieldQuery.

Definition at line 58 of file BDSFieldQueryForVis.hh.

Field Documentation

◆ drawZeroValuePoints

G4bool BDSFieldQueryForVis::drawZeroValuePoints

private

Definition at line 77 of file BDSFieldQueryForVis.hh.

◆ maxFieldB

G4double BDSFieldQueryForVis::maxFieldB

private

Definition at line 75 of file BDSFieldQueryForVis.hh.

◆ maxFieldE

G4double BDSFieldQueryForVis::maxFieldE

private

Definition at line 76 of file BDSFieldQueryForVis.hh.

◆ values

std::vector<std::array<G4double, 9> > BDSFieldQueryForVis::values

private

Definition at line 74 of file BDSFieldQueryForVis.hh.

The documentation for this class was generated from the following files:

/__w/bdsim/bdsim/include/BDSFieldQueryForVis.hh
/__w/bdsim/bdsim/src/BDSFieldQueryForVis.cc
