A vector sum of multiple displaced magnetic fields. More...

#include <BDSFieldMagVectorSum.hh>

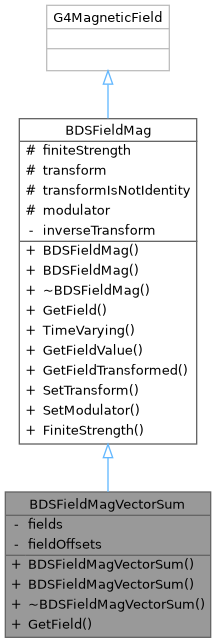

Inheritance diagram for BDSFieldMagVectorSum:

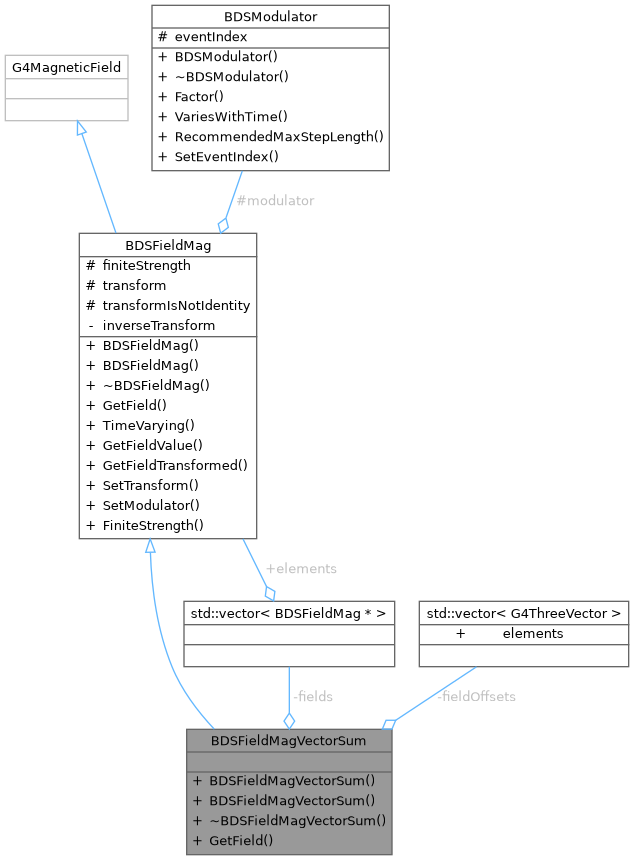

Collaboration diagram for BDSFieldMagVectorSum:

Public Member Functions
	BDSFieldMagVectorSum (const std::vector< BDSFieldMag * > &fieldsIn, const std::vector< G4ThreeVector > &fieldOffsetsIn)

virtual G4ThreeVector	GetField (const G4ThreeVector &position, const G4double t=0) const
	Calculate the field value.

Public Member Functions inherited from BDSFieldMag
	BDSFieldMag ()

	BDSFieldMag (G4Transform3D transformIn)

virtual G4bool	TimeVarying () const

virtual void	GetFieldValue (const G4double point[4], G4double *field) const

virtual G4ThreeVector	GetFieldTransformed (const G4ThreeVector &position, const G4double t) const
	Get the field value after applying transform for local offset.

virtual void	SetTransform (const G4Transform3D &transformIn)

void	SetModulator (BDSModulator *modulatorIn)
	Set the optional modulator.

G4bool	FiniteStrength () const
	Accessor.

Private Attributes
std::vector< BDSFieldMag * >	fields

std::vector< G4ThreeVector >	fieldOffsets

Additional Inherited Members
Protected Attributes inherited from BDSFieldMag
G4bool	finiteStrength
	Flag to cache whether finite nor not.

G4Transform3D	transform
	Transform to apply for the field relative to the local coordinates of the geometry.

G4bool	transformIsNotIdentity
	Cache of whether to use transform at all.

BDSModulator *	modulator
	Optional modulator;.

Detailed Description

A vector sum of multiple displaced magnetic fields.

Author: Laurie Nevay

Definition at line 35 of file BDSFieldMagVectorSum.hh.

Constructor & Destructor Documentation

◆ BDSFieldMagVectorSum()

BDSFieldMagVectorSum::BDSFieldMagVectorSum	(	const std::vector< BDSFieldMag * > &	fieldsIn,
		const std::vector< G4ThreeVector > &	fieldOffsetsIn
	)

explicit

Definition at line 29 of file BDSFieldMagVectorSum.cc.

◆ ~BDSFieldMagVectorSum()

BDSFieldMagVectorSum::~BDSFieldMagVectorSum ( )

virtual

Definition at line 38 of file BDSFieldMagVectorSum.cc.

Member Function Documentation

◆ GetField()

G4ThreeVector BDSFieldMagVectorSum::GetField	(	const G4ThreeVector &	position,
		const G4double	t = `0`
	)		const

virtual

Calculate the field value.

Implements BDSFieldMag.

Definition at line 44 of file BDSFieldMagVectorSum.cc.

Field Documentation

◆ fieldOffsets

std::vector<G4ThreeVector> BDSFieldMagVectorSum::fieldOffsets

private

Definition at line 49 of file BDSFieldMagVectorSum.hh.

◆ fields

std::vector<BDSFieldMag*> BDSFieldMagVectorSum::fields

private

Definition at line 48 of file BDSFieldMagVectorSum.hh.

The documentation for this class was generated from the following files:

/__w/bdsim/bdsim/include/BDSFieldMagVectorSum.hh
/__w/bdsim/bdsim/src/BDSFieldMagVectorSum.cc
