Field of a Muon Spoiler. More...
#include <BDSFieldMagMuonSpoiler.hh>

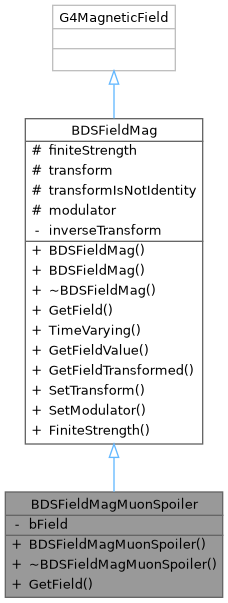

Inheritance diagram for BDSFieldMagMuonSpoiler:

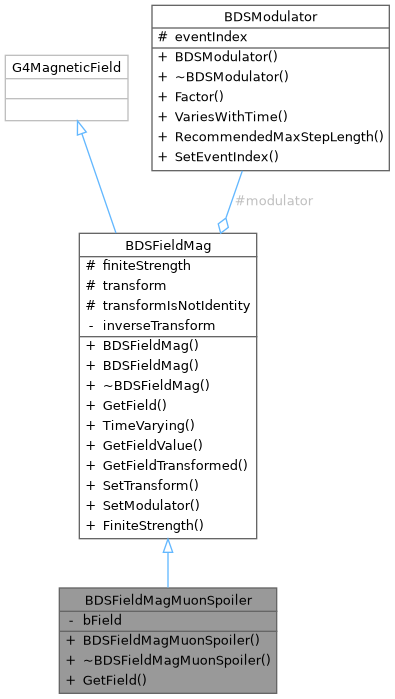

Collaboration diagram for BDSFieldMagMuonSpoiler:
Public Member Functions | |
| BDSFieldMagMuonSpoiler (BDSMagnetStrength const *strength, G4double const brho) | |
| virtual G4ThreeVector | GetField (const G4ThreeVector &position, const G4double t=0) const |
| Access the field value. | |
 Public Member Functions inherited from BDSFieldMag | |
| BDSFieldMag () | |
| BDSFieldMag (G4Transform3D transformIn) | |
| virtual G4bool | TimeVarying () const |
| virtual void | GetFieldValue (const G4double point[4], G4double *field) const |
| virtual G4ThreeVector | GetFieldTransformed (const G4ThreeVector &position, const G4double t) const |
| Get the field value after applying transform for local offset. | |
| virtual void | SetTransform (const G4Transform3D &transformIn) |
| void | SetModulator (BDSModulator *modulatorIn) |
| Set the optional modulator. | |
| G4bool | FiniteStrength () const |
| Accessor. | |
Private Attributes | |
| G4double | bField |
Additional Inherited Members | |
| Protected Attributes inherited from BDSFieldMag | |
| G4bool | finiteStrength |
| Flag to cache whether finite nor not. | |
| G4Transform3D | transform |
| Transform to apply for the field relative to the local coordinates of the geometry. | |
| G4bool | transformIsNotIdentity |
| Cache of whether to use transform at all. | |
| BDSModulator * | modulator |
| Optional modulator;. | |
Detailed Description
Field of a Muon Spoiler.
Definition at line 34 of file BDSFieldMagMuonSpoiler.hh.
Constructor & Destructor Documentation
◆ BDSFieldMagMuonSpoiler()
| BDSFieldMagMuonSpoiler::BDSFieldMagMuonSpoiler | ( | BDSMagnetStrength const * | strength, |
| G4double const | brho | ||
| ) |
Definition at line 29 of file BDSFieldMagMuonSpoiler.cc.
◆ ~BDSFieldMagMuonSpoiler()
|
inlinevirtual |
Definition at line 40 of file BDSFieldMagMuonSpoiler.hh.
Member Function Documentation
◆ GetField()
|
virtual |
Access the field value.
Implements BDSFieldMag.
Definition at line 39 of file BDSFieldMagMuonSpoiler.cc.
Field Documentation
◆ bField
|
private |
Definition at line 47 of file BDSFieldMagMuonSpoiler.hh.
The documentation for this class was generated from the following files:
- /__w/bdsim/bdsim/include/BDSFieldMagMuonSpoiler.hh
- /__w/bdsim/bdsim/src/BDSFieldMagMuonSpoiler.cc
