Sum of two multipole fields spaced by a distance in x. More...

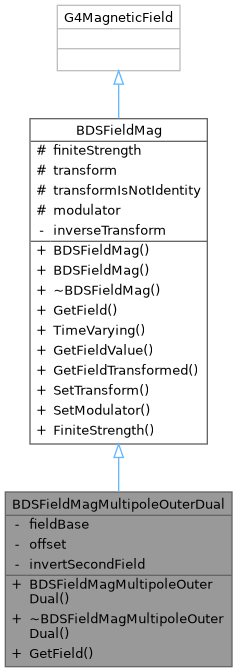

Inheritance diagram for BDSFieldMagMultipoleOuterDual:

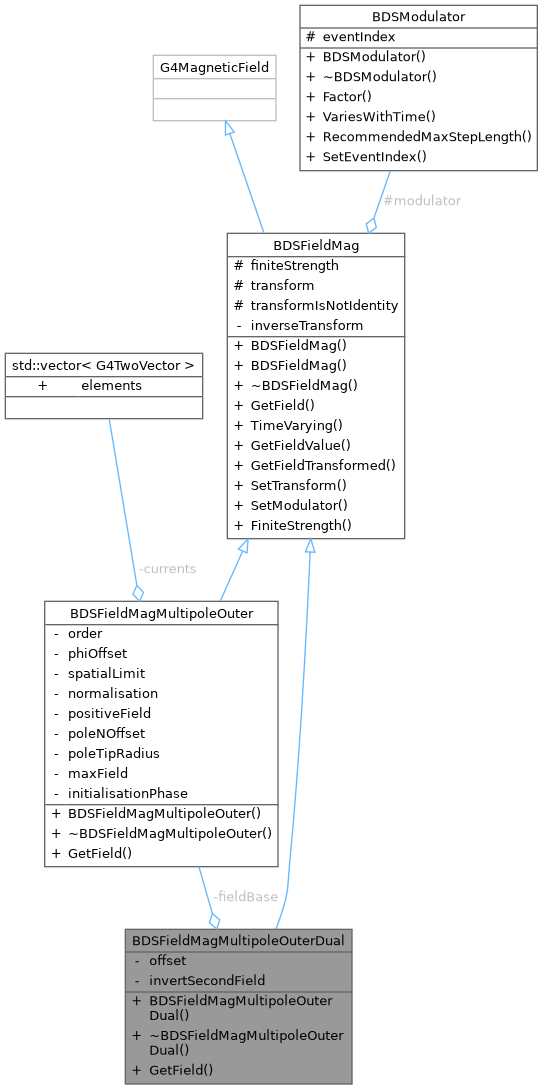

Collaboration diagram for BDSFieldMagMultipoleOuterDual:

Public Member Functions
	BDSFieldMagMultipoleOuterDual (G4int orderIn, G4double poleTipRadius, const BDSFieldMag *innerFieldIn, G4bool kPositive, G4double brho, G4double separation, G4bool secondFieldOnLeft=true, G4bool secondFieldInverted=true, G4double arbitraryScaling=1.0)

virtual G4ThreeVector	GetField (const G4ThreeVector &position, const double t=0) const
	Access the field value.

Public Member Functions inherited from BDSFieldMag
	BDSFieldMag ()

	BDSFieldMag (G4Transform3D transformIn)

virtual G4ThreeVector	GetField (const G4ThreeVector &position, const G4double t=0) const =0

virtual G4bool	TimeVarying () const

virtual void	GetFieldValue (const G4double point[4], G4double *field) const

virtual G4ThreeVector	GetFieldTransformed (const G4ThreeVector &position, const G4double t) const
	Get the field value after applying transform for local offset.

virtual void	SetTransform (const G4Transform3D &transformIn)

void	SetModulator (BDSModulator *modulatorIn)
	Set the optional modulator.

G4bool	FiniteStrength () const
	Accessor.

Private Attributes
BDSFieldMagMultipoleOuter *	fieldBase

G4ThreeVector	offset

G4bool	invertSecondField

Additional Inherited Members
Protected Attributes inherited from BDSFieldMag
G4bool	finiteStrength
	Flag to cache whether finite nor not.

G4Transform3D	transform
	Transform to apply for the field relative to the local coordinates of the geometry.

G4bool	transformIsNotIdentity
	Cache of whether to use transform at all.

BDSModulator *	modulator
	Optional modulator;.

Detailed Description

Sum of two multipole fields spaced by a distance in x.

Constructor & Destructor Documentation

BDSFieldMagMultipoleOuterDual::BDSFieldMagMultipoleOuterDual	(	G4int	orderIn,
		G4double	poleTipRadius,
		const BDSFieldMag *	innerFieldIn,
		G4bool	kPositive,
		G4double	brho,
		G4double	separation,
		G4bool	secondFieldOnLeft = `true`,
		G4bool	secondFieldInverted = `true`,
		G4double	arbitraryScaling = `1.0`
	)
