BDSFieldMagDipoleHardEdgeMuonCooler Class Reference

This class represents a hard-edge dipole field. The field is calculated in cartesian coordinates. More...

#include <BDSFieldMagDipoleHardEdgeMuonCooler.hh>

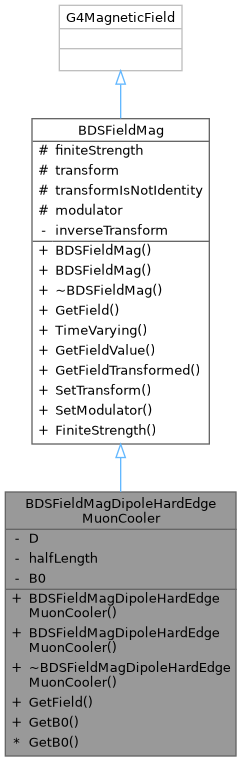

Inheritance diagram for BDSFieldMagDipoleHardEdgeMuonCooler:

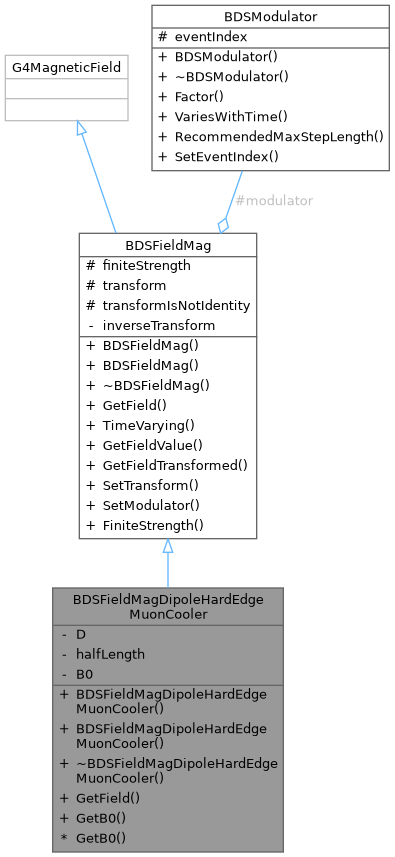

Collaboration diagram for BDSFieldMagDipoleHardEdgeMuonCooler:

Public Member Functions
	BDSFieldMagDipoleHardEdgeMuonCooler (G4double strength, G4double apertureRadius, G4double coilLength)
virtual G4ThreeVector	GetField (const G4ThreeVector &position, const G4double t=0) const
	Calculate the field value.
G4double	GetB0 () const
	Accessor.
Public Member Functions inherited from BDSFieldMag
	BDSFieldMag ()
	BDSFieldMag (G4Transform3D transformIn)
virtual G4bool	TimeVarying () const
virtual void	GetFieldValue (const G4double point[4], G4double *field) const
virtual G4ThreeVector	GetFieldTransformed (const G4ThreeVector &position, const G4double t) const
	Get the field value after applying transform for local offset.
virtual void	SetTransform (const G4Transform3D &transformIn)
void	SetModulator (BDSModulator *modulatorIn)
	Set the optional modulator.
G4bool	FiniteStrength () const
	Accessor.

Private Attributes
G4double	D
	Private default constructor to ensure use of supplied constructor.
G4double	halfLength
G4double	B0

Additional Inherited Members
Protected Attributes inherited from BDSFieldMag
G4bool	finiteStrength
	Flag to cache whether finite nor not.
G4Transform3D	transform
	Transform to apply for the field relative to the local coordinates of the geometry.
G4bool	transformIsNotIdentity
	Cache of whether to use transform at all.
BDSModulator *	modulator
	Optional modulator;.

Detailed Description

This class represents a hard-edge dipole field. The field is calculated in cartesian coordinates.

Author

Paul Bogdan Jurj

Definition at line 36 of file BDSFieldMagDipoleHardEdgeMuonCooler.hh.

Constructor & Destructor Documentation

BDSFieldMagDipoleHardEdgeMuonCooler()

BDSFieldMagDipoleHardEdgeMuonCooler::BDSFieldMagDipoleHardEdgeMuonCooler	(	G4double	strength,
		G4double	apertureRadius,
		G4double	coilLength
	)

Definition at line 34 of file BDSFieldMagDipoleHardEdgeMuonCooler.cc.

~BDSFieldMagDipoleHardEdgeMuonCooler()

virtual BDSFieldMagDipoleHardEdgeMuonCooler::~BDSFieldMagDipoleHardEdgeMuonCooler ( )

inlinevirtual

Definition at line 47 of file BDSFieldMagDipoleHardEdgeMuonCooler.hh.

Member Function Documentation

GetB0()

G4double BDSFieldMagDipoleHardEdgeMuonCooler::GetB0 ( ) const

inline

Accessor.

Definition at line 54 of file BDSFieldMagDipoleHardEdgeMuonCooler.hh.

GetField()

G4ThreeVector BDSFieldMagDipoleHardEdgeMuonCooler::GetField ( const G4ThreeVector &  position, const G4double  t = 0  ) const

virtual

Calculate the field value.

Implements BDSFieldMag.

Definition at line 43 of file BDSFieldMagDipoleHardEdgeMuonCooler.cc.

References D.

Field Documentation

B0

G4double BDSFieldMagDipoleHardEdgeMuonCooler::B0

private

Definition at line 62 of file BDSFieldMagDipoleHardEdgeMuonCooler.hh.

D

G4double BDSFieldMagDipoleHardEdgeMuonCooler::D

private

Private default constructor to ensure use of supplied constructor.

Definition at line 60 of file BDSFieldMagDipoleHardEdgeMuonCooler.hh.

Referenced by GetField().

halfLength

G4double BDSFieldMagDipoleHardEdgeMuonCooler::halfLength

private

Definition at line 61 of file BDSFieldMagDipoleHardEdgeMuonCooler.hh.

---

The documentation for this class was generated from the following files:

• /__w/bdsim/bdsim/include/BDSFieldMagDipoleHardEdgeMuonCooler.hh
• /__w/bdsim/bdsim/src/BDSFieldMagDipoleHardEdgeMuonCooler.cc
