BDSFieldMagDipoleEnge Class Reference

A dipole field with Enge-type fringes. This follows the model and parameterisation described in: https://journals.aps.org/prab/abstract/10.1103/PhysRevSTAB.18.064001 This class represents a dipole field with Enge fringes. To expand description. The field is calculated in cartesian coordinates. A complete description to be added in the manual. More...

#include <BDSFieldMagDipoleEnge.hh>

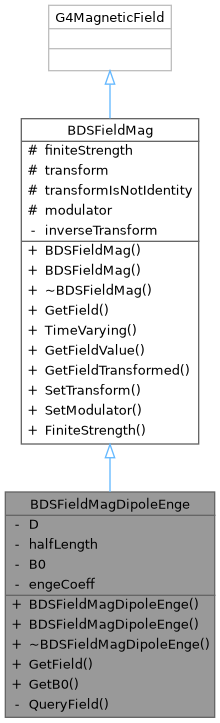

Inheritance diagram for BDSFieldMagDipoleEnge:

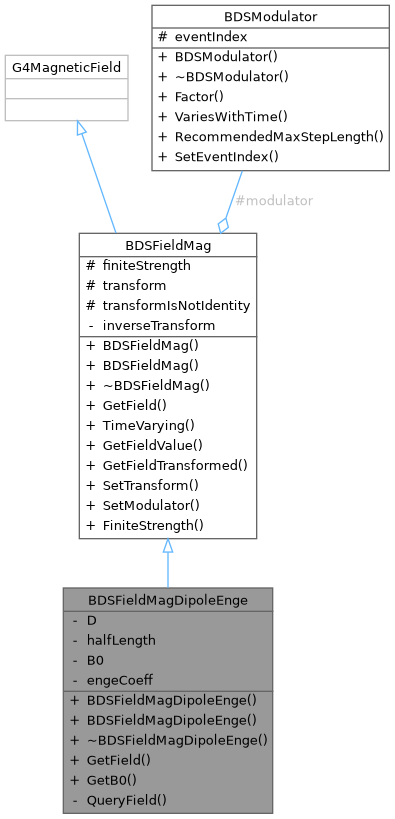

Collaboration diagram for BDSFieldMagDipoleEnge:

Public Member Functions
	BDSFieldMagDipoleEnge (G4double strength, G4double apertureRadius, G4double coilLength, G4double engeCoefficient)
	More reasonable constructor for the internal parameterisation. 'strength' represents B0.
virtual G4ThreeVector	GetField (const G4ThreeVector &position, const G4double t=0) const
	Calculate the field value.
G4double	GetB0 () const
	Accessor.
Public Member Functions inherited from BDSFieldMag
	BDSFieldMag ()
	BDSFieldMag (G4Transform3D transformIn)
virtual G4bool	TimeVarying () const
virtual void	GetFieldValue (const G4double point[4], G4double *field) const
virtual G4ThreeVector	GetFieldTransformed (const G4ThreeVector &position, const G4double t) const
	Get the field value after applying transform for local offset.
virtual void	SetTransform (const G4Transform3D &transformIn)
void	SetModulator (BDSModulator *modulatorIn)
	Set the optional modulator.
G4bool	FiniteStrength () const
	Accessor.

Private Member Functions
G4ThreeVector	QueryField (G4double y, G4double z) const

Private Attributes
G4double	D
G4double	halfLength
G4double	B0
G4double	engeCoeff

Additional Inherited Members
Protected Attributes inherited from BDSFieldMag
G4bool	finiteStrength
	Flag to cache whether finite nor not.
G4Transform3D	transform
	Transform to apply for the field relative to the local coordinates of the geometry.
G4bool	transformIsNotIdentity
	Cache of whether to use transform at all.
BDSModulator *	modulator
	Optional modulator;.

Detailed Description

A dipole field with Enge-type fringes. This follows the model and parameterisation described in: https://journals.aps.org/prab/abstract/10.1103/PhysRevSTAB.18.064001 This class represents a dipole field with Enge fringes. To expand description. The field is calculated in cartesian coordinates. A complete description to be added in the manual.

Author

Paul Bogdan Jurj

Definition at line 39 of file BDSFieldMagDipoleEnge.hh.

Constructor & Destructor Documentation

BDSFieldMagDipoleEnge()

BDSFieldMagDipoleEnge::BDSFieldMagDipoleEnge	(	G4double	strength,
		G4double	apertureRadius,
		G4double	coilLength,
		G4double	engeCoefficient
	)

More reasonable constructor for the internal parameterisation. 'strength' represents B0.

This constructor uses the "field" and "length" parameters from the BDSMagnetStrength instance and forwards to the next constructor. BDSFieldMagDipoleEnge(BDSMagnetStrength const* strength, G4double apertureIn ,G4double engeIn = 1.0, G4double toleranceIn = 0.0);

Definition at line 33 of file BDSFieldMagDipoleEnge.cc.

~BDSFieldMagDipoleEnge()

virtual BDSFieldMagDipoleEnge::~BDSFieldMagDipoleEnge ( )

inlinevirtual

Definition at line 55 of file BDSFieldMagDipoleEnge.hh.

Member Function Documentation

GetB0()

G4double BDSFieldMagDipoleEnge::GetB0 ( ) const

inline

Accessor.

Definition at line 61 of file BDSFieldMagDipoleEnge.hh.

GetField()

G4ThreeVector BDSFieldMagDipoleEnge::GetField ( const G4ThreeVector &  position, const G4double  t = 0  ) const

virtual

Calculate the field value.

Implements BDSFieldMag.

Definition at line 43 of file BDSFieldMagDipoleEnge.cc.

QueryField()

G4ThreeVector BDSFieldMagDipoleEnge::QueryField ( G4double  y, G4double  z  ) const

private

Definition at line 81 of file BDSFieldMagDipoleEnge.cc.

Field Documentation

B0

G4double BDSFieldMagDipoleEnge::B0

private

Definition at line 68 of file BDSFieldMagDipoleEnge.hh.

D

G4double BDSFieldMagDipoleEnge::D

private

Definition at line 66 of file BDSFieldMagDipoleEnge.hh.

engeCoeff

G4double BDSFieldMagDipoleEnge::engeCoeff

private

Definition at line 69 of file BDSFieldMagDipoleEnge.hh.

halfLength

G4double BDSFieldMagDipoleEnge::halfLength

private

Definition at line 67 of file BDSFieldMagDipoleEnge.hh.

---

The documentation for this class was generated from the following files:

• /__w/bdsim/bdsim/include/BDSFieldMagDipoleEnge.hh
• /__w/bdsim/bdsim/src/BDSFieldMagDipoleEnge.cc
