Field with different inner and an outer solenoid field. More...

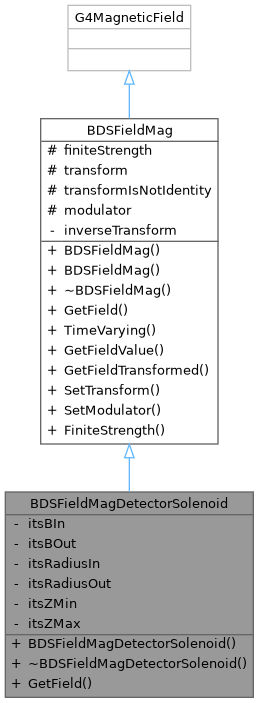

Inheritance diagram for BDSFieldMagDetectorSolenoid:

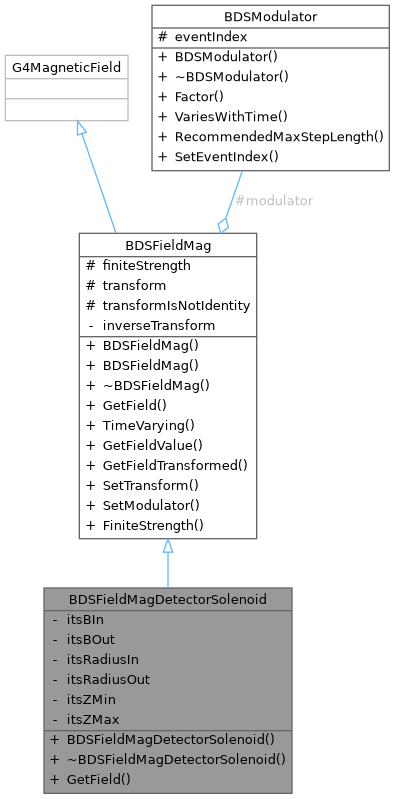

Collaboration diagram for BDSFieldMagDetectorSolenoid:

Public Member Functions
	BDSFieldMagDetectorSolenoid (G4double BIn, G4double Bout, G4double radiusIn, G4double radiusOut, G4double zMin, G4double zMax)

virtual G4ThreeVector	GetField (const G4ThreeVector &position, const G4double t=0) const
	Get the magnetic field vector in local coordinates.

Public Member Functions inherited from BDSFieldMag
	BDSFieldMag ()

	BDSFieldMag (G4Transform3D transformIn)

virtual G4bool	TimeVarying () const

virtual void	GetFieldValue (const G4double point[4], G4double *field) const

virtual G4ThreeVector	GetFieldTransformed (const G4ThreeVector &position, const G4double t) const
	Get the field value after applying transform for local offset.

virtual void	SetTransform (const G4Transform3D &transformIn)

void	SetModulator (BDSModulator *modulatorIn)
	Set the optional modulator.

G4bool	FiniteStrength () const
	Accessor.

Additional Inherited Members
Protected Attributes inherited from BDSFieldMag
G4bool	finiteStrength
	Flag to cache whether finite nor not.

G4Transform3D	transform
	Transform to apply for the field relative to the local coordinates of the geometry.

G4bool	transformIsNotIdentity
	Cache of whether to use transform at all.

BDSModulator *	modulator
	Optional modulator;.

Detailed Description

Field with different inner and an outer solenoid field.

Constructor & Destructor Documentation

BDSFieldMagDetectorSolenoid::BDSFieldMagDetectorSolenoid	(	G4double	BIn,
		G4double	Bout,
		G4double	radiusIn,
		G4double	radiusOut,
		G4double	zMin,
		G4double	zMax
	)
