necessary extra information for a muon cooler field. More...

#include <BDSFieldInfoExtra.hh>

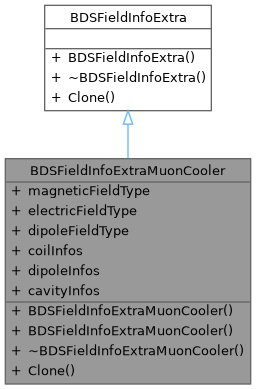

Inheritance diagram for BDSFieldInfoExtraMuonCooler:

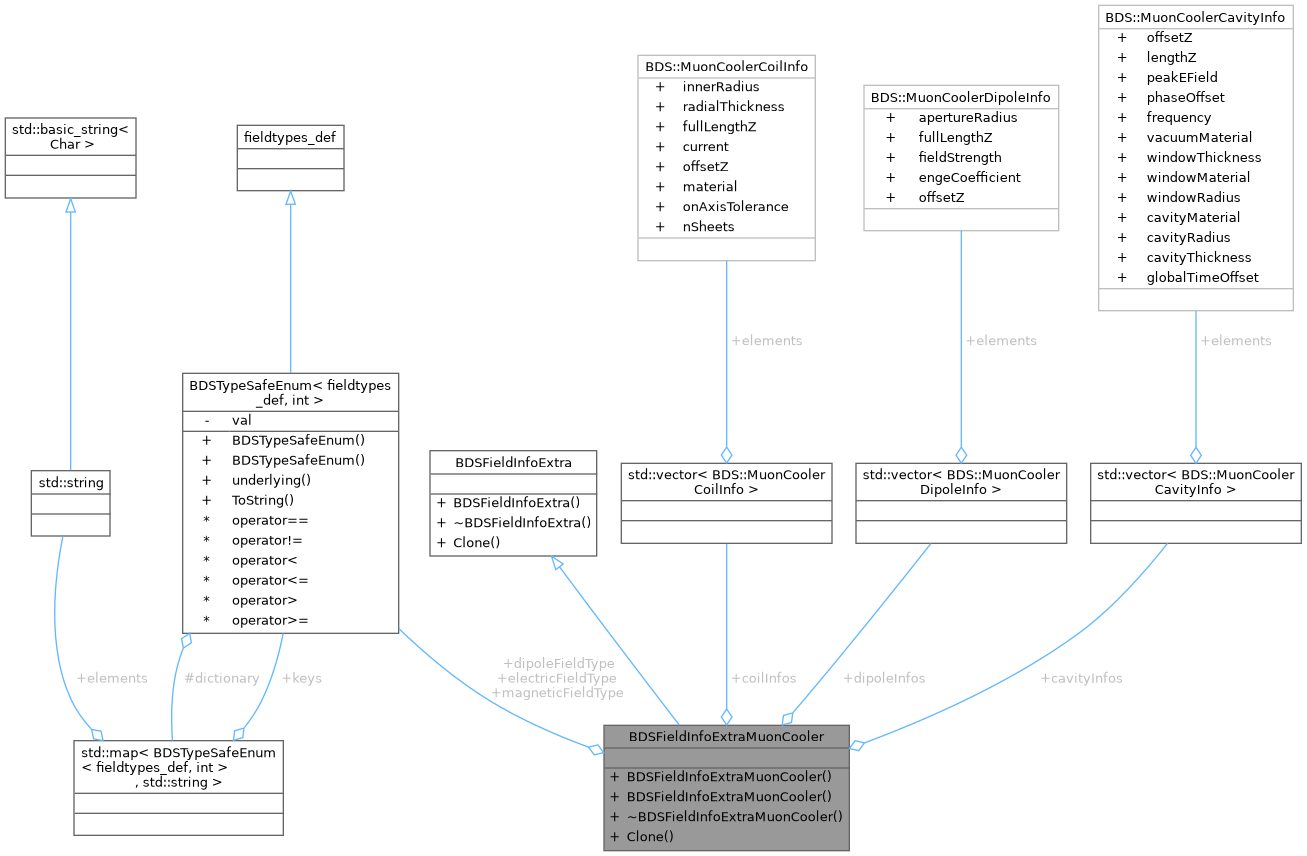

Collaboration diagram for BDSFieldInfoExtraMuonCooler:

Public Member Functions
	BDSFieldInfoExtraMuonCooler (BDSFieldType magneticFieldTypeIn, BDSFieldType electricFieldTypeIn, BDSFieldType dipoleFieldTypeIn, const std::vector< BDS::MuonCoolerCoilInfo > &coilInfosIn, const std::vector< BDS::MuonCoolerDipoleInfo > &dipoleInfosIn, const std::vector< BDS::MuonCoolerCavityInfo > &cavityInfosIn)

virtual BDSFieldInfoExtra *	Clone () const
	Derived class must implement for copying.

Data Fields
BDSFieldType	magneticFieldType
	Type of the magnetic sub-field.

BDSFieldType	electricFieldType
	Type of the electric sub-field.

BDSFieldType	dipoleFieldType
	Type of the dipole sub-field.

std::vector< BDS::MuonCoolerCoilInfo >	coilInfos

std::vector< BDS::MuonCoolerDipoleInfo >	dipoleInfos

std::vector< BDS::MuonCoolerCavityInfo >	cavityInfos

Detailed Description

necessary extra information for a muon cooler field.

Author: Laurie Nevay

Definition at line 57 of file BDSFieldInfoExtra.hh.

Constructor & Destructor Documentation

◆ BDSFieldInfoExtraMuonCooler()

BDSFieldInfoExtraMuonCooler::BDSFieldInfoExtraMuonCooler	(	BDSFieldType	magneticFieldTypeIn,
		BDSFieldType	electricFieldTypeIn,
		BDSFieldType	dipoleFieldTypeIn,
		const std::vector< BDS::MuonCoolerCoilInfo > &	coilInfosIn,
		const std::vector< BDS::MuonCoolerDipoleInfo > &	dipoleInfosIn,
		const std::vector< BDS::MuonCoolerCavityInfo > &	cavityInfosIn
	)

inline

Parameters

dipoleFieldTypeIn Revisit

Definition at line 61 of file BDSFieldInfoExtra.hh.

◆ ~BDSFieldInfoExtraMuonCooler()

virtual BDSFieldInfoExtraMuonCooler::~BDSFieldInfoExtraMuonCooler ( )

inlinevirtual

Definition at line 74 of file BDSFieldInfoExtra.hh.

Member Function Documentation

◆ Clone()

virtual BDSFieldInfoExtra * BDSFieldInfoExtraMuonCooler::Clone ( ) const

inlinevirtual

Derived class must implement for copying.

Implements BDSFieldInfoExtra.

Definition at line 83 of file BDSFieldInfoExtra.hh.

Field Documentation

◆ cavityInfos

std::vector<BDS::MuonCoolerCavityInfo> BDSFieldInfoExtraMuonCooler::cavityInfos

Definition at line 81 of file BDSFieldInfoExtra.hh.

◆ coilInfos

std::vector<BDS::MuonCoolerCoilInfo> BDSFieldInfoExtraMuonCooler::coilInfos

Definition at line 79 of file BDSFieldInfoExtra.hh.

◆ dipoleFieldType

BDSFieldType BDSFieldInfoExtraMuonCooler::dipoleFieldType

Type of the dipole sub-field.

Definition at line 78 of file BDSFieldInfoExtra.hh.

◆ dipoleInfos

std::vector<BDS::MuonCoolerDipoleInfo> BDSFieldInfoExtraMuonCooler::dipoleInfos

Definition at line 80 of file BDSFieldInfoExtra.hh.

◆ electricFieldType

BDSFieldType BDSFieldInfoExtraMuonCooler::electricFieldType

Type of the electric sub-field.

Definition at line 77 of file BDSFieldInfoExtra.hh.

◆ magneticFieldType

BDSFieldType BDSFieldInfoExtraMuonCooler::magneticFieldType

Type of the magnetic sub-field.

Definition at line 76 of file BDSFieldInfoExtra.hh.

The documentation for this class was generated from the following file:

/__w/bdsim/bdsim/include/BDSFieldInfoExtra.hh
