BDSBOptrMultiParticleChangeCrossSection Class Reference

Multi-particle cross-section changer. More...

#include <BDSBOptrMultiParticleChangeCrossSection.hh>

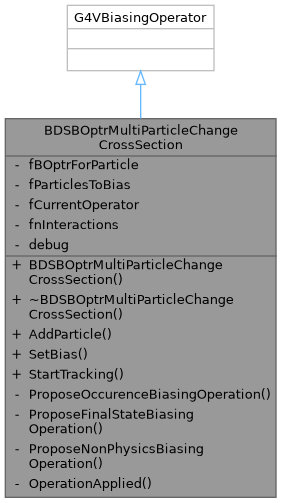

Inheritance diagram for BDSBOptrMultiParticleChangeCrossSection:

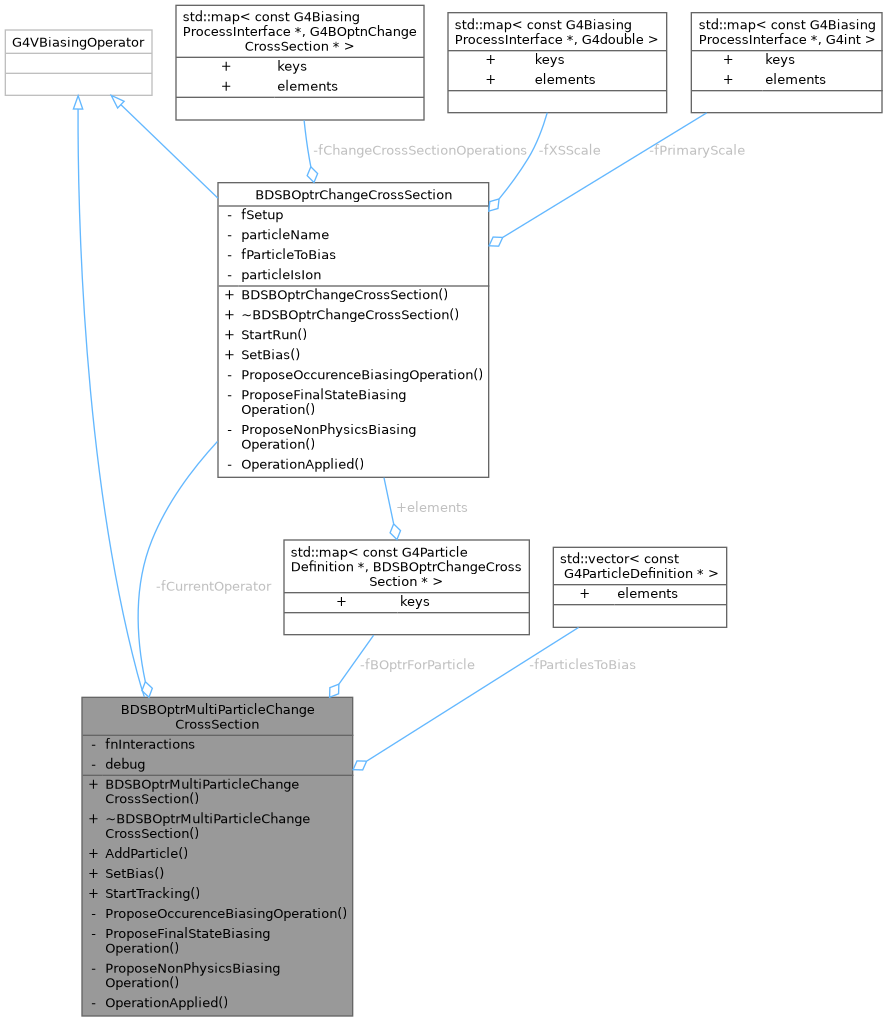

Collaboration diagram for BDSBOptrMultiParticleChangeCrossSection:

Public Member Functions
void	AddParticle (const G4String &particleName)
void	SetBias (const G4String &biasObjectName, const G4String &particleName, const G4String &process, G4double dBias, G4int iPrimary)
void	StartTracking (const G4Track *track) override

Private Member Functions
virtual G4VBiasingOperation *	ProposeOccurenceBiasingOperation (const G4Track *track, const G4BiasingProcessInterface *callingProcess) override
virtual G4VBiasingOperation *	ProposeFinalStateBiasingOperation (const G4Track *, const G4BiasingProcessInterface *) override
virtual G4VBiasingOperation *	ProposeNonPhysicsBiasingOperation (const G4Track *, const G4BiasingProcessInterface *) override
virtual void	OperationApplied (const G4BiasingProcessInterface *callingProcess, G4BiasingAppliedCase biasingCase, G4VBiasingOperation *occurenceOperationApplied, G4double weightForOccurenceInteraction, G4VBiasingOperation *finalStateOperationApplied, const G4VParticleChange *particleChangeProduced) override

Private Attributes
std::map< const G4ParticleDefinition *, BDSBOptrChangeCrossSection * >	fBOptrForParticle
std::vector< const G4ParticleDefinition * >	fParticlesToBias
BDSBOptrChangeCrossSection *	fCurrentOperator
G4int	fnInteractions
	Count number of biased interations for current track.
G4bool	debug

Detailed Description

Multi-particle cross-section changer.

This class uses classes from Geant4 10.0 and is dependent on BDSBOptChangeCrossSection which needs 10.1.

Largely based on the Geant4 example of this feature.

Author

Stewar Boogert

Definition at line 41 of file BDSBOptrMultiParticleChangeCrossSection.hh.

Constructor & Destructor Documentation

BDSBOptrMultiParticleChangeCrossSection()

BDSBOptrMultiParticleChangeCrossSection::BDSBOptrMultiParticleChangeCrossSection

(

)

Definition at line 35 of file BDSBOptrMultiParticleChangeCrossSection.cc.

~BDSBOptrMultiParticleChangeCrossSection()

BDSBOptrMultiParticleChangeCrossSection::~BDSBOptrMultiParticleChangeCrossSection ( )

virtual

Definition at line 47 of file BDSBOptrMultiParticleChangeCrossSection.cc.

Member Function Documentation

AddParticle()

void BDSBOptrMultiParticleChangeCrossSection::AddParticle

(

const G4String &

particleName

)

Definition at line 50 of file BDSBOptrMultiParticleChangeCrossSection.cc.

OperationApplied()

void BDSBOptrMultiParticleChangeCrossSection::OperationApplied ( const G4BiasingProcessInterface *  callingProcess, G4BiasingAppliedCase  biasingCase, G4VBiasingOperation *  occurenceOperationApplied, G4double  weightForOccurenceInteraction, G4VBiasingOperation *  finalStateOperationApplied, const G4VParticleChange *  particleChangeProduced  )

overrideprivatevirtual

Definition at line 141 of file BDSBOptrMultiParticleChangeCrossSection.cc.

ProposeFinalStateBiasingOperation()

virtual G4VBiasingOperation * BDSBOptrMultiParticleChangeCrossSection::ProposeFinalStateBiasingOperation ( const G4Track *  , const G4BiasingProcessInterface *    )

inlineoverrideprivatevirtual

Definition at line 59 of file BDSBOptrMultiParticleChangeCrossSection.hh.

ProposeNonPhysicsBiasingOperation()

virtual G4VBiasingOperation * BDSBOptrMultiParticleChangeCrossSection::ProposeNonPhysicsBiasingOperation ( const G4Track *  , const G4BiasingProcessInterface *    )

inlineoverrideprivatevirtual

Definition at line 61 of file BDSBOptrMultiParticleChangeCrossSection.hh.

ProposeOccurenceBiasingOperation()

G4VBiasingOperation * BDSBOptrMultiParticleChangeCrossSection::ProposeOccurenceBiasingOperation ( const G4Track *  track, const G4BiasingProcessInterface *  callingProcess  )

overrideprivatevirtual

Definition at line 103 of file BDSBOptrMultiParticleChangeCrossSection.cc.

SetBias()

void BDSBOptrMultiParticleChangeCrossSection::SetBias	(	const G4String &	biasObjectName,
		const G4String &	particleName,
		const G4String &	process,
		G4double	dBias,
		G4int	iPrimary
	)

Definition at line 63 of file BDSBOptrMultiParticleChangeCrossSection.cc.

StartTracking()

void BDSBOptrMultiParticleChangeCrossSection::StartTracking ( const G4Track *  track )

override

Definition at line 120 of file BDSBOptrMultiParticleChangeCrossSection.cc.

Field Documentation

debug

G4bool BDSBOptrMultiParticleChangeCrossSection::debug

private

Definition at line 77 of file BDSBOptrMultiParticleChangeCrossSection.hh.

fBOptrForParticle

std::map<const G4ParticleDefinition*, BDSBOptrChangeCrossSection*> BDSBOptrMultiParticleChangeCrossSection::fBOptrForParticle

private

Definition at line 72 of file BDSBOptrMultiParticleChangeCrossSection.hh.

fCurrentOperator

BDSBOptrChangeCrossSection* BDSBOptrMultiParticleChangeCrossSection::fCurrentOperator

private

Definition at line 74 of file BDSBOptrMultiParticleChangeCrossSection.hh.

fnInteractions

G4int BDSBOptrMultiParticleChangeCrossSection::fnInteractions

private

Count number of biased interations for current track.

Definition at line 76 of file BDSBOptrMultiParticleChangeCrossSection.hh.

fParticlesToBias

std::vector<const G4ParticleDefinition*> BDSBOptrMultiParticleChangeCrossSection::fParticlesToBias

private

Definition at line 73 of file BDSBOptrMultiParticleChangeCrossSection.hh.

---

The documentation for this class was generated from the following files:

• /__w/bdsim/bdsim/include/BDSBOptrMultiParticleChangeCrossSection.hh
• /__w/bdsim/bdsim/src/BDSBOptrMultiParticleChangeCrossSection.cc
