BDSBLMRegistry Class Reference

Registry of all BLMs so we know each one uniquely. More...

#include <BDSBLMRegistry.hh>

Collaboration diagram for BDSBLMRegistry:

Public Member Functions
G4int	RegisterBLM (G4String name, BDSBLM *blm, G4double SIn=-1000)
size_t	size () const
G4int	NBLMs () const
const std::set< BDSBLM * > &	BLMs () const

Static Public Member Functions
static BDSBLMRegistry *	Instance ()
	Accessor for registry.

Private Member Functions
	BDSBLMRegistry ()
	Private constructor to enforce singleton pattern.

Private Attributes
G4int	numberOfEntries
std::set< BDSBLM * >	blms
	Cache of unique sampler objects for memory management.
std::vector< BDSBLM * >	blmsVector
std::vector< G4String >	names
std::vector< G4double >	S

Static Private Attributes
static BDSBLMRegistry *	instance = nullptr
	Singleton instance.

Detailed Description

Registry of all BLMs so we know each one uniquely.

Author

Laurie Nevay

Definition at line 35 of file BDSBLMRegistry.hh.

Constructor & Destructor Documentation

~BDSBLMRegistry()

BDSBLMRegistry::~BDSBLMRegistry

(

)

Definition at line 39 of file BDSBLMRegistry.cc.

BDSBLMRegistry()

BDSBLMRegistry::BDSBLMRegistry ( )

private

Private constructor to enforce singleton pattern.

Definition at line 35 of file BDSBLMRegistry.cc.

Referenced by Instance().

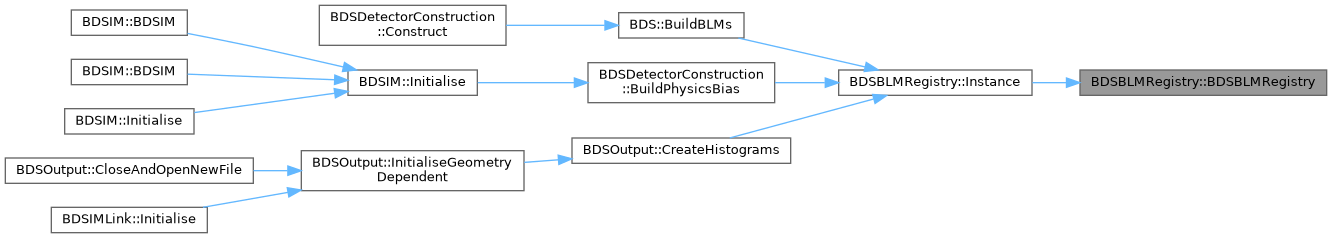

Here is the caller graph for this function:

Member Function Documentation

BLMs()

const std::set< BDSBLM * > & BDSBLMRegistry::BLMs ( ) const

inline

Definition at line 49 of file BDSBLMRegistry.hh.

Instance()

BDSBLMRegistry * BDSBLMRegistry::Instance ( )

static

Accessor for registry.

Definition at line 28 of file BDSBLMRegistry.cc.

References BDSBLMRegistry(), and instance.

Referenced by BDS::BuildBLMs(), BDSDetectorConstruction::BuildPhysicsBias(), and BDSOutput::CreateHistograms().

Here is the call graph for this function:

Here is the caller graph for this function:

NBLMs()

G4int BDSBLMRegistry::NBLMs ( ) const

inline

Definition at line 48 of file BDSBLMRegistry.hh.

RegisterBLM()

G4int BDSBLMRegistry::RegisterBLM	(	G4String	name,
		BDSBLM *	blm,
		G4double	SIn = -1000
	)

Definition at line 46 of file BDSBLMRegistry.cc.

size()

size_t BDSBLMRegistry::size ( ) const

inline

Definition at line 47 of file BDSBLMRegistry.hh.

Field Documentation

blms

std::set<BDSBLM*> BDSBLMRegistry::blms

private

Cache of unique sampler objects for memory management.

Definition at line 63 of file BDSBLMRegistry.hh.

blmsVector

std::vector<BDSBLM*> BDSBLMRegistry::blmsVector

private

Definition at line 65 of file BDSBLMRegistry.hh.

instance

BDSBLMRegistry * BDSBLMRegistry::instance = nullptr

staticprivate

Singleton instance.

Definition at line 56 of file BDSBLMRegistry.hh.

Referenced by Instance().

names

std::vector<G4String> BDSBLMRegistry::names

private

Definition at line 66 of file BDSBLMRegistry.hh.

numberOfEntries

G4int BDSBLMRegistry::numberOfEntries

private

Counter for easy checking of out of bounds and incrementing. Also the index in the member vectors, so zero counting.

Definition at line 60 of file BDSBLMRegistry.hh.

S

std::vector<G4double> BDSBLMRegistry::S

private

Definition at line 67 of file BDSBLMRegistry.hh.

---

The documentation for this class was generated from the following files:

• /__w/bdsim/bdsim/include/BDSBLMRegistry.hh
• /__w/bdsim/bdsim/src/BDSBLMRegistry.cc
