BDSArrayOperatorIndexV Class Reference

Vectorised version of BDSArrayOperatorIndex. More...

#include <BDSArrayOperatorIndexV.hh>

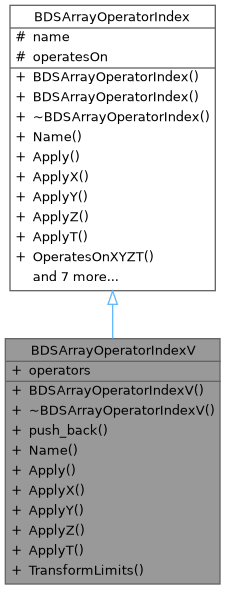

Inheritance diagram for BDSArrayOperatorIndexV:

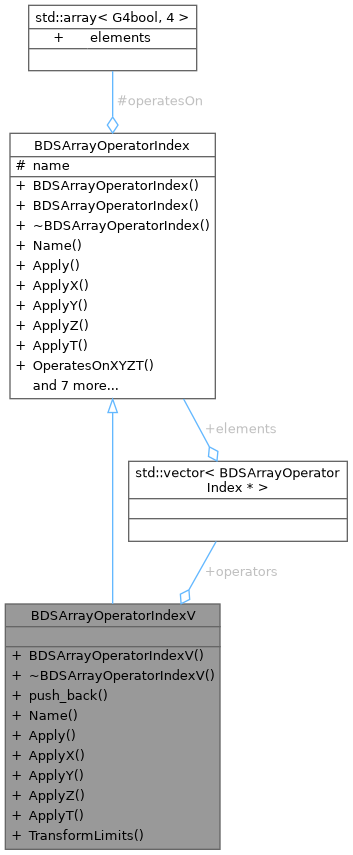

Collaboration diagram for BDSArrayOperatorIndexV:

Public Member Functions
void	push_back (BDSArrayOperatorIndex *operatorIn)
	Append an operator to the vector.
virtual G4String	Name () const
	Supply a name of this operator for feedback to the user in print out.
virtual void	Apply (G4int &x, G4int &y, G4int &z, G4int &t) const
virtual void	ApplyX (G4int &x) const
virtual void	ApplyY (G4int &y) const
virtual void	ApplyZ (G4int &z) const
virtual void	ApplyT (G4int &t) const
virtual void	TransformLimits (G4double &xMin, G4double &xMax, G4double &yMin, G4double &yMax, G4double &zMin, G4double &zMax, G4double &tMin, G4double &tMax) const
Public Member Functions inherited from BDSArrayOperatorIndex
	BDSArrayOperatorIndex (const G4String &nameIn="None")
virtual std::array< G4bool, 4 >	OperatesOnXYZT () const
	Return which axes this object operates on overall.
void	Apply (G4int &x) const
void	Apply (G4int &x, G4int &y) const
void	Apply (G4int &x, G4int &y, G4int &z) const
void	TransformLimits (G4double &xMin, G4double xMax) const
void	TransformLimits (G4double &xMin, G4double &xMax, G4double &yMin, G4double &yMax) const
void	TransformLimits (G4double &xMin, G4double &xMax, G4double &yMin, G4double &yMax, G4double &zMin, G4double &zMax) const

Data Fields
std::vector< BDSArrayOperatorIndex * >	operators

Additional Inherited Members
Protected Attributes inherited from BDSArrayOperatorIndex
G4String	name
std::array< G4bool, 4 >	operatesOn

Detailed Description

Vectorised version of BDSArrayOperatorIndex.

Author

Laurie Nevay

Definition at line 34 of file BDSArrayOperatorIndexV.hh.

Constructor & Destructor Documentation

BDSArrayOperatorIndexV()

BDSArrayOperatorIndexV::BDSArrayOperatorIndexV ( )

inline

Definition at line 37 of file BDSArrayOperatorIndexV.hh.

~BDSArrayOperatorIndexV()

virtual BDSArrayOperatorIndexV::~BDSArrayOperatorIndexV ( )

inlinevirtual

Definition at line 39 of file BDSArrayOperatorIndexV.hh.

Member Function Documentation

Apply()

virtual void BDSArrayOperatorIndexV::Apply ( G4int &  x, G4int &  y, G4int &  z, G4int &  t  ) const

inlinevirtual

Operation to modify the coordinates by reference. As we typically have more than one return value, we therefore use references as a way of doing this.

Reimplemented from BDSArrayOperatorIndex.

Definition at line 67 of file BDSArrayOperatorIndexV.hh.

ApplyT()

virtual void BDSArrayOperatorIndexV::ApplyT ( G4int &  t ) const

inlinevirtual

Reimplemented from BDSArrayOperatorIndex.

Definition at line 90 of file BDSArrayOperatorIndexV.hh.

ApplyX()

virtual void BDSArrayOperatorIndexV::ApplyX ( G4int &  x ) const

inlinevirtual

Reimplemented from BDSArrayOperatorIndex.

Definition at line 75 of file BDSArrayOperatorIndexV.hh.

ApplyY()

virtual void BDSArrayOperatorIndexV::ApplyY ( G4int &  y ) const

inlinevirtual

Reimplemented from BDSArrayOperatorIndex.

Definition at line 80 of file BDSArrayOperatorIndexV.hh.

ApplyZ()

virtual void BDSArrayOperatorIndexV::ApplyZ ( G4int &  z ) const

inlinevirtual

Reimplemented from BDSArrayOperatorIndex.

Definition at line 85 of file BDSArrayOperatorIndexV.hh.

Name()

virtual G4String BDSArrayOperatorIndexV::Name ( ) const

inlinevirtual

Supply a name of this operator for feedback to the user in print out.

Reimplemented from BDSArrayOperatorIndex.

Definition at line 56 of file BDSArrayOperatorIndexV.hh.

push_back()

void BDSArrayOperatorIndexV::push_back ( BDSArrayOperatorIndex *  operatorIn )

inline

Append an operator to the vector.

Definition at line 46 of file BDSArrayOperatorIndexV.hh.

References BDSArrayOperatorIndex::OperatesOnXYZT().

Here is the call graph for this function:

TransformLimits()

virtual void BDSArrayOperatorIndexV::TransformLimits ( G4double &  xMin, G4double &  xMax, G4double &  yMin, G4double &  yMax, G4double &  zMin, G4double &  zMax, G4double &  tMin, G4double &  tMax  ) const

inlinevirtual

Implements BDSArrayOperatorIndex.

Definition at line 96 of file BDSArrayOperatorIndexV.hh.

Field Documentation

operators

std::vector<BDSArrayOperatorIndex*> BDSArrayOperatorIndexV::operators

Definition at line 105 of file BDSArrayOperatorIndexV.hh.

---

The documentation for this class was generated from the following file:

• /__w/bdsim/bdsim/include/BDSArrayOperatorIndexV.hh
