1D array for completeness in array system. More...

#include <BDSArrayOperatorIndexReflect.hh>

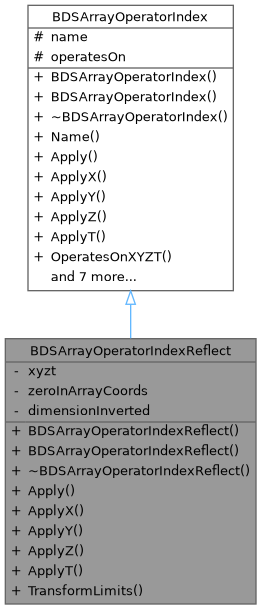

Inheritance diagram for BDSArrayOperatorIndexReflect:

Collaboration diagram for BDSArrayOperatorIndexReflect:

Public Member Functions
	BDSArrayOperatorIndexReflect (const std::array< G4bool, 4 > &xyztIn, const BDSArrayInfo &arrayInfo)

virtual void	Apply (G4int &x, G4int &y, G4int &z, G4int &t) const

virtual void	ApplyX (G4int &x) const

virtual void	ApplyY (G4int &y) const

virtual void	ApplyZ (G4int &z) const

virtual void	ApplyT (G4int &t) const

virtual void	TransformLimits (G4double &xMin, G4double &xMax, G4double &yMin, G4double &yMax, G4double &zMin, G4double &zMax, G4double &tMin, G4double &tMax) const

Public Member Functions inherited from BDSArrayOperatorIndex
	BDSArrayOperatorIndex (const G4String &nameIn="None")

virtual G4String	Name () const
	Supply a name of this operator for feedback to the user in print out.

virtual std::array< G4bool, 4 >	OperatesOnXYZT () const
	Return which axes this object operates on overall.

void	Apply (G4int &x) const

void	Apply (G4int &x, G4int &y) const

void	Apply (G4int &x, G4int &y, G4int &z) const

void	TransformLimits (G4double &xMin, G4double xMax) const

void	TransformLimits (G4double &xMin, G4double &xMax, G4double &yMin, G4double &yMax) const

void	TransformLimits (G4double &xMin, G4double &xMax, G4double &yMin, G4double &yMax, G4double &zMin, G4double &zMax) const

Private Attributes
std::array< G4bool, 4 >	xyzt

std::array< G4int, 4 >	zeroInArrayCoords

std::array< G4bool, 4 >	dimensionInverted

Additional Inherited Members
Protected Attributes inherited from BDSArrayOperatorIndex
G4String	name

std::array< G4bool, 4 >	operatesOn

Detailed Description

1D array for completeness in array system.

Author: Laurie Nevay

Definition at line 39 of file BDSArrayOperatorIndexReflect.hh.

Constructor & Destructor Documentation

◆ BDSArrayOperatorIndexReflect() [1/2]

BDSArrayOperatorIndexReflect::BDSArrayOperatorIndexReflect ( )

inline

Definition at line 42 of file BDSArrayOperatorIndexReflect.hh.

◆ BDSArrayOperatorIndexReflect() [2/2]

BDSArrayOperatorIndexReflect::BDSArrayOperatorIndexReflect	(	const std::array< G4bool, 4 > &	xyztIn,
		const BDSArrayInfo &	arrayInfo
	)

inlineexplicit

Definition at line 48 of file BDSArrayOperatorIndexReflect.hh.

◆ ~BDSArrayOperatorIndexReflect()

virtual BDSArrayOperatorIndexReflect::~BDSArrayOperatorIndexReflect ( )

inlinevirtual

Definition at line 69 of file BDSArrayOperatorIndexReflect.hh.

Member Function Documentation

◆ Apply()

virtual void BDSArrayOperatorIndexReflect::Apply	(	G4int &	,
		G4int &	,
		G4int &	,
		G4int &
	)		const

inlinevirtual

Operation to modify the coordinates by reference. As we typically have more than one return value, we therefore use references as a way of doing this.

Reimplemented from BDSArrayOperatorIndex.

Definition at line 71 of file BDSArrayOperatorIndexReflect.hh.

◆ ApplyT()

virtual void BDSArrayOperatorIndexReflect::ApplyT ( G4int & t ) const

inlinevirtual

Reimplemented from BDSArrayOperatorIndex.

Definition at line 90 of file BDSArrayOperatorIndexReflect.hh.

◆ ApplyX()

virtual void BDSArrayOperatorIndexReflect::ApplyX ( G4int & x ) const

inlinevirtual

Reimplemented from BDSArrayOperatorIndex.

Definition at line 87 of file BDSArrayOperatorIndexReflect.hh.

◆ ApplyY()

virtual void BDSArrayOperatorIndexReflect::ApplyY ( G4int & y ) const

inlinevirtual

Reimplemented from BDSArrayOperatorIndex.

Definition at line 88 of file BDSArrayOperatorIndexReflect.hh.

◆ ApplyZ()

virtual void BDSArrayOperatorIndexReflect::ApplyZ ( G4int & z ) const

inlinevirtual

Reimplemented from BDSArrayOperatorIndex.

Definition at line 89 of file BDSArrayOperatorIndexReflect.hh.

◆ TransformLimits()

virtual void BDSArrayOperatorIndexReflect::TransformLimits	(	G4double &	xMin,
		G4double &	xMax,
		G4double &	yMin,
		G4double &	yMax,
		G4double &	zMin,
		G4double &	zMax,
		G4double &	tMin,
		G4double &	tMax
	)		const
