BDSArrayOperatorIndexFlip Class Reference

1D array for completeness in array system. More...

#include <BDSArrayOperatorIndexFlip.hh>

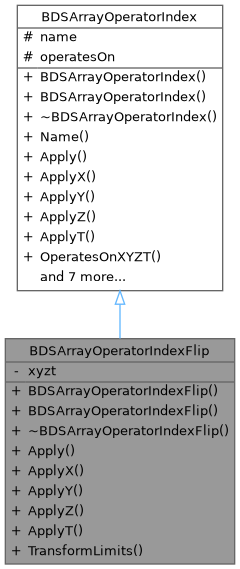

Inheritance diagram for BDSArrayOperatorIndexFlip:

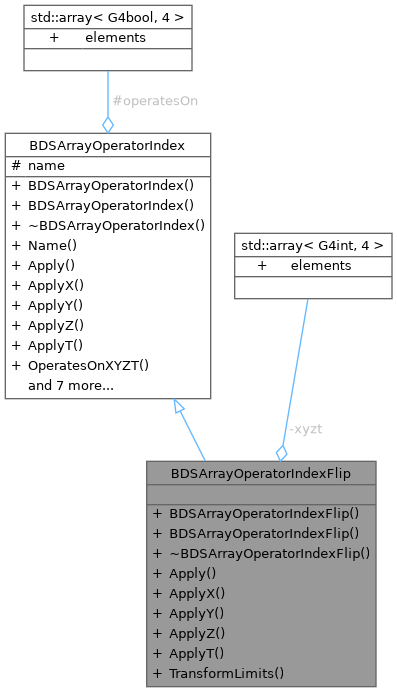

Collaboration diagram for BDSArrayOperatorIndexFlip:

Public Member Functions
	BDSArrayOperatorIndexFlip (const std::array< G4bool, 4 > &xyztIn)
virtual void	Apply (G4int &x, G4int &y, G4int &z, G4int &t) const
virtual void	ApplyX (G4int &x) const
virtual void	ApplyY (G4int &y) const
virtual void	ApplyZ (G4int &z) const
virtual void	ApplyT (G4int &t) const
virtual void	TransformLimits (G4double &xMin, G4double &xMax, G4double &yMin, G4double &yMax, G4double &zMin, G4double &zMax, G4double &tMin, G4double &tMax) const
Public Member Functions inherited from BDSArrayOperatorIndex
	BDSArrayOperatorIndex (const G4String &nameIn="None")
virtual G4String	Name () const
	Supply a name of this operator for feedback to the user in print out.
virtual std::array< G4bool, 4 >	OperatesOnXYZT () const
	Return which axes this object operates on overall.
void	Apply (G4int &x) const
void	Apply (G4int &x, G4int &y) const
void	Apply (G4int &x, G4int &y, G4int &z) const
void	TransformLimits (G4double &xMin, G4double xMax) const
void	TransformLimits (G4double &xMin, G4double &xMax, G4double &yMin, G4double &yMax) const
void	TransformLimits (G4double &xMin, G4double &xMax, G4double &yMin, G4double &yMax, G4double &zMin, G4double &zMax) const

Private Attributes
std::array< G4int, 4 >	xyzt

Additional Inherited Members
Protected Attributes inherited from BDSArrayOperatorIndex
G4String	name
std::array< G4bool, 4 >	operatesOn

Detailed Description

1D array for completeness in array system.

Author

Laurie Nevay

Definition at line 35 of file BDSArrayOperatorIndexFlip.hh.

Constructor & Destructor Documentation

BDSArrayOperatorIndexFlip() [1/2]

BDSArrayOperatorIndexFlip::BDSArrayOperatorIndexFlip ( )

inline

Definition at line 38 of file BDSArrayOperatorIndexFlip.hh.

BDSArrayOperatorIndexFlip() [2/2]

BDSArrayOperatorIndexFlip::BDSArrayOperatorIndexFlip ( const std::array< G4bool, 4 > &  xyztIn )

inlineexplicit

Definition at line 42 of file BDSArrayOperatorIndexFlip.hh.

~BDSArrayOperatorIndexFlip()

virtual BDSArrayOperatorIndexFlip::~BDSArrayOperatorIndexFlip ( )

inlinevirtual

Definition at line 56 of file BDSArrayOperatorIndexFlip.hh.

Member Function Documentation

Apply()

virtual void BDSArrayOperatorIndexFlip::Apply ( G4int &  , G4int &  , G4int &  , G4int &    ) const

inlinevirtual

Operation to modify the coordinates by reference. As we typically have more than one return value, we therefore use references as a way of doing this.

Reimplemented from BDSArrayOperatorIndex.

Definition at line 58 of file BDSArrayOperatorIndexFlip.hh.

ApplyT()

virtual void BDSArrayOperatorIndexFlip::ApplyT ( G4int &  t ) const

inlinevirtual

Reimplemented from BDSArrayOperatorIndex.

Definition at line 71 of file BDSArrayOperatorIndexFlip.hh.

ApplyX()

virtual void BDSArrayOperatorIndexFlip::ApplyX ( G4int &  x ) const

inlinevirtual

Reimplemented from BDSArrayOperatorIndex.

Definition at line 68 of file BDSArrayOperatorIndexFlip.hh.

ApplyY()

virtual void BDSArrayOperatorIndexFlip::ApplyY ( G4int &  y ) const

inlinevirtual

Reimplemented from BDSArrayOperatorIndex.

Definition at line 69 of file BDSArrayOperatorIndexFlip.hh.

ApplyZ()

virtual void BDSArrayOperatorIndexFlip::ApplyZ ( G4int &  z ) const

inlinevirtual

Reimplemented from BDSArrayOperatorIndex.

Definition at line 70 of file BDSArrayOperatorIndexFlip.hh.

TransformLimits()

virtual void BDSArrayOperatorIndexFlip::TransformLimits ( G4double &  xMin, G4double &  xMax, G4double &  yMin, G4double &  yMax, G4double &  zMin, G4double &  zMax, G4double &  tMin, G4double &  tMax  ) const

inlinevirtual

Implements BDSArrayOperatorIndex.

Definition at line 73 of file BDSArrayOperatorIndexFlip.hh.

Field Documentation

xyzt

std::array<G4int,4> BDSArrayOperatorIndexFlip::xyzt

private

Definition at line 89 of file BDSArrayOperatorIndexFlip.hh.

---

The documentation for this class was generated from the following file:

• /__w/bdsim/bdsim/include/BDSArrayOperatorIndexFlip.hh
