#include <BDSArray2D.hh>

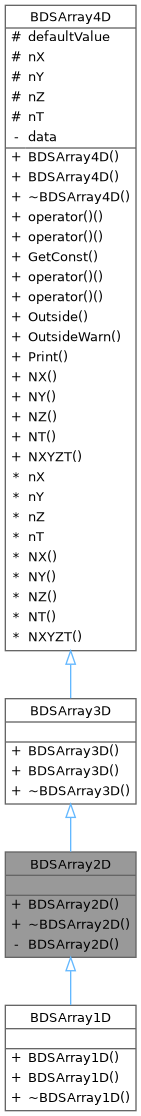

Inheritance diagram for BDSArray2D:

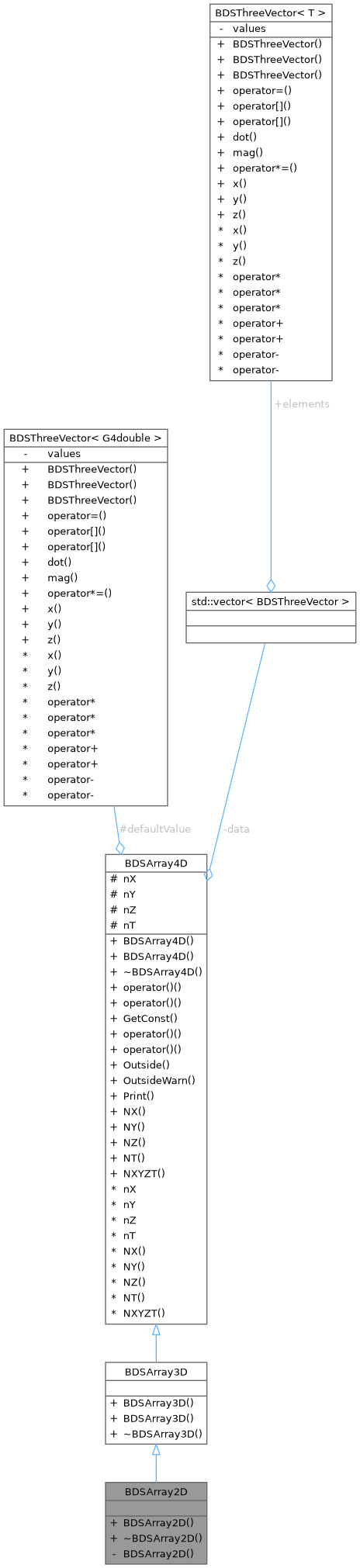

Collaboration diagram for BDSArray2D:

Public Member Functions
	BDSArray2D (G4int nXIn, G4int nYIn)

Public Member Functions inherited from BDSArray3D
	BDSArray3D ()=delete

	BDSArray3D (G4int nX, G4int nY, G4int nZ)

Public Member Functions inherited from BDSArray4D
	BDSArray4D ()=delete

	BDSArray4D (G4int nXIn, G4int nYIn, G4int nZIn, G4int nTIn)

virtual BDSFieldValue &	operator() (G4int x, G4int y=0, G4int z=0, G4int t=0)
	Setter & (technically, a non-const) accessor.

const BDSFieldValue &	operator() (BDSFourVector< G4int > &pos)
	Convenience accessor to operator().

virtual const BDSFieldValue &	GetConst (G4int x, G4int y=0, G4int z=0, G4int t=0) const

virtual const BDSFieldValue &	operator() (G4int x, G4int y=0, G4int z=0, G4int t=0) const
	Convenience shortcut to GetConst().

const BDSFieldValue &	operator() (const BDSFourVector< G4int > &pos) const
	Convenience accessor to operator().

virtual G4bool	Outside (G4int x, G4int y, G4int z, G4int t) const
	Return whether the indices are valid and lie within the array boundaries or not.

virtual void	OutsideWarn (G4int x, G4int y, G4int z, G4int t) const
	Use Outside() but warn and exit if the coordinates requested are outside the array.

virtual std::ostream &	Print (std::ostream &out) const

G4int	NX () const
	Access the number of elements in a given dimension.

G4int	NY () const
	Access the number of elements in a given dimension.

G4int	NZ () const
	Access the number of elements in a given dimension.

G4int	NT () const
	Access the number of elements in a given dimension.

BDSFourVector< G4int >	NXYZT () const
	Access the number of elements in a given dimension.

Private Member Functions
	BDSArray2D ()=delete

Friends
std::ostream &	operator<< (std::ostream &out, BDSArray2D const &a)
	Output stream.

Additional Inherited Members
Protected Attributes inherited from BDSArray4D
BDSFieldValue	defaultValue
	Need to store a default value so it can be return by reference.

const G4int	nX
	Dimension.

const G4int	nY
	Dimension.

const G4int	nZ
	Dimension.

const G4int	nT
	Dimension.

Detailed Description

2D array.

Inherits (ie is a type of) BDSArray3D and in turn BDSArray4D.

Author: Laurie Nevay

Definition at line 36 of file BDSArray2D.hh.

Constructor & Destructor Documentation

◆ BDSArray2D() [1/2]

BDSArray2D::BDSArray2D	(	G4int	nXIn,
		G4int	nYIn
	)

Definition at line 25 of file BDSArray2D.cc.

◆ ~BDSArray2D()

virtual BDSArray2D::~BDSArray2D ( )

inlinevirtual

Definition at line 40 of file BDSArray2D.hh.

◆ BDSArray2D() [2/2]

BDSArray2D::BDSArray2D ( )

privatedelete

No default constructor as the array is not adjustable after construction and therefore the size must be known at construction time.

Friends And Related Symbol Documentation

◆ operator<<

std::ostream & operator<<	(	std::ostream &	out,
		BDSArray2D const &	a
	)

friend

Output stream.

Definition at line 29 of file BDSArray2D.cc.

The documentation for this class was generated from the following files:

/__w/bdsim/bdsim/include/BDSArray2D.hh
/__w/bdsim/bdsim/src/BDSArray2D.cc
