BDSAperturePointsCache Class Reference

A holder for loaded aperture points files. More...

#include <BDSAperturePointsLoader.hh>

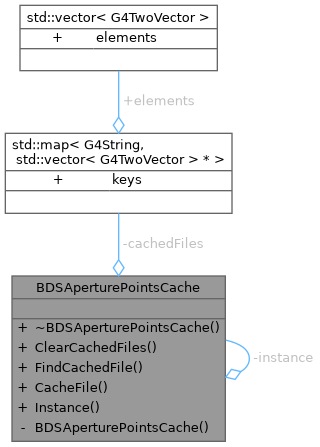

Collaboration diagram for BDSAperturePointsCache:

Public Member Functions
void	ClearCachedFiles ()
	Delete all cached points from memory and clear the map of files loaded.
std::vector< G4TwoVector > *	FindCachedFile (const G4String &fileNameAndUnits) const
	Retrieve a cached files. Will return nullptr if not found.
void	CacheFile (const G4String &fileNameAndUnits, std::vector< G4TwoVector > *contents)
	Add an entry to the cache.

Static Public Member Functions
static BDSAperturePointsCache *	Instance ()
	Access the singleton instance.

Private Attributes
std::map< G4String, std::vector< G4TwoVector > * >	cachedFiles

Static Private Attributes
static BDSAperturePointsCache *	instance = nullptr

Detailed Description

A holder for loaded aperture points files.

This is a separate class from the loader as the loader is templated and this would result in a different cache for each format loaded.

Singleton.

Author

Laurie Nevay

Definition at line 67 of file BDSAperturePointsLoader.hh.

Constructor & Destructor Documentation

~BDSAperturePointsCache()

BDSAperturePointsCache::~BDSAperturePointsCache

(

)

Definition at line 190 of file BDSAperturePointsLoader.cc.

Member Function Documentation

CacheFile()

void BDSAperturePointsCache::CacheFile	(	const G4String &	fileNameAndUnits,
		std::vector< G4TwoVector > *	contents
	)

Add an entry to the cache.

Definition at line 212 of file BDSAperturePointsLoader.cc.

Referenced by BDS::LoadAperturePoints().

Here is the caller graph for this function:

ClearCachedFiles()

void BDSAperturePointsCache::ClearCachedFiles

(

)

Delete all cached points from memory and clear the map of files loaded.

Definition at line 195 of file BDSAperturePointsLoader.cc.

Referenced by BDSIM::~BDSIM(), and BDSIMLink::~BDSIMLink().

Here is the caller graph for this function:

FindCachedFile()

std::vector< G4TwoVector > * BDSAperturePointsCache::FindCachedFile

(

const G4String &

fileNameAndUnits

)

const

Retrieve a cached files. Will return nullptr if not found.

Definition at line 202 of file BDSAperturePointsLoader.cc.

Referenced by BDS::LoadAperturePoints().

Here is the caller graph for this function:

Instance()

BDSAperturePointsCache * BDSAperturePointsCache::Instance ( )

static

Access the singleton instance.

Definition at line 183 of file BDSAperturePointsLoader.cc.

Referenced by BDS::LoadAperturePoints(), BDSIM::~BDSIM(), and BDSIMLink::~BDSIMLink().

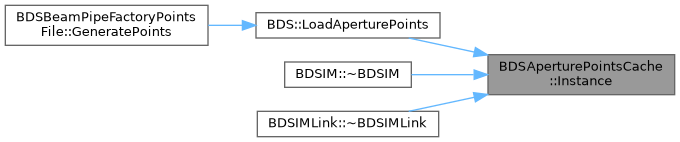

Here is the caller graph for this function:

Field Documentation

cachedFiles

std::map<G4String, std::vector<G4TwoVector>*> BDSAperturePointsCache::cachedFiles

private

Definition at line 90 of file BDSAperturePointsLoader.hh.

instance

BDSAperturePointsCache * BDSAperturePointsCache::instance = nullptr

staticprivate

Definition at line 88 of file BDSAperturePointsLoader.hh.

---

The documentation for this class was generated from the following files:

• /__w/bdsim/bdsim/include/BDSAperturePointsLoader.hh
• /__w/bdsim/bdsim/src/BDSAperturePointsLoader.cc
