BDSAcceleratorModel Class Reference

A holder class for all representations of the accelerator model created in BDSIM. More...

#include <BDSAcceleratorModel.hh>

Collaboration diagram for BDSAcceleratorModel:

Public Member Functions
G4VPhysicalVolume *	WorldPV () const
	Access the physical volume of the world.
G4LogicalVolume *	WorldLV () const
	Access the logical volume of the world.
void	RegisterBeamlineSetMain (const BDSBeamlineSet &setIn)
	Register the main beam line set.
void	RegisterBeamlineSetExtra (const G4String &name, const BDSBeamlineSet &setIn)
	Register a set of beam lines to be managed and cleared up at the end of the simulation.
void	RegisterParallelWorld (G4VUserParallelWorld *world)
void	RegisterPlacementBeamline (BDSBeamline *placementBLIn)
	Register the beam line of arbitrary placements.
BDSBeamline *	PlacementBeamline () const
	Access the beam line of arbitrary placements.
void	RegisterPlacementFieldPlacements (const std::vector< BDSPlacementToMake > &pIn)
	Register complete placements to make for field volumes in parallel world.
const std::vector< BDSPlacementToMake > &	PlacementFieldPWPlacements () const
	Access field volumes for parallel world.
void	RegisterBLMs (BDSBeamline *blmsIn)
	Register a beam line of blm placements.
BDSBeamline *	BLMsBeamline () const
	Access the beam line of blm placements.
void	RegisterTunnelBeamline (BDSBeamline *beamlineIn)
	Register the beam line containing all the tunnel segments.
BDSBeamline *	TunnelBeamline () const
	Access the beam line containing all the tunnel segments.
void	RegisterFields (std::vector< BDSFieldObjects * > &fieldsIn)
	Register all field objects.
void	RegisterRegion (BDSRegion *region)
	Register a region.
void	RegisterAperture (const G4String &name, BDSApertureInfo *apertureIn)
	Register a single aperture.
void	RegisterApertures (const std::map< G4String, BDSApertureInfo * > &aperturesIn)
	Register a map of apertures with associated names.
BDSApertureInfo *	Aperture (G4String name) const
G4Region *	Region (const G4String &name) const
	Access region information. Will exit if not found.
std::set< G4LogicalVolume * > *	VolumeSet (const G4String &name)
	Returns pointer to a set of logical volumes. If no set by that name exits, create it.
G4bool	VolumeInSet (G4LogicalVolume *volume, const G4String &registryName)
BDSBeamline *	CorrespondingMassWorldBeamline (BDSBeamline *bl) const
G4bool	BeamlineIsMassWorld (BDSBeamline *bl) const
void	MassWorldBeamlineAndIndex (BDSBeamline *&bl, G4int &index) const
void	RegisterScorerHistogramDefinition (const BDSScorerHistogramDef &def)
void	RegisterScorerPlacement (const G4String &meshName, const G4Transform3D &placement)
	Register a copy of the scorer placement so it can be used in the output.
void	RegisterLinkComponent (BDSLinkComponent *linkComponentIn)
const std::set< BDSLinkComponent * > &	LinkComponents () const
void	RegisterWorldPV (G4VPhysicalVolume *worldIn)
	Register constituent of world.
void	RegisterWorldLV (G4LogicalVolume *worldIn)
	Register constituent of world.
void	RegisterWorldSolid (G4VSolid *worldIn)
	Register constituent of world.
const BDSBeamlineSet &	BeamlineSetMain () const
	Accessor.
const BDSBeamlineSet &	BeamlineSet (const G4String &name) const
	Accessor.
const std::map< G4String, BDSBeamlineSet > &	ExtraBeamlines () const
	Accessor.
const BDSBeamline *	BeamlineMain () const
	Accessor.
const std::vector< BDSScorerHistogramDef > &	ScorerHistogramDefinitions () const
	Access all scorer histogram definitions.
const std::map< G4String, BDSScorerHistogramDef > &	ScorerHistogramDefinitionsMap () const
	Access all scorer histogram definitions.
const BDSScorerHistogramDef *	ScorerHistogramDef (const G4String &name)
	Access all scorer histogram definitions.
const std::map< G4String, G4Transform3D > &	ScorerMeshPlacementsMap () const
	Access all scorer histogram definitions.

Static Public Member Functions
static BDSAcceleratorModel *	Instance ()

Private Member Functions
	BDSAcceleratorModel ()
	Default constructor is private as singleton.
void	MapBeamlineSet (const BDSBeamlineSet &setIn)
	Utility function to apply mapping.

Private Attributes
G4VPhysicalVolume *	worldPV
	Physical volume of the mass world.
G4LogicalVolume *	worldLV
G4VSolid *	worldSolid
BDSBeamlineSet	mainBeamlineSet
std::map< G4String, BDSBeamlineSet >	extraBeamlines
	Extra beamlines.
std::set< G4VUserParallelWorld * >	parallelWorlds
	Parallel worlds not use with beam lines.
std::map< BDSBeamline *, BDSBeamline * >	clToMassWorldMap
	Mapping from any curvilinear beam line to the corresponding mass world beam line.
std::map< BDSBeamline *, G4bool >	massWorldMapTF
BDSBeamline *	tunnelBeamline
	Tunnel segments beam line.
BDSBeamline *	placementBeamline
	Placement beam line.
BDSBeamline *	blmsBeamline
	BLMs beam line.
std::vector< BDSFieldObjects * >	fields
	All field objects.
std::map< G4String, BDSRegion * >	regions
std::set< BDSRegion * >	regionStorage
	Unique storage of regions.
std::map< G4String, BDSApertureInfo * >	apertures
	All apertures.
std::vector< BDSPlacementToMake >	placementFieldPlacements
std::map< G4String, std::set< G4LogicalVolume * > * >	volumeRegistries
	All volume registries.
std::map< G4String, G4Transform3D >	scorerMeshPlacements
std::set< BDSLinkComponent * >	linkComponents
std::vector< BDSScorerHistogramDef >	scorerHistogramDefs
	Scorer histogram definitions cached from construction here to be used in output creation.
std::map< G4String, BDSScorerHistogramDef >	scorerHistogramDefsMap
	Scorer histogram definitions cached from construction here to be used in output creation.

Static Private Attributes
static BDSAcceleratorModel *	instance = nullptr

Detailed Description

A holder class for all representations of the accelerator model created in BDSIM.

This can be extended to allow inspection of the model. Holds the readout geometry physical world in a location independent of detector construction.

In future, there may be several more beamlines than just a flat one, and perhaps grouped into a more hierarchical version. These can be contained here and this class can be extended as required.

Author

Laurie Nevay

Definition at line 60 of file BDSAcceleratorModel.hh.

Constructor & Destructor Documentation

~BDSAcceleratorModel()

BDSAcceleratorModel::~BDSAcceleratorModel

(

)

Definition at line 67 of file BDSAcceleratorModel.cc.

BDSAcceleratorModel()

BDSAcceleratorModel::BDSAcceleratorModel ( )

private

Default constructor is private as singleton.

Definition at line 55 of file BDSAcceleratorModel.cc.

References BDSAcceleratorComponentRegistry::Instance(), and BDSPhysicalVolumeInfoRegistry::Instance().

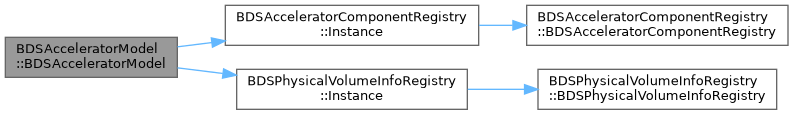

Here is the call graph for this function:

Member Function Documentation

Aperture()

BDSApertureInfo * BDSAcceleratorModel::Aperture

(

G4String

name

)

const

Access an aperture definition. Will exit if not found. Note, we use pointers as we purposively don't provide a default constructor for BDSApertureInfo.

Definition at line 148 of file BDSAcceleratorModel.cc.

References apertures.

Referenced by BDSParallelWorldSampler::BuildSampler(), and BDSDetectorConstruction::CalculateExtentOfSamplerPlacement().

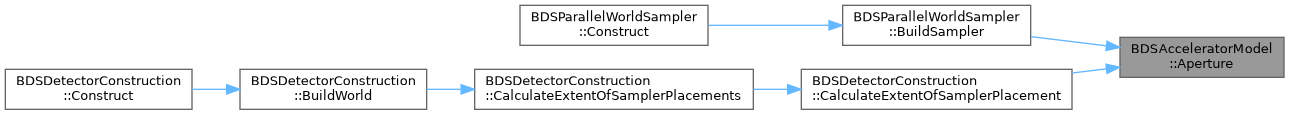

Here is the caller graph for this function:

BeamlineIsMassWorld()

G4bool BDSAcceleratorModel::BeamlineIsMassWorld

(

BDSBeamline *

bl

)

const

Return whether a beam line is a mass world beam line. If in the unlikely event the beam line isn't registered, false is returned by default.

Definition at line 213 of file BDSAcceleratorModel.cc.

References BDS::MapGetWithDefault(), and massWorldMapTF.

Referenced by MassWorldBeamlineAndIndex().

Here is the call graph for this function:

Here is the caller graph for this function:

BeamlineMain()

const BDSBeamline * BDSAcceleratorModel::BeamlineMain ( ) const

inline

Accessor.

Definition at line 86 of file BDSAcceleratorModel.hh.

Referenced by BDSBunch::ApplyCurvilinearTransform(), BDSDetectorConstruction::BuildTunnel(), BDSOutput::CalculateHistogramParameters(), BDSRunAction::CheckTrajectoryOptions(), BDSParallelWorldSampler::Construct(), BDSDetectorConstruction::ConstructScoringMeshes(), BDSOutput::CreateHistograms(), BDSOutputROOTEventModel::Fill(), BDSOutputStructures::PrepareCavityInformation(), and BDSOutputStructures::PrepareCollimatorInformation().

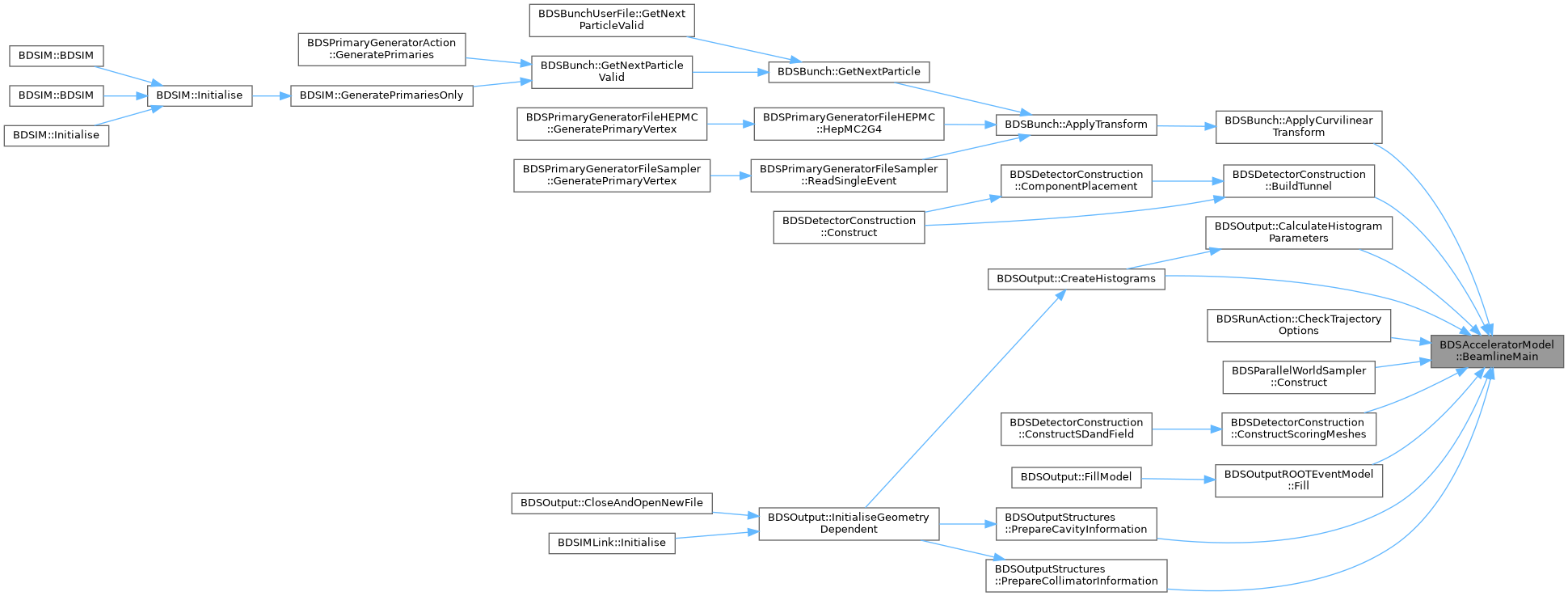

Here is the caller graph for this function:

BeamlineSet()

const BDSBeamlineSet & BDSAcceleratorModel::BeamlineSet

(

const G4String &

name

)

const

Accessor.

Definition at line 125 of file BDSAcceleratorModel.cc.

References extraBeamlines.

Referenced by BDSParallelWorldCurvilinear::Construct(), and BDSParallelWorldCurvilinearBridge::Construct().

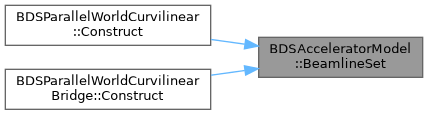

Here is the caller graph for this function:

BeamlineSetMain()

const BDSBeamlineSet & BDSAcceleratorModel::BeamlineSetMain ( ) const

inline

Accessor.

Definition at line 83 of file BDSAcceleratorModel.hh.

Referenced by BDSDetectorConstruction::BuildWorld(), BDSDetectorConstruction::ComponentPlacement(), and BDSDetectorConstruction::Construct().

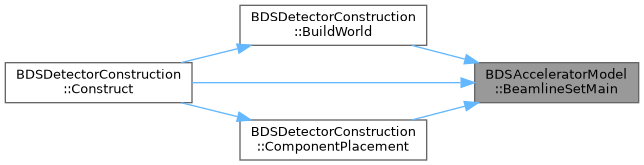

Here is the caller graph for this function:

BLMsBeamline()

BDSBeamline * BDSAcceleratorModel::BLMsBeamline ( ) const

inline

Access the beam line of blm placements.

Definition at line 107 of file BDSAcceleratorModel.hh.

References blmsBeamline.

CorrespondingMassWorldBeamline()

BDSBeamline * BDSAcceleratorModel::CorrespondingMassWorldBeamline

(

BDSBeamline *

bl

)

const

Find a corresponding mass world beam line for a curvilinear (or bridge) beam line from the registered beam line sets.

Definition at line 191 of file BDSAcceleratorModel.cc.

References clToMassWorldMap.

Referenced by BDSSDCollimator::ProcessHitsOrdered().

Here is the caller graph for this function:

ExtraBeamlines()

const std::map< G4String, BDSBeamlineSet > & BDSAcceleratorModel::ExtraBeamlines ( ) const

inline

Accessor.

Definition at line 85 of file BDSAcceleratorModel.hh.

References extraBeamlines.

Referenced by BDSDetectorConstruction::BuildWorld(), and BDSDetectorConstruction::ComponentPlacement().

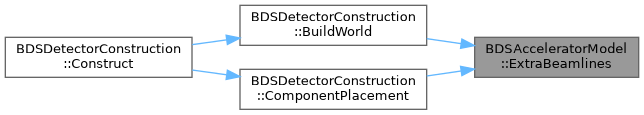

Here is the caller graph for this function:

Instance()

BDSAcceleratorModel * BDSAcceleratorModel::Instance ( )

static

Definition at line 48 of file BDSAcceleratorModel.cc.

LinkComponents()

const std::set< BDSLinkComponent * > & BDSAcceleratorModel::LinkComponents ( ) const

inline

Definition at line 172 of file BDSAcceleratorModel.hh.

MapBeamlineSet()

void BDSAcceleratorModel::MapBeamlineSet ( const BDSBeamlineSet &  setIn )

private

Utility function to apply mapping.

Definition at line 200 of file BDSAcceleratorModel.cc.

References clToMassWorldMap, and massWorldMapTF.

Referenced by RegisterBeamlineSetExtra(), and RegisterBeamlineSetMain().

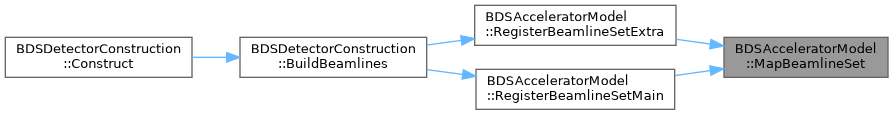

Here is the caller graph for this function:

MassWorldBeamlineAndIndex()

void BDSAcceleratorModel::MassWorldBeamlineAndIndex	(	BDSBeamline *&	bl,
		G4int &	index
	)		const

Update a beam line pointer and index if required for the equivalent ones in the mass world beam line. If the beam line supplied is a mass world one, nothing is done.

Definition at line 218 of file BDSAcceleratorModel.cc.

References BDSBeamline::at(), BeamlineIsMassWorld(), and clToMassWorldMap.

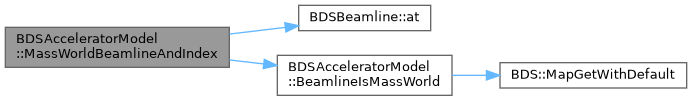

Here is the call graph for this function:

PlacementBeamline()

BDSBeamline * BDSAcceleratorModel::PlacementBeamline ( ) const

inline

Access the beam line of arbitrary placements.

Definition at line 95 of file BDSAcceleratorModel.hh.

References placementBeamline.

Referenced by BDSDetectorConstruction::BuildWorld().

Here is the caller graph for this function:

PlacementFieldPWPlacements()

const std::vector< BDSPlacementToMake > & BDSAcceleratorModel::PlacementFieldPWPlacements ( ) const

inline

Access field volumes for parallel world.

Definition at line 101 of file BDSAcceleratorModel.hh.

References placementFieldPlacements.

Referenced by BDSParallelWorldPlacementFields::Construct().

Here is the caller graph for this function:

Region()

G4Region * BDSAcceleratorModel::Region

(

const G4String &

name

)

const

Access region information. Will exit if not found.

Definition at line 157 of file BDSAcceleratorModel.cc.

Referenced by BDSDetectorConstruction::PlaceBeamlineInWorld().

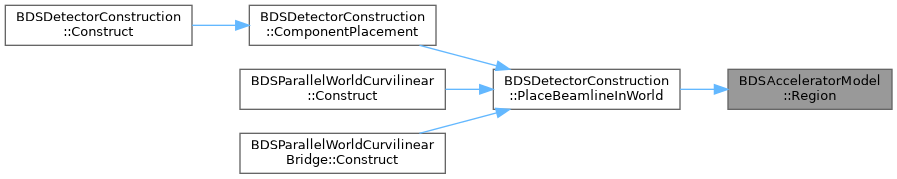

Here is the caller graph for this function:

RegisterAperture()

void BDSAcceleratorModel::RegisterAperture ( const G4String &  name, BDSApertureInfo *  apertureIn  )

inline

Register a single aperture.

Definition at line 122 of file BDSAcceleratorModel.hh.

References apertures.

RegisterApertures()

void BDSAcceleratorModel::RegisterApertures

(

const std::map< G4String, BDSApertureInfo * > &

aperturesIn

)

Register a map of apertures with associated names.

Definition at line 143 of file BDSAcceleratorModel.cc.

References apertures.

Referenced by BDSDetectorConstruction::InitialiseApertures().

Here is the caller graph for this function:

RegisterBeamlineSetExtra()

void BDSAcceleratorModel::RegisterBeamlineSetExtra	(	const G4String &	name,
		const BDSBeamlineSet &	setIn
	)

Register a set of beam lines to be managed and cleared up at the end of the simulation.

Definition at line 115 of file BDSAcceleratorModel.cc.

References extraBeamlines, and MapBeamlineSet().

Referenced by BDSDetectorConstruction::BuildBeamlines().

Here is the call graph for this function:

Here is the caller graph for this function:

RegisterBeamlineSetMain()

void BDSAcceleratorModel::RegisterBeamlineSetMain

(

const BDSBeamlineSet &

setIn

)

Register the main beam line set.

Definition at line 109 of file BDSAcceleratorModel.cc.

References MapBeamlineSet().

Referenced by BDSDetectorConstruction::BuildBeamlines().

Here is the call graph for this function:

Here is the caller graph for this function:

RegisterBLMs()

void BDSAcceleratorModel::RegisterBLMs ( BDSBeamline *  blmsIn )

inline

Register a beam line of blm placements.

Definition at line 104 of file BDSAcceleratorModel.hh.

References blmsBeamline.

Referenced by BDSDetectorConstruction::Construct().

Here is the caller graph for this function:

RegisterFields()

void BDSAcceleratorModel::RegisterFields ( std::vector< BDSFieldObjects * > &  fieldsIn )

inline

Register all field objects.

Definition at line 116 of file BDSAcceleratorModel.hh.

References fields.

Referenced by BDSDetectorConstruction::ConstructSDandField().

Here is the caller graph for this function:

RegisterLinkComponent()

void BDSAcceleratorModel::RegisterLinkComponent ( BDSLinkComponent *  linkComponentIn )

inline

Definition at line 171 of file BDSAcceleratorModel.hh.

RegisterParallelWorld()

void BDSAcceleratorModel::RegisterParallelWorld ( G4VUserParallelWorld *  world )

inline

Definition at line 89 of file BDSAcceleratorModel.hh.

RegisterPlacementBeamline()

void BDSAcceleratorModel::RegisterPlacementBeamline ( BDSBeamline *  placementBLIn )

inline

Register the beam line of arbitrary placements.

Definition at line 92 of file BDSAcceleratorModel.hh.

References placementBeamline.

Referenced by BDSDetectorConstruction::Construct().

Here is the caller graph for this function:

RegisterPlacementFieldPlacements()

void BDSAcceleratorModel::RegisterPlacementFieldPlacements ( const std::vector< BDSPlacementToMake > &  pIn )

inline

Register complete placements to make for field volumes in parallel world.

Definition at line 98 of file BDSAcceleratorModel.hh.

References placementFieldPlacements.

Referenced by BDS::BuildPlacementGeometry().

Here is the caller graph for this function:

RegisterRegion()

void BDSAcceleratorModel::RegisterRegion

(

BDSRegion *

region

)

Register a region.

Definition at line 137 of file BDSAcceleratorModel.cc.

References BDSRegion::name, and regionStorage.

Referenced by BDSDetectorConstruction::InitialiseRegions().

Here is the caller graph for this function:

RegisterScorerHistogramDefinition()

void BDSAcceleratorModel::RegisterScorerHistogramDefinition

(

const BDSScorerHistogramDef &

def

)

Register a scorer histogram definition so it can be used in the output. The definition is stored both in a vector and a map. Note, repeated entries will exist in the vector but be overwritten in the map.

Definition at line 233 of file BDSAcceleratorModel.cc.

References scorerHistogramDefs, scorerHistogramDefsMap, and BDSScorerHistogramDef::uniqueName.

Referenced by BDSDetectorConstruction::ConstructScoringMeshes().

Here is the caller graph for this function:

RegisterScorerPlacement()

void BDSAcceleratorModel::RegisterScorerPlacement	(	const G4String &	meshName,
		const G4Transform3D &	placement
	)

Register a copy of the scorer placement so it can be used in the output.

Definition at line 241 of file BDSAcceleratorModel.cc.

Referenced by BDSDetectorConstruction::ConstructScoringMeshes().

Here is the caller graph for this function:

RegisterTunnelBeamline()

void BDSAcceleratorModel::RegisterTunnelBeamline ( BDSBeamline *  beamlineIn )

inline

Register the beam line containing all the tunnel segments.

Definition at line 110 of file BDSAcceleratorModel.hh.

References tunnelBeamline.

Referenced by BDSDetectorConstruction::BuildTunnel().

Here is the caller graph for this function:

RegisterWorldLV()

void BDSAcceleratorModel::RegisterWorldLV ( G4LogicalVolume *  worldIn )

inline

Register constituent of world.

Definition at line 68 of file BDSAcceleratorModel.hh.

Referenced by BDSDetectorConstruction::BuildWorld().

Here is the caller graph for this function:

RegisterWorldPV()

void BDSAcceleratorModel::RegisterWorldPV ( G4VPhysicalVolume *  worldIn )

inline

Register constituent of world.

Definition at line 67 of file BDSAcceleratorModel.hh.

References worldPV.

Referenced by BDSDetectorConstruction::BuildWorld().

Here is the caller graph for this function:

RegisterWorldSolid()

void BDSAcceleratorModel::RegisterWorldSolid ( G4VSolid *  worldIn )

inline

Register constituent of world.

Definition at line 69 of file BDSAcceleratorModel.hh.

Referenced by BDSDetectorConstruction::BuildWorld().

Here is the caller graph for this function:

ScorerHistogramDef()

const BDSScorerHistogramDef * BDSAcceleratorModel::ScorerHistogramDef

(

const G4String &

name

)

Access all scorer histogram definitions.

Definition at line 247 of file BDSAcceleratorModel.cc.

References scorerHistogramDefsMap.

ScorerHistogramDefinitions()

const std::vector< BDSScorerHistogramDef > & BDSAcceleratorModel::ScorerHistogramDefinitions ( ) const

inline

Access all scorer histogram definitions.

Definition at line 165 of file BDSAcceleratorModel.hh.

References scorerHistogramDefs.

ScorerHistogramDefinitionsMap()

const std::map< G4String, BDSScorerHistogramDef > & BDSAcceleratorModel::ScorerHistogramDefinitionsMap ( ) const

inline

Access all scorer histogram definitions.

Definition at line 166 of file BDSAcceleratorModel.hh.

References scorerHistogramDefsMap.

Referenced by BDSOutput::CreateHistograms().

Here is the caller graph for this function:

ScorerMeshPlacementsMap()

const std::map< G4String, G4Transform3D > & BDSAcceleratorModel::ScorerMeshPlacementsMap ( ) const

inline

Access all scorer histogram definitions.

Definition at line 168 of file BDSAcceleratorModel.hh.

Referenced by BDSOutput::FillModel().

Here is the caller graph for this function:

TunnelBeamline()

BDSBeamline * BDSAcceleratorModel::TunnelBeamline ( ) const

inline

Access the beam line containing all the tunnel segments.

Definition at line 113 of file BDSAcceleratorModel.hh.

References tunnelBeamline.

Referenced by BDSDetectorConstruction::BuildWorld(), BDSDetectorConstruction::ComponentPlacement(), and BDSOutput::CreateHistograms().

Here is the caller graph for this function:

VolumeInSet()

G4bool BDSAcceleratorModel::VolumeInSet	(	G4LogicalVolume *	volume,
		const G4String &	registryName
	)

Check whether a volume is in a registry of volumes (a set). If no such registry exists then return false.

Definition at line 179 of file BDSAcceleratorModel.cc.

References volumeRegistries.

VolumeSet()

std::set< G4LogicalVolume * > * BDSAcceleratorModel::VolumeSet

(

const G4String &

name

)

Returns pointer to a set of logical volumes. If no set by that name exits, create it.

Definition at line 172 of file BDSAcceleratorModel.cc.

References volumeRegistries.

Referenced by BDSCollimator::Build(), BDSTipCollimator::Build(), BDSCollimatorJaw::Build(), BDSCollimatorTipJaw::Build(), BDSElement::BuildContainerLogicalVolume(), BDSDetectorConstruction::BuildPhysicsBias(), BDSCrystalFactory::CommonConstruction(), BDSLinkTrackingAction::PostUserTrackingAction(), BDSTrackingAction::PostUserTrackingAction(), and BDSCollimatorCrystal::RegisterCrystalLVs().

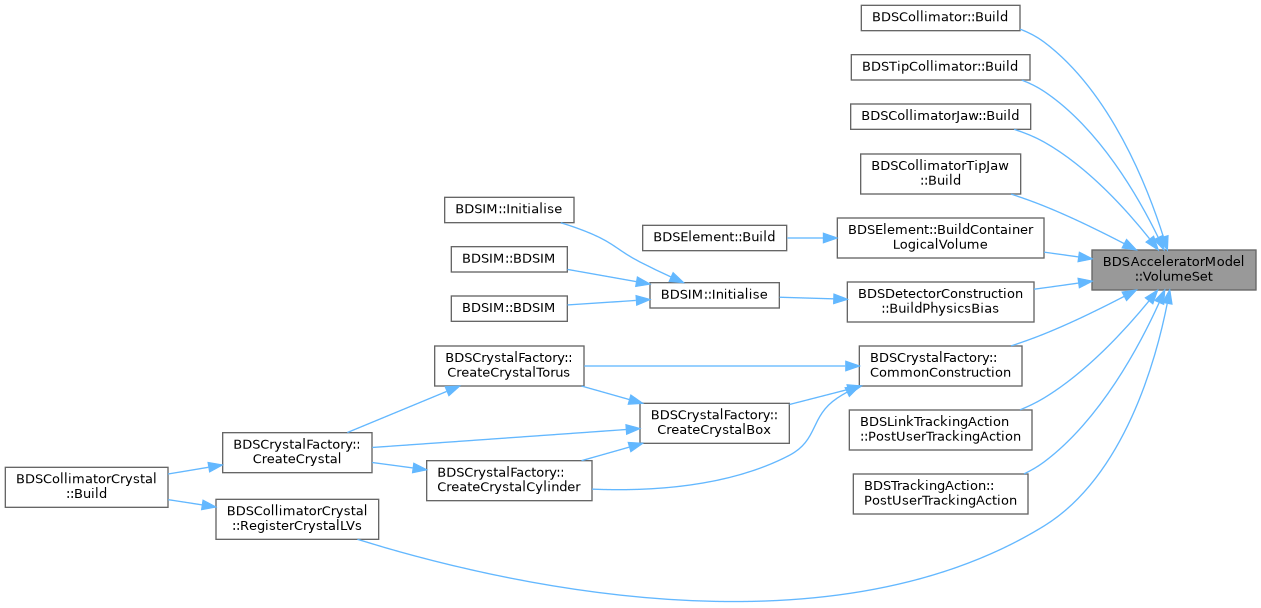

Here is the caller graph for this function:

WorldLV()

G4LogicalVolume * BDSAcceleratorModel::WorldLV ( ) const

inline

Access the logical volume of the world.

Definition at line 73 of file BDSAcceleratorModel.hh.

Referenced by BDSDetectorConstruction::ConstructScoringMeshes().

Here is the caller graph for this function:

WorldPV()

G4VPhysicalVolume * BDSAcceleratorModel::WorldPV ( ) const

inline

Access the physical volume of the world.

Definition at line 72 of file BDSAcceleratorModel.hh.

References worldPV.

Field Documentation

apertures

std::map<G4String, BDSApertureInfo*> BDSAcceleratorModel::apertures

private

All apertures.

Definition at line 205 of file BDSAcceleratorModel.hh.

Referenced by Aperture(), RegisterAperture(), and RegisterApertures().

blmsBeamline

BDSBeamline* BDSAcceleratorModel::blmsBeamline

private

BLMs beam line.

Definition at line 200 of file BDSAcceleratorModel.hh.

Referenced by BLMsBeamline(), and RegisterBLMs().

clToMassWorldMap

std::map<BDSBeamline*, BDSBeamline*> BDSAcceleratorModel::clToMassWorldMap

private

Mapping from any curvilinear beam line to the corresponding mass world beam line.

Definition at line 189 of file BDSAcceleratorModel.hh.

Referenced by CorrespondingMassWorldBeamline(), MapBeamlineSet(), and MassWorldBeamlineAndIndex().

extraBeamlines

std::map<G4String, BDSBeamlineSet> BDSAcceleratorModel::extraBeamlines

private

Extra beamlines.

Definition at line 184 of file BDSAcceleratorModel.hh.

Referenced by BeamlineSet(), ExtraBeamlines(), and RegisterBeamlineSetExtra().

fields

std::vector<BDSFieldObjects*> BDSAcceleratorModel::fields

private

All field objects.

Definition at line 202 of file BDSAcceleratorModel.hh.

Referenced by RegisterFields().

instance

BDSAcceleratorModel * BDSAcceleratorModel::instance = nullptr

staticprivate

Definition at line 177 of file BDSAcceleratorModel.hh.

linkComponents

std::set<BDSLinkComponent*> BDSAcceleratorModel::linkComponents

private

Definition at line 219 of file BDSAcceleratorModel.hh.

mainBeamlineSet

BDSBeamlineSet BDSAcceleratorModel::mainBeamlineSet

private

Definition at line 183 of file BDSAcceleratorModel.hh.

massWorldMapTF

std::map<BDSBeamline*, G4bool> BDSAcceleratorModel::massWorldMapTF

private

Map from beam line pointer to whether that beam line object is a mass world one, i.e. not a curvilinear or bridge one. 'TF' for true false.

Definition at line 193 of file BDSAcceleratorModel.hh.

Referenced by BeamlineIsMassWorld(), and MapBeamlineSet().

parallelWorlds

std::set<G4VUserParallelWorld*> BDSAcceleratorModel::parallelWorlds

private

Parallel worlds not use with beam lines.

Definition at line 186 of file BDSAcceleratorModel.hh.

placementBeamline

BDSBeamline* BDSAcceleratorModel::placementBeamline

private

Placement beam line.

Definition at line 199 of file BDSAcceleratorModel.hh.

Referenced by PlacementBeamline(), and RegisterPlacementBeamline().

placementFieldPlacements

std::vector<BDSPlacementToMake> BDSAcceleratorModel::placementFieldPlacements

private

Placements for parallel world field volumes for geometry placements (the placement beam line). These contain lvs and transforms to place in a parallel world when it's built for the coordinate look ups.

Definition at line 209 of file BDSAcceleratorModel.hh.

Referenced by PlacementFieldPWPlacements(), and RegisterPlacementFieldPlacements().

regions

std::map<G4String, BDSRegion*> BDSAcceleratorModel::regions

private

Definition at line 203 of file BDSAcceleratorModel.hh.

regionStorage

std::set<BDSRegion*> BDSAcceleratorModel::regionStorage

private

Unique storage of regions.

Definition at line 204 of file BDSAcceleratorModel.hh.

Referenced by RegisterRegion().

scorerHistogramDefs

std::vector<BDSScorerHistogramDef> BDSAcceleratorModel::scorerHistogramDefs

private

Scorer histogram definitions cached from construction here to be used in output creation.

Definition at line 214 of file BDSAcceleratorModel.hh.

Referenced by RegisterScorerHistogramDefinition(), and ScorerHistogramDefinitions().

scorerHistogramDefsMap

std::map<G4String, BDSScorerHistogramDef> BDSAcceleratorModel::scorerHistogramDefsMap

private

Scorer histogram definitions cached from construction here to be used in output creation.

Definition at line 215 of file BDSAcceleratorModel.hh.

Referenced by RegisterScorerHistogramDefinition(), ScorerHistogramDef(), and ScorerHistogramDefinitionsMap().

scorerMeshPlacements

std::map<G4String, G4Transform3D> BDSAcceleratorModel::scorerMeshPlacements

private

Definition at line 217 of file BDSAcceleratorModel.hh.

tunnelBeamline

BDSBeamline* BDSAcceleratorModel::tunnelBeamline

private

Tunnel segments beam line.

Definition at line 198 of file BDSAcceleratorModel.hh.

Referenced by RegisterTunnelBeamline(), and TunnelBeamline().

volumeRegistries

std::map<G4String, std::set<G4LogicalVolume*>* > BDSAcceleratorModel::volumeRegistries

private

All volume registries.

Definition at line 211 of file BDSAcceleratorModel.hh.

Referenced by VolumeInSet(), and VolumeSet().

worldLV

G4LogicalVolume* BDSAcceleratorModel::worldLV

private

Definition at line 180 of file BDSAcceleratorModel.hh.

worldPV

G4VPhysicalVolume* BDSAcceleratorModel::worldPV

private

Physical volume of the mass world.

Definition at line 179 of file BDSAcceleratorModel.hh.

Referenced by RegisterWorldPV(), and WorldPV().

worldSolid

G4VSolid* BDSAcceleratorModel::worldSolid

private

Definition at line 181 of file BDSAcceleratorModel.hh.

---

The documentation for this class was generated from the following files:

• /__w/bdsim/bdsim/include/BDSAcceleratorModel.hh
• /__w/bdsim/bdsim/src/BDSAcceleratorModel.cc
