ACRegistryKey Class Reference

custom key class for pair of <name,rigidity>. More...

#include <BDSAcceleratorComponentRegistry.hh>

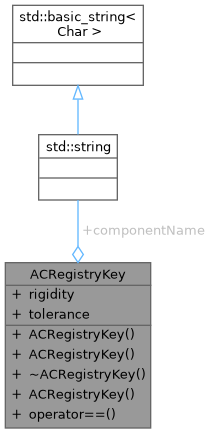

Collaboration diagram for ACRegistryKey:

Public Member Functions
	ACRegistryKey (const std::string &componentNameIn, G4double rigidityIn)
	ACRegistryKey (const ACRegistryKey &other)=default
bool	operator== (const ACRegistryKey &other) const

Data Fields
std::string	componentName
	Has to be std::string for hashing as G4String doesn't provide one.
G4double	rigidity

Static Public Attributes
static G4double	tolerance = 1e-7

Friends
std::ostream &	operator<< (std::ostream &out, ACRegistryKey const &k)

Detailed Description

custom key class for pair of <name,rigidity>.

We want to store a map of (name,rigidity) but compare rigidity with a numerical tolerance as it's a double. std::map requires the less than operator so we'll use unordered_map that uses ==.

This class is a pair but with == specialised. Also, we provide a hash function (specialisation for the template).

Author

Laurie Nevay

Definition at line 45 of file BDSAcceleratorComponentRegistry.hh.

Constructor & Destructor Documentation

ACRegistryKey() [1/2]

ACRegistryKey::ACRegistryKey

(

)

Definition at line 40 of file BDSAcceleratorComponentRegistry.cc.

ACRegistryKey() [2/2]

ACRegistryKey::ACRegistryKey	(	const std::string &	componentNameIn,
		G4double	rigidityIn
	)

Definition at line 45 of file BDSAcceleratorComponentRegistry.cc.

Member Function Documentation

operator==()

bool ACRegistryKey::operator==

(

const ACRegistryKey &

other

)

const

Definition at line 51 of file BDSAcceleratorComponentRegistry.cc.

Friends And Related Symbol Documentation

operator<<

std::ostream & operator<< ( std::ostream &  out, ACRegistryKey const &  k  )

friend

Definition at line 58 of file BDSAcceleratorComponentRegistry.cc.

Field Documentation

componentName

std::string ACRegistryKey::componentName

Has to be std::string for hashing as G4String doesn't provide one.

Definition at line 55 of file BDSAcceleratorComponentRegistry.hh.

Referenced by std::hash< ACRegistryKey >::operator()().

rigidity

G4double ACRegistryKey::rigidity

Definition at line 56 of file BDSAcceleratorComponentRegistry.hh.

tolerance

G4double ACRegistryKey::tolerance = 1e-7

static

Definition at line 57 of file BDSAcceleratorComponentRegistry.hh.

---

The documentation for this class was generated from the following files:

• /__w/bdsim/bdsim/include/BDSAcceleratorComponentRegistry.hh
• /__w/bdsim/bdsim/src/BDSAcceleratorComponentRegistry.cc
